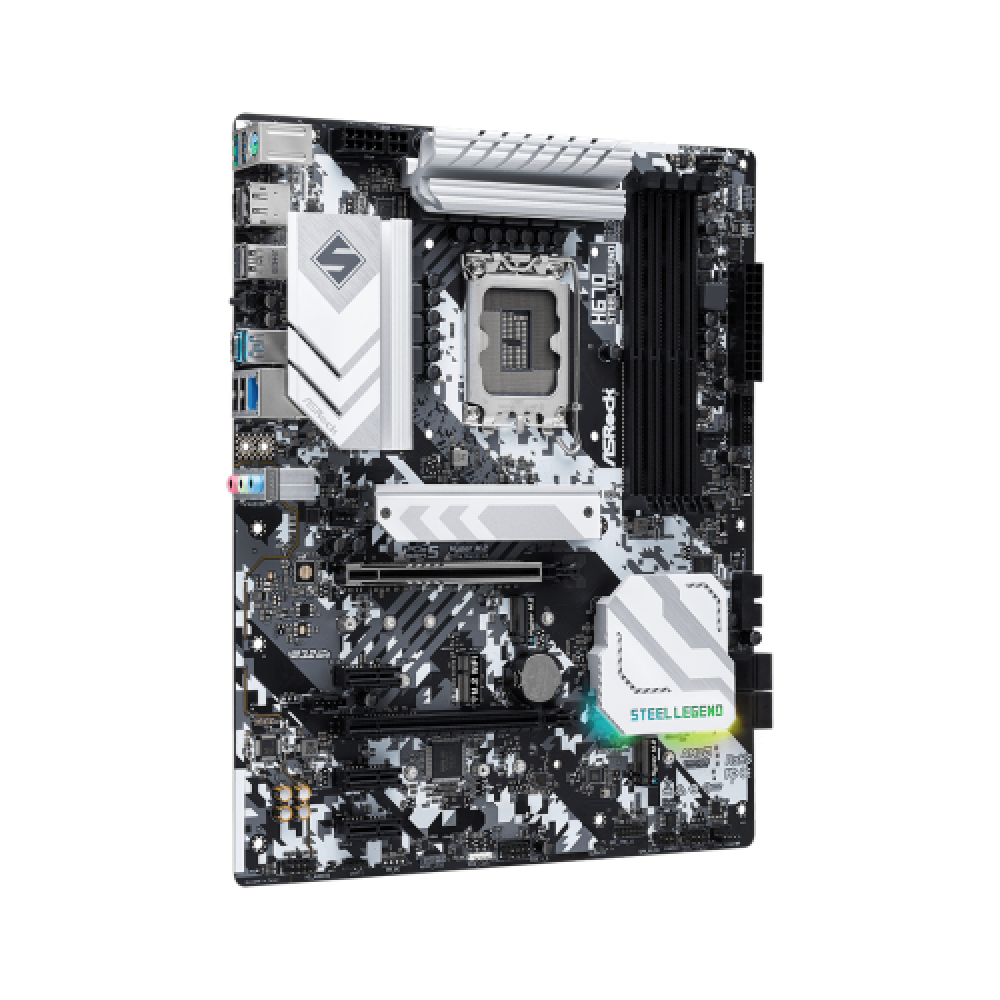

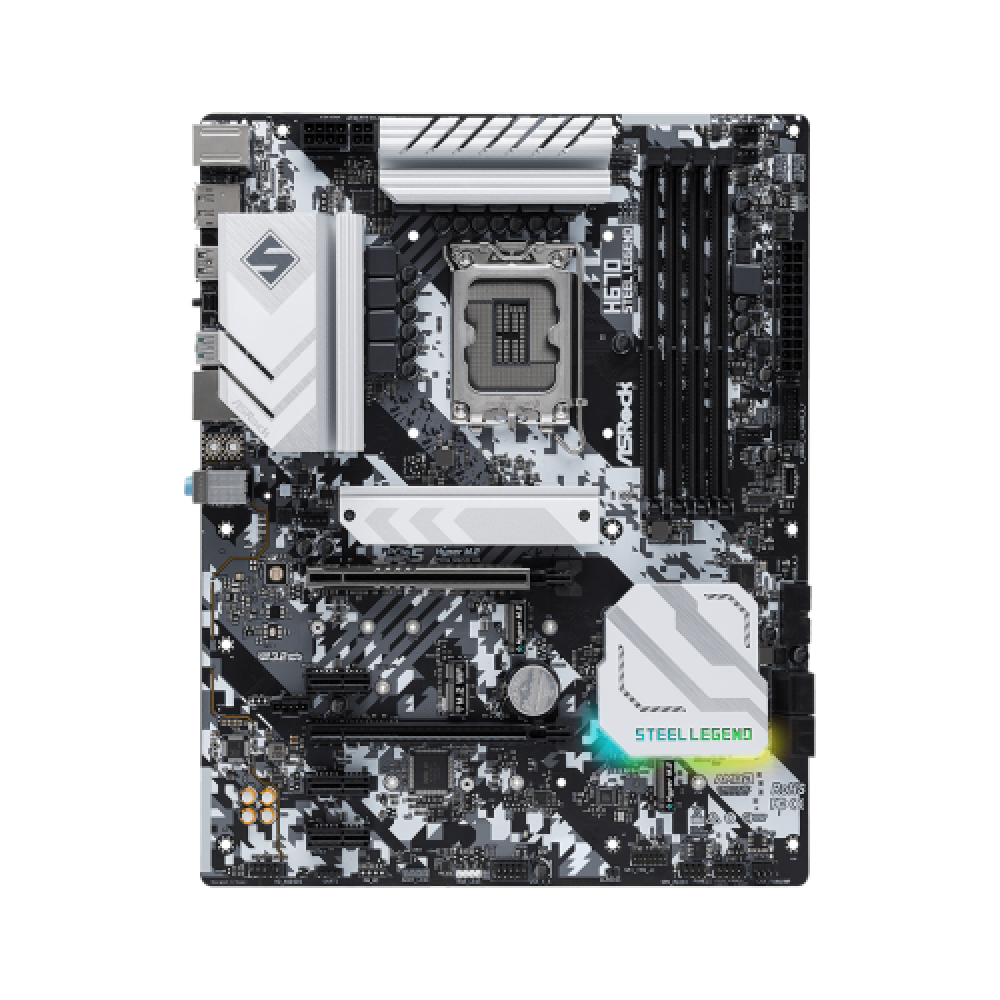

ASROCK H670 Steel Legend LGA1700 4x DDR4 DIMM HDMI DP 1xPCIe 5.0 x16 1xPCIe 4.0 x16 3xPCIe 3.0 x1 H670 STEEL LEGEND
Conectivitate
| Audio jacks | 3 |
| BIOS Flashback | Da |
| Conectori speciali | 3 x Puncte Montare Antena |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 4 |
| USB 3.2 Gen1 tip A | 2 |
| USB 3.2 Gen2 tip A | 1 |
| USB tip C | 1 x USB 3.2 Gen 2 tip C |
General
| BIOS | 128Mb AMI UEFI Legal BIOS |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Dragon RTL8125BG |
| Interfata grafica | PCI Express x16 5.0 |
| NGFF (M.2) | 3 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897 |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | H670 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| Multi-GPU CrossfireX | Suporta AMD 2-Way CrossFire |
| PCI Express 4.0 | 1 (x16) |
| PCI Express 5.0 | 1 (x16) |
| PCI Express x1 | 3 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
