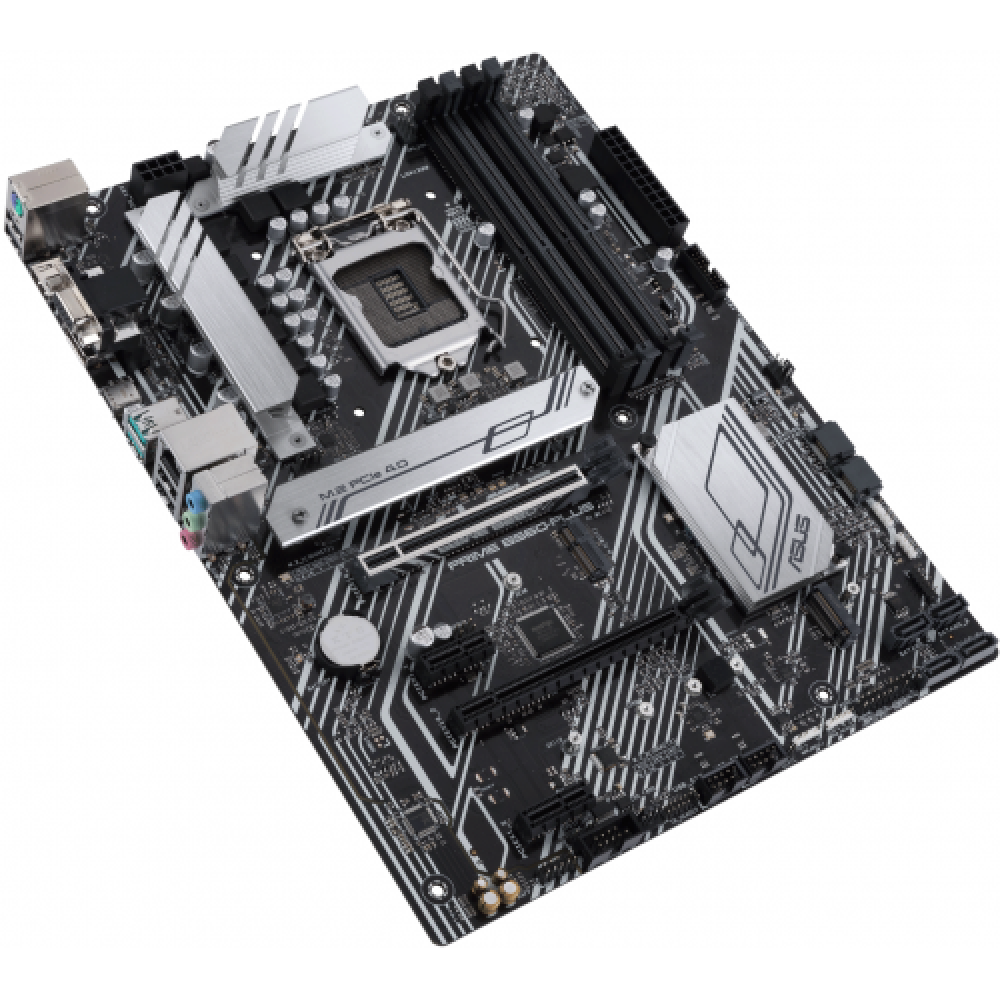

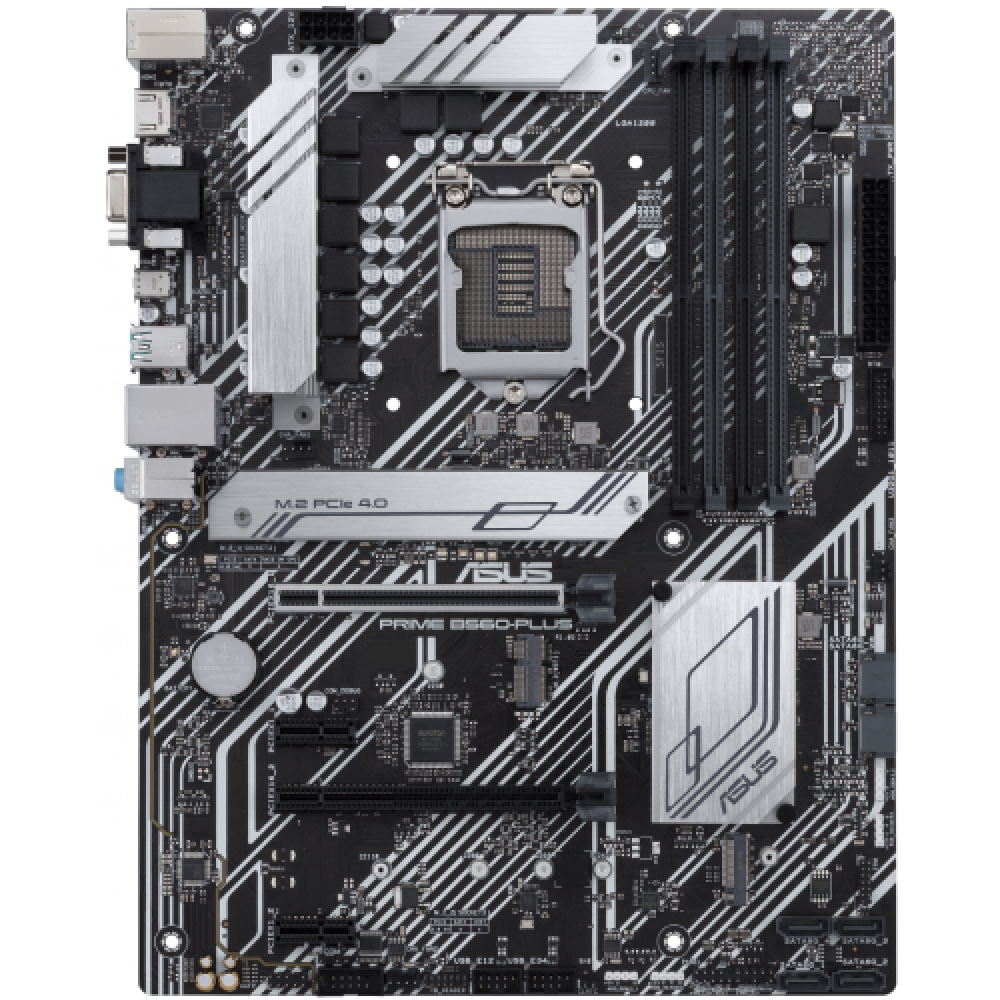

Intel B560 | LGA1200 | ATX | 2xPCI-Express 3.0 1x | 1xPCI-Express 3.0 4x | 1xPCI-Express 4.0 16x | 2xM.2 | DDR4 | 4600/4400/4266/4000/3733/3600/3466/3333/3200/2933/2800/2666/2400/2133 MHz | Memory slots 4 | 1x15pin D-sub | 1xHDMI | 1xDisplayPort | 2xAudio-In | 1xAudio-Out | 4xUSB 2.0 | 1xUSB type C | 2xUSB 3.2 | 1xPS/2 | 1xRJ45 | SATA | Video | LAN Gigabit | Audio Realtek ALC897 | TPM Header
Conectivitate
| Audio jacks | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 4 |
| USB 3.0 | 1x USB Type-C |
| USB 3.1 tip A | 2 |
| VGA | 1 |
General
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Intel I219-LM |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B560 |
| CPU Socket | 1200 |
| Procesoare suportate | Intel 11th Generation Core/Pentium/Celeron Intel 10th Generation Core/Pentium/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 3.0 | 1 (x4) |
| PCI Express 4.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 23.4 cm |
| Format | ATX |
