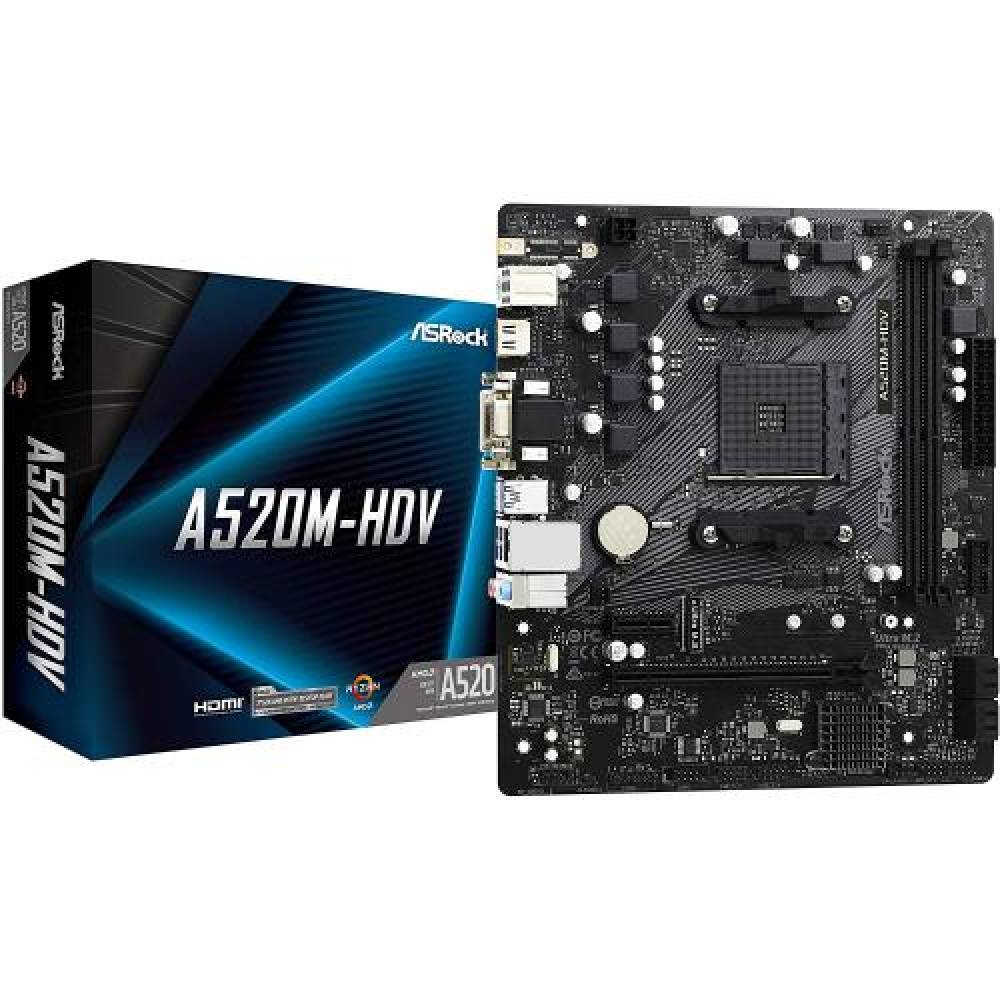

ASROCK A520M-HDV AM4 2xDDR4 4xSATA3 1xUltra M.2 1xPCIe 3.0x16 1xPCIe 3.0 x1 D-Sub DVI-D HDMI 7.1 CH HD Audio mATX MB A520M-HDV
Conectivitate
| Audio jacks | 3 |
| DVI | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 2 |
| USB 3.0 | 4 |
| VGA | 1 |
General
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Chipset audio | Realtek ALC887 |
| Chipset retea | Realtek RTL8111H |
| Interfata grafica | PCI Express x16 3.0 |
| NGFF (M.2) | 1x M.2 (2242/2260/2280) |
| Placa audio integrata | 7.1 Audio with Realtek ALC887 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 x SATA 6.0Gb/s |
Memorie
| Capacitate maxima memorie RAM | 64 GB |
| Frecvente suportate | 4733+(O.C) / 4600+(O.C) / 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3733(O.C) / 3600(O.C) / 3466(O.C) / 3400(O.C) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Model memorie | DDR4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | A520 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| Producator chipset | AMD |
Sloturi
| Header USB 3.0 | 1x USB 3.2 Gen 1 2 x USB 2.0 Header |
| PCI Express 3.0 | 1 (x16) |
| PCI Express x1 | 1 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 23.0 x 20.1 cm |
| Format | mATX |
