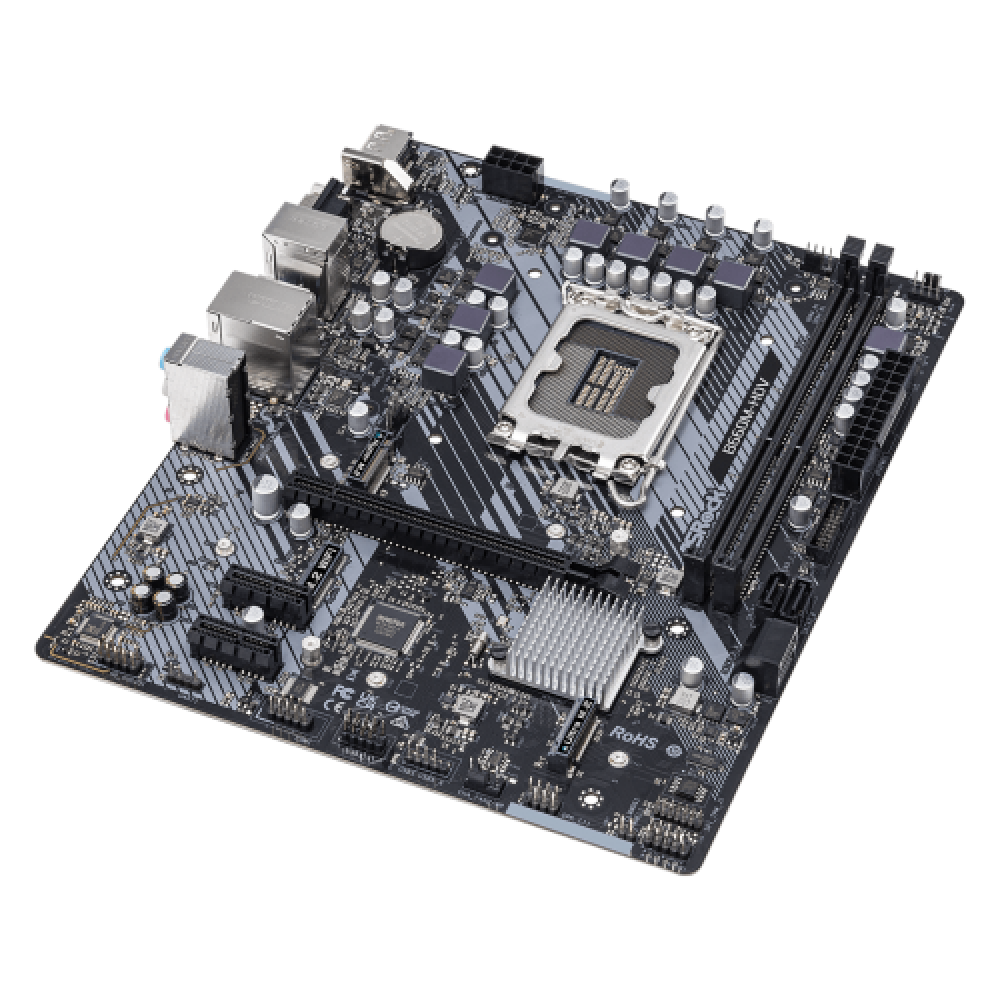

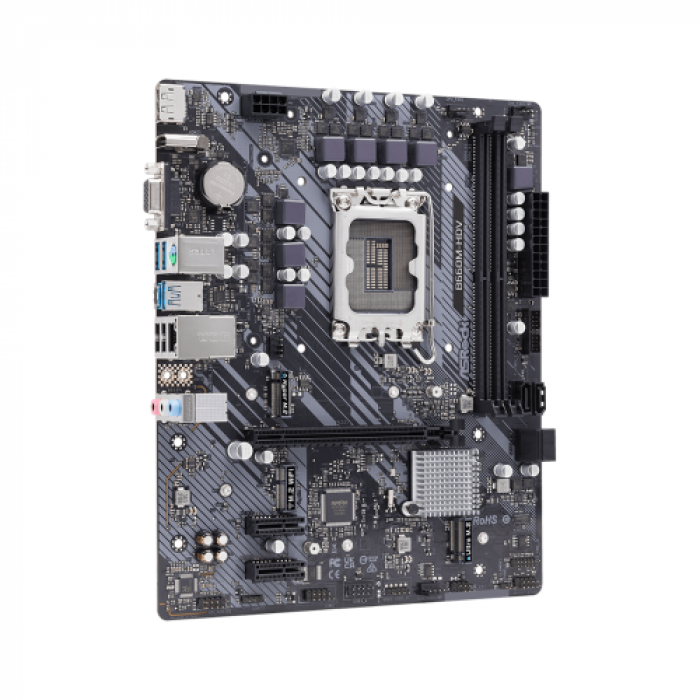

ASROCK B660M-HDV LGA1700 2x DDR4 DIMM HDMI DP D-Sub 1xPCIe 4.0 x16 2xPCIe 3.0 x1 B660M-HDV
Conectivitate
| Audio jacks | 3 |
| Conectori speciali | 2 x Puncte Montare Antena |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 3 |
| USB tip C | 1 x USB 3.2 Gen 1 tip C |
| VGA | 1 |
General
| BIOS | 128Mb AMI UEFI Legal BIOS |
| Chipset audio | Realtek ALC897/887 |
| Chipset retea | Intel I219V |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897/887 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 64 GB |
| Frecvente suportate | 5066(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 2 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B660 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 4.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 24.4 x 20.1 cm |
| Format | mATX |
