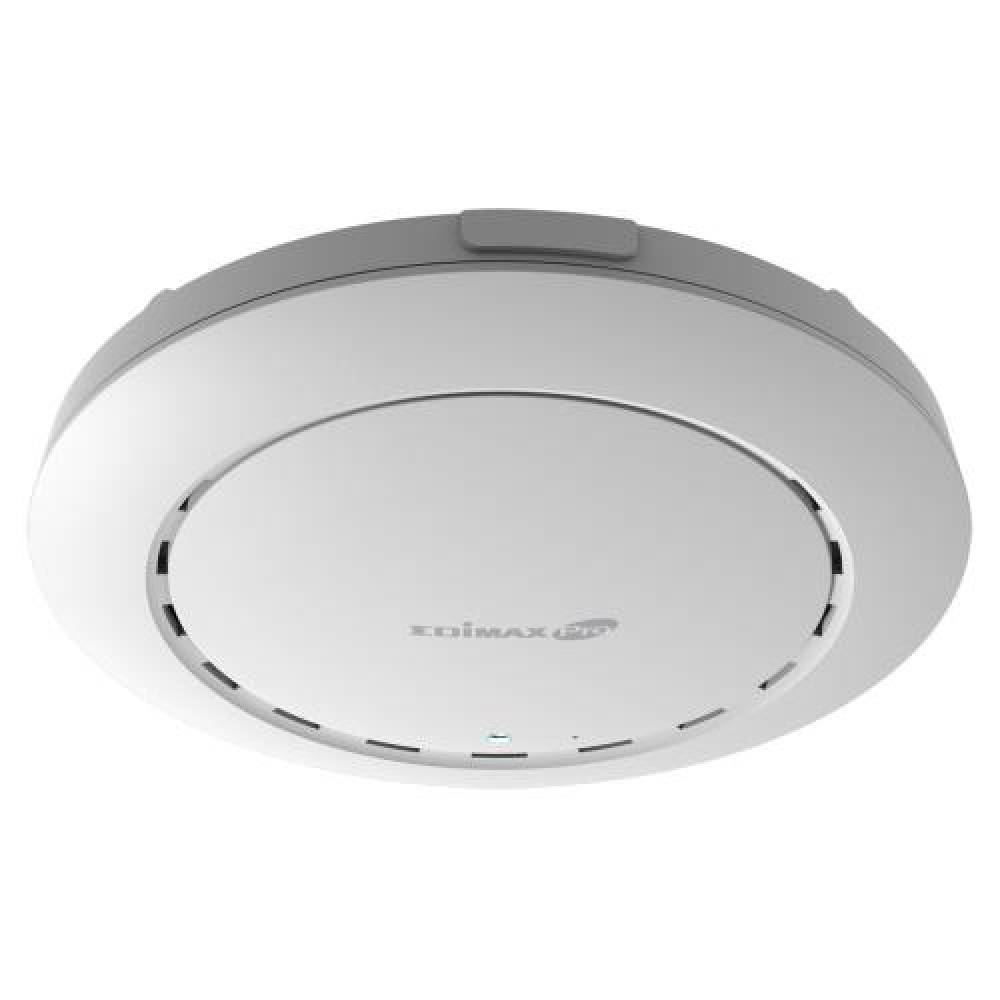

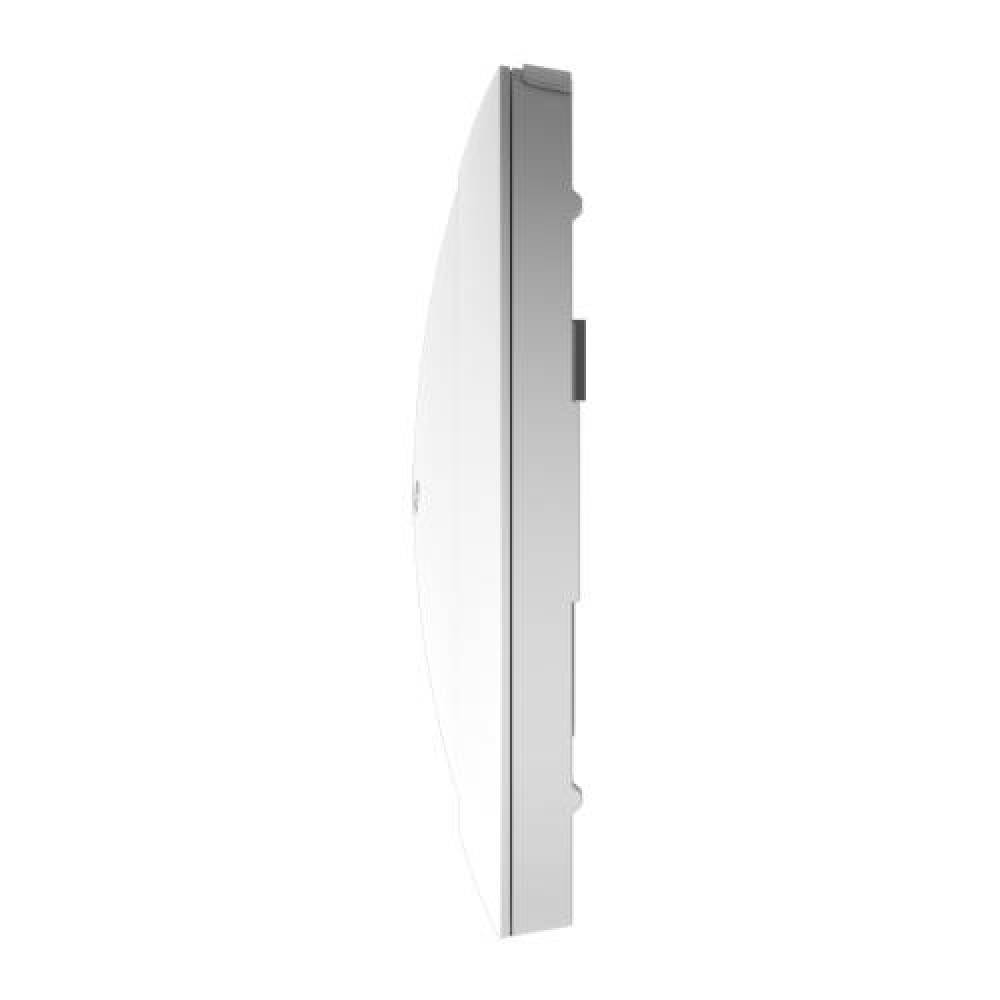

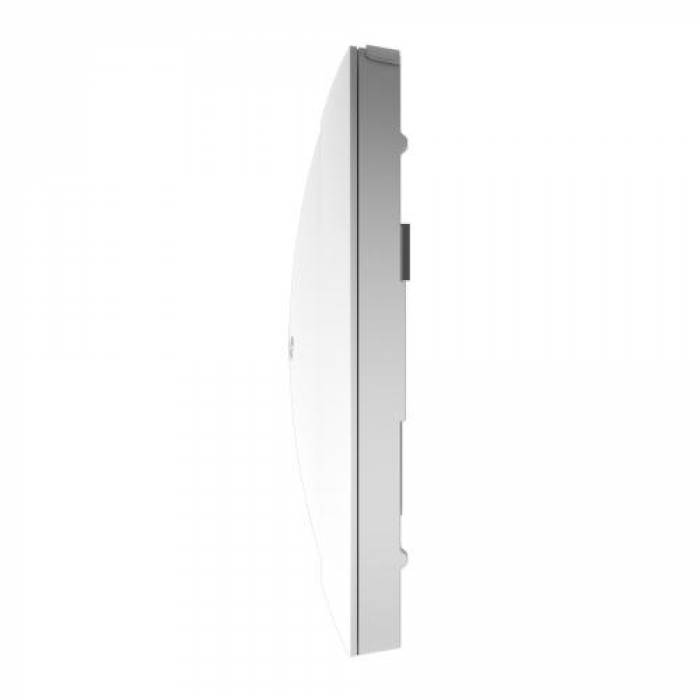

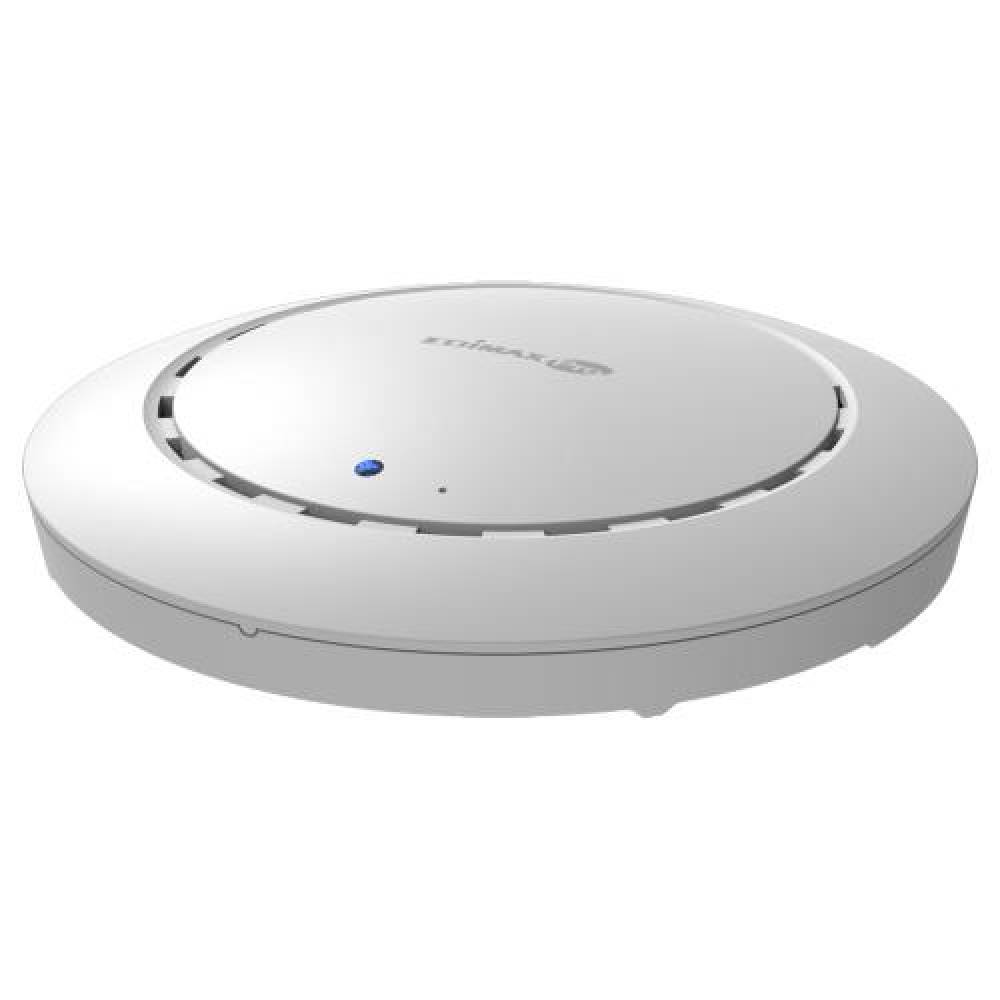

Edimax CAP1300 2 x 2 AC1300 Wave 2 Dual-Band Ceiling-Mount PoE Access Point CAP1300
Caracteristici generale
| Alimentare | DC: 12V / 1A Power Adapter 802.3af (PoE Injector Optional) |
| Antena | Interna |
| Culoare | Alb |
| Dimensiuni | 176 x 32 mm |
| Dual Band | Da |
| Frecventa WiFi | 2.4 GHz 5 GHz |
| Functii LED | Power LED, Diag LED |
| Greutate | 342 g |
| Management | Deployment: Standalone (AP Mode), Master AP Mode: Can manage 16 Edimax Pro APs with NMS, Managed AP Mode: Be managed by AP Controller (APC500), Edimax Pro Master AP with NMS software HTTP / HTTPS SNMP v1, v2c, v3 CLI (Telnet, SSH) |
| Modulatie | MCS15, MCS14, MCS13, MCS12, MCS11, MCS10, MCS9, MCS8, MCS7, MCS6, MCS5, MCS4, MCS3, MCS2, MCS1, MCS0 |
| Pack | Nu |
| PoE | 802.3af |

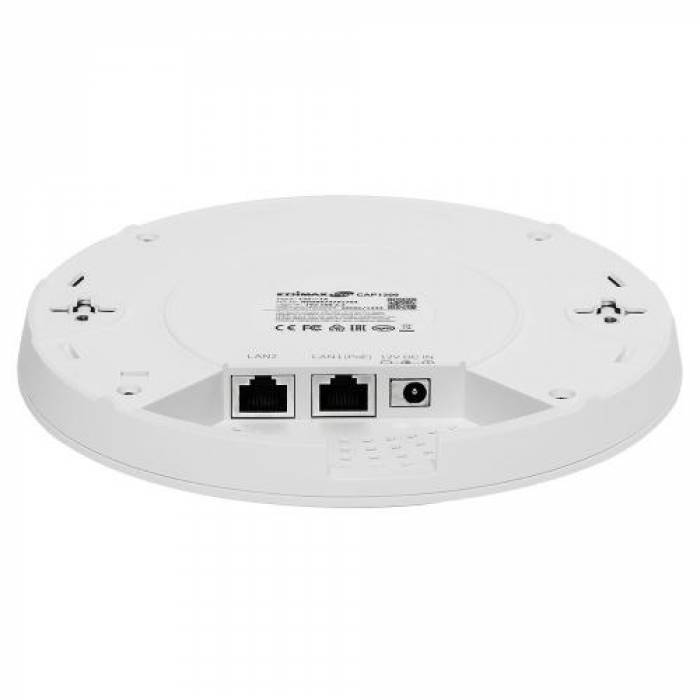

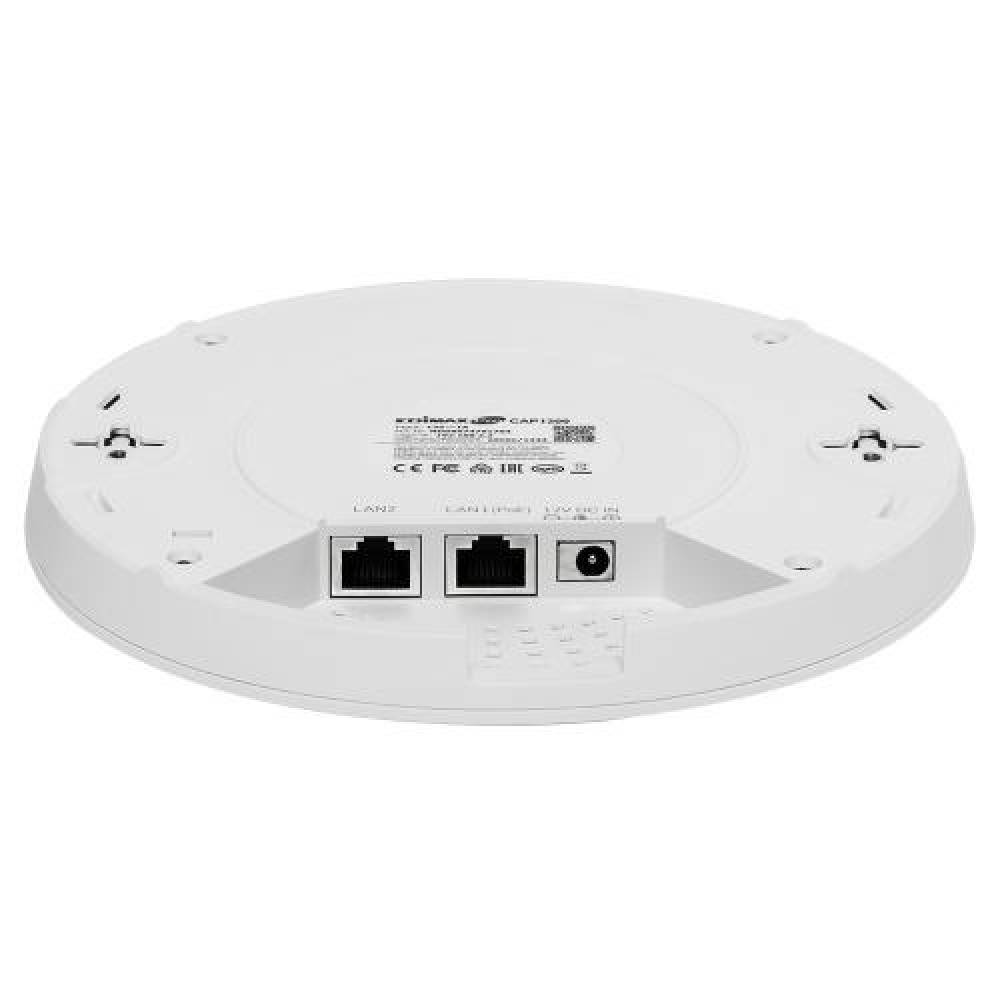

| Port LAN | 2x RJ45 |
| Protocoale suportate | Wireless Mode: AP / WDS AP / WDS Bridge / Client 802.1q VLAN Spanning Tree RSTP QoS WMM (802.11e) Max Associated Station No Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec) DSCP (802.1p) |
| Putere antena | 2.4 GHz: 4 dBi 5 GHz: 5 dBi |
| Putere consumata | 11 W |
| Rata de transfer WiFi | 1300 Mbps 2.4 GHz: 400 Mbps 5 GHz: 867 Mbps |
| Securitate | WEP / WPA / WPA2 Wireless L2 Isolation Station Isolation IEEE 802.1x Authenticator EAP Authentication: PEAP Hidden SSID MAC Address Filter Wireless STA Rogue AP Detection (w/ NMS) |
| Standarde IEEE 802.3 | IEEE 802.3af |
| Standarde WiFi | IEEE 802.11a/b/g/n/ac |
| Tip antena | 4x PIFA |
| Utilizare exterior | Nu |
| Viteza Transfer LAN | 10/100/1000 Mbps |
