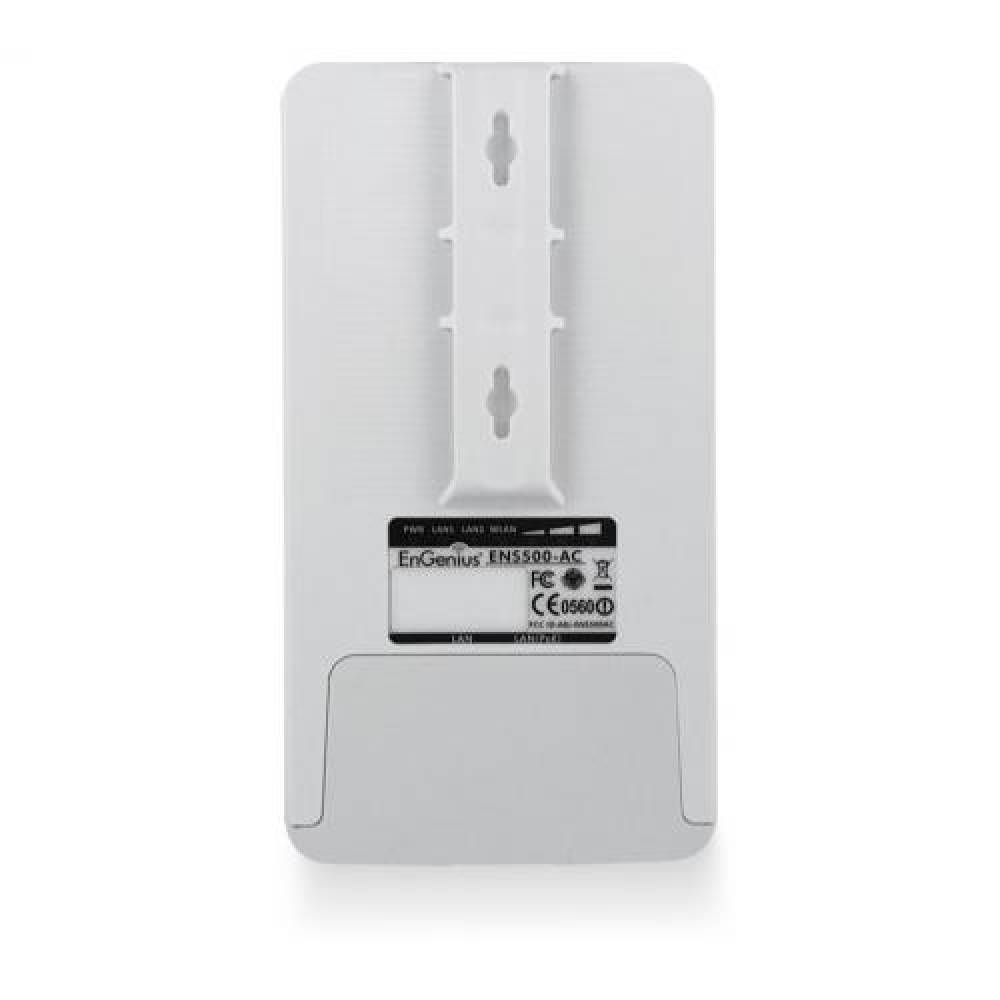

Outdoor CB/AP 11ac Wave 2 867M 2T2R 11dBi DP Panel 2GbE pPoE IP55 (Access Point, PoE Adapter (EPA2406GP), Power cord, Wall mount screw set, pole clamp, Quick Installation Guide.)
Caracteristici generale
| Alimentare | 24V Proprietary PoE Link Aggregation Achieves 2 Gbps Throughput |
| Antena | Interna |
| Culoare | Alb |
| Dimensiuni | 186 x 100 x 29 mm |
| Dual Band | Nu |
| Frecventa WiFi | 5 GHz |
| Functii LED | Power, LAN1, LAN2, WLAN, Signal |
| Greutate | 290 g |
| Management | Multiple BSSID: Supports 8 SSIDs Supports 802.1q SSID-to-VLAN Tagging Cross-Band VLAN Pass-Through Management VLAN Supports 802.1d Spanning Tree Protocol QoS Compliant with IEEE 802.11e Standard WMM SNMP v1, v2c, v3 MIB I/II, Private MIB Stand-Alone (Individually Managed) Managed Mode (w/ezMaster/Neutron Series Switch) Auto Channel Selection Auto Transmit Power Wireless STA (Client) Connected List Guest Network Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold Traffic Shaping VLANs for Access Point – Multiple SSIDs Backup/Restore Settings Auto Reboot E-Mail Alert Site Survey Save Configuration as Default AP Auto-Discovery & Provisioning AP Auto IP Assignment AP Group Management Auto AP Rebooting AP Device Name Editing AP Radio Settings Traffic Shaping Fast Roaming (802.11k & 802.11r) Pre-Authentication (802.11i, 802.11x) PMK Caching (802.11i) RSSI Threshold Client Fingerprinting AP VLAN Management VLANs for AP – Multiple SSIDs Secure Control Messaging (SSL Certificate) Local MAC Address Database Remote MAC Address Database (RADIUS) Unified Configuration Import/Export Bulk Firmware Upgrade Capability One-Click Update, Intelligent Diagnostics, Kick/Ban Clients, Wi-Fi Scheduler Managed Mode (w/Neutron Switch/ezMaster) Distance Control (ACK Timeout) Multicast Supported, Wi-Fi Scheduler Client Traffic Status, RADIUS Accounting (802.1x) Power Save Mode (U-APSD Support), CLI Support, HTTPS |
| Modulatie | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Pack | Nu |
| PoE | Active PoE |
| Port LAN | 2x RJ45 |
| Procesor | Qualcomm 717 MHz Quad-Core CPU, 4x ARM Cortex A7 |
| Putere antena | 14 dBi |
| Putere consumata | 7.5 W |
| Rata de transfer WiFi | 867 Mbps |
| Securitate | WEP Encryption 64/128/152 bit WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES) Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation |
| Standarde WiFi | IEEE 802.11a/n/ac |
| Tip antena | Directional High-Gain |
| Utilizare exterior | Da |
| Viteza Transfer LAN | 10/100/1000 Mbps |
