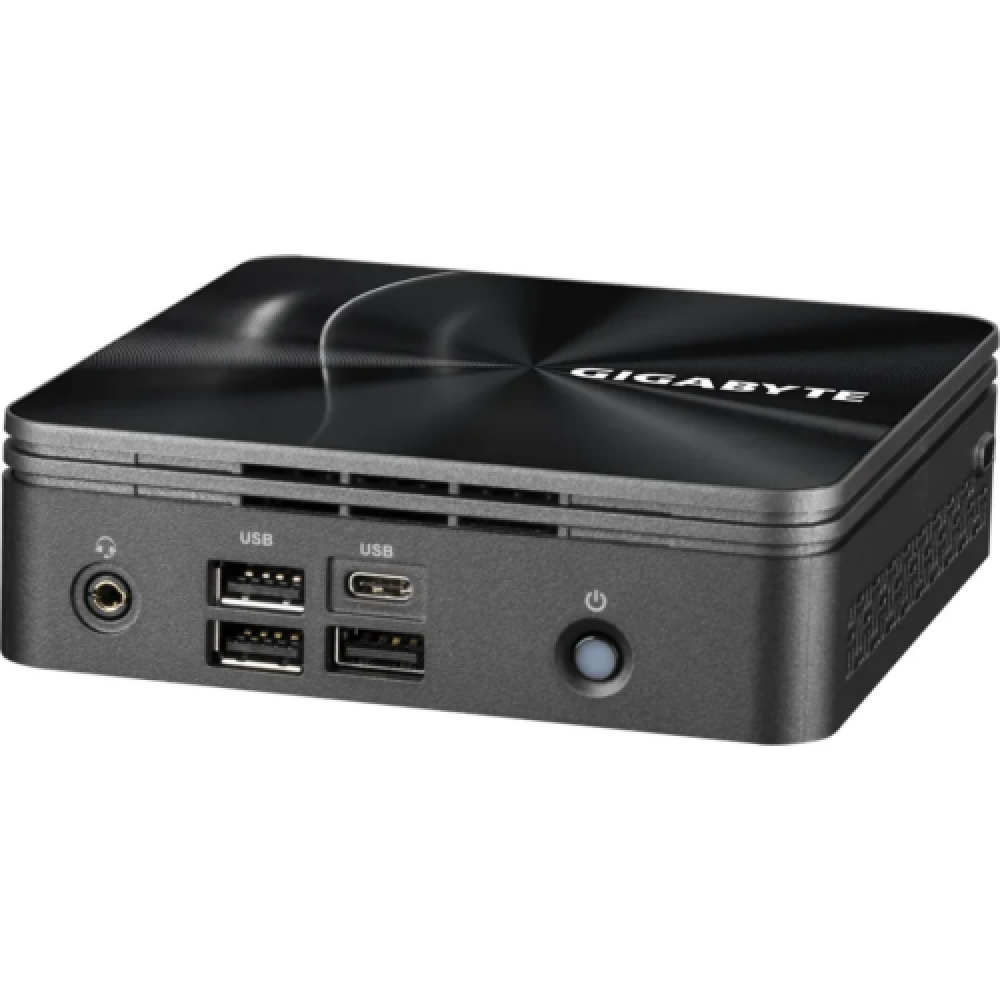

High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm),Ultra compact PC design in 2 size (Slim /HDD),AMD RYZEN R3-4300U, 2.0G~4.1G Turbo, 4C/4T,15W,Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3),1 x M.2 SSD (2280) slot support PCI-e x4 /SATA,2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB,Intel WIFI6 +BT5.1,Realtek 2.5G LAN RTL8125,QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P,RS232 COM port in HDD version 5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R),Realtek ALC255 Codec,Headphone Jack,VESA Mounting Bracket (75 x 75mm + 100 x 100mm),AC-DC adapter : 100-240V input, 19V/135W,OS Support : Microsoft Windows 10 64Bit,1x Kensington Lock slot,System Environment,Operating Temperature: 0°C to +35°C,System Storage Temperature: -20°C to +60°C,Option Daughter board support, 2nd COM port + LAN
Audio
| Chipset | Realtek |
| Model | ALC255 |
| Sunet | HD Audio |
Back Panel
| Display Port | 1x Mini Display Port |
| HDMI | 1 |
| Retea Ethernet (RJ-45) | 1 |
| USB 3.0 | 2 |
| USB Type C | 1x USB 3.2 type C (Gen2) w/ DP alt mode |
Carcasa
| Culoare | Negru |
| Dimensiune | 34.7 x 119.5 x 119.5 mm |
| Sloturi expansiune | 1x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
| Suport | VESA 100x100 mm VESA 75 x 75 mm |
| Sursa | 90 W sursa externa |
| Tip Carcasa | Smal Form Factor |
Conectivitate
| Bluetooth | 5.2 |
| LAN | 10/100/1000/2500 Mbps |
| Wireless | 802.11 ax |
Front Panel
| Casti | 1x Combo |
| USB 3.0 | 3 |
| USB Type C | 1x USB 3.2 type C (Gen2) w/ DP alt mode |
Memorie
| Compatibilitate DIMM | SO-DIMM |
| Compatibilitate RAM | non-ECC |
| Frecventa memorie | 3200 MHz |
| Memorie inclusa | Nu |
| Memorie maxima | 64 GB |
| Sloturi memorie | 2 |
| Tip memorie | DDR4 |
| Tip RAM | non-ECC |
| Tip sloturi memorie | SO-DIMM |
Monitor
| Monitor inclus | Nu |
Placa De Baza
| SATA III | 1 |
| Slot M.2 | 1x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
Procesor
| Cache | 2 MB Cache L2 4 MB Cache L3 |
| Familie procesor | Ryzen 3 |
| Frecventa procesor | 2.70 GHz |
| Frecventa turbo max | 3.70 GHz |
| Max TDP | 25 W |
| Model Procesor | 4300U |
| Nucleu | Renoir |
| Numar nuclee | 4 |
| Numar procesoare | 1 |
| Numar thread-uri | 4 |
| Procesor Grafic integrat | AMD Radeon Graphics |
| Producator procesor | AMD |
| Socket procesor | FP6 |
| Tehnologie | 7 nm |
Recomandat
| Recomandat | Small Office |
Securitate
| Kensington lock | Da |
Software
| Sistem de operare | No OS |
Stocare
| Slot M.2 | 1 |
| Stocare inclusa | Nu |
| Suport | Dispozitivul poate fi echipat cu 1 HDD/SSD 2.5inch |
Unitate optica
| Unitate optica | Nu are unitate optica integrata |
Video
| Familie placa video | Radeon Graphics |
| Producator placa video | AMD |
| Suport DirectX | 12 |
| Tip | Integrata |
