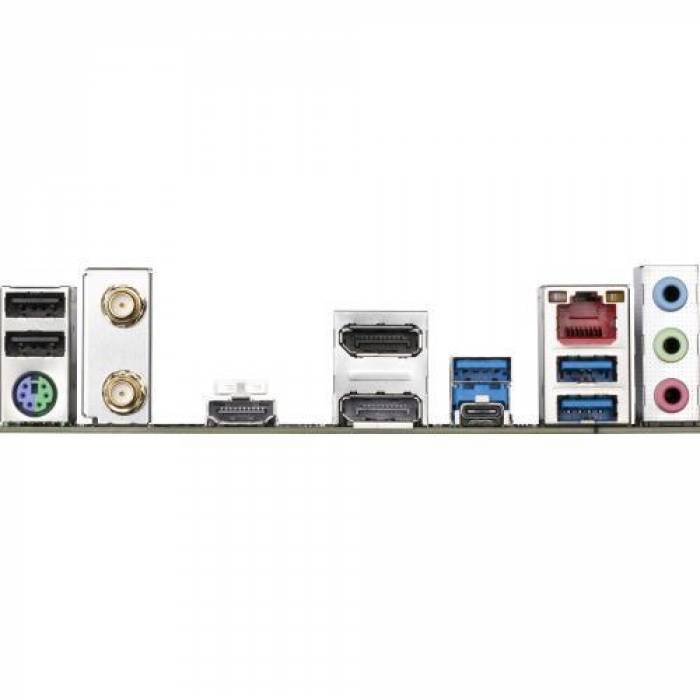

B760M DS3H DDR4 | Socket 1700 | 4x DDR4 DIMM (up to 128GB) | Audio Realtek ALC897 | 1 x Intel 2.5 GbE LAN | 1x PCI Express x16, 2 x PCI Express x1| 2x M.2 Socket 3, 4x SATA 6GB/s | 1 x USB Type-C® , with USB 3.2 Gen2, 3 x USB 3.2 Gen1 , 2 x USB 2.0/1.1, 2 x DisplayPort, 1 x HDMI,1 x RJ-45, 3 x audio jacks | Micro-ATX 24.4cm x 24.4cm
Conectivitate
| Altele | 1x D-sub |
| Audio jacks | 3 |
| BIOS Flashback | Da |
| DisplayPort | 2 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 3 |
| USB tip C | 1 |
General
| BIOS | 128Mb AMI UEFI BIOS |
| Chipset audio | Realtek |
| Chipset retea | Realtek 2.5GbE LAN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B760 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 3.0 | 2 |
| PCI Express 4.0 | 1 (x16) |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Format | mATX |
