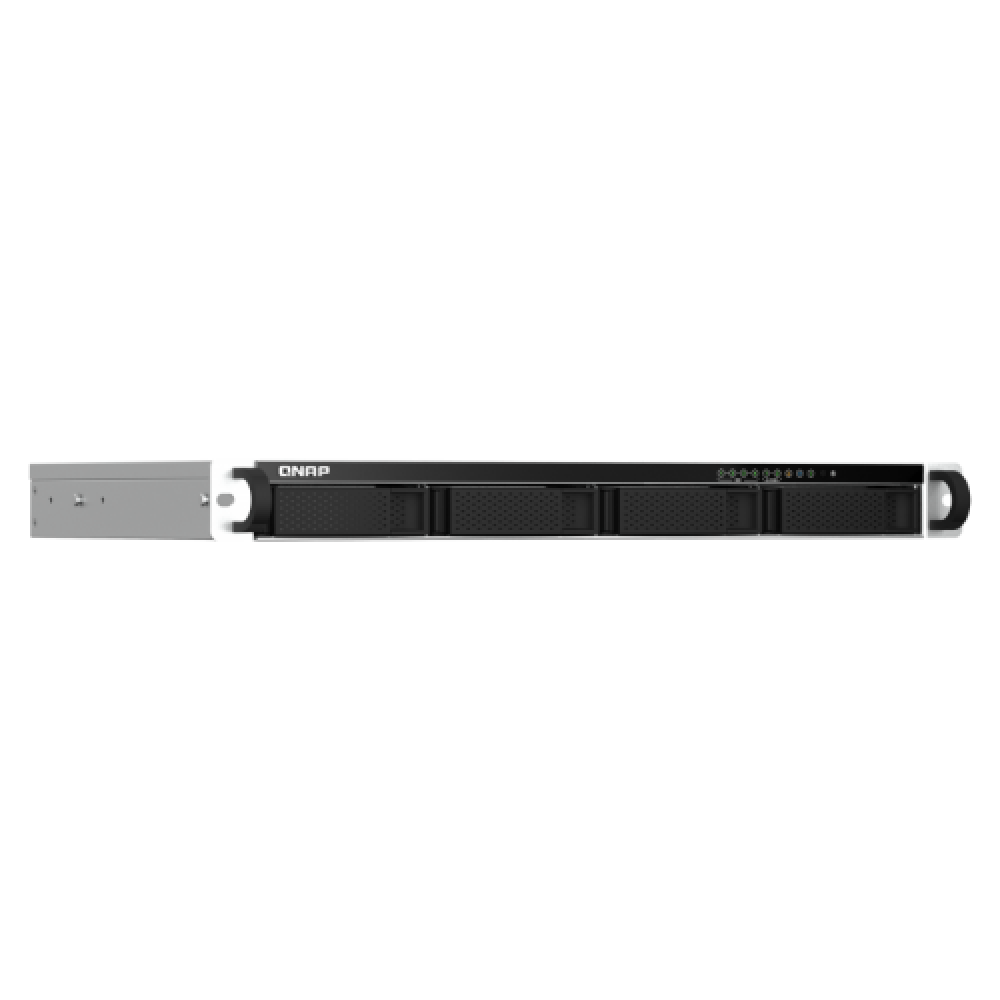

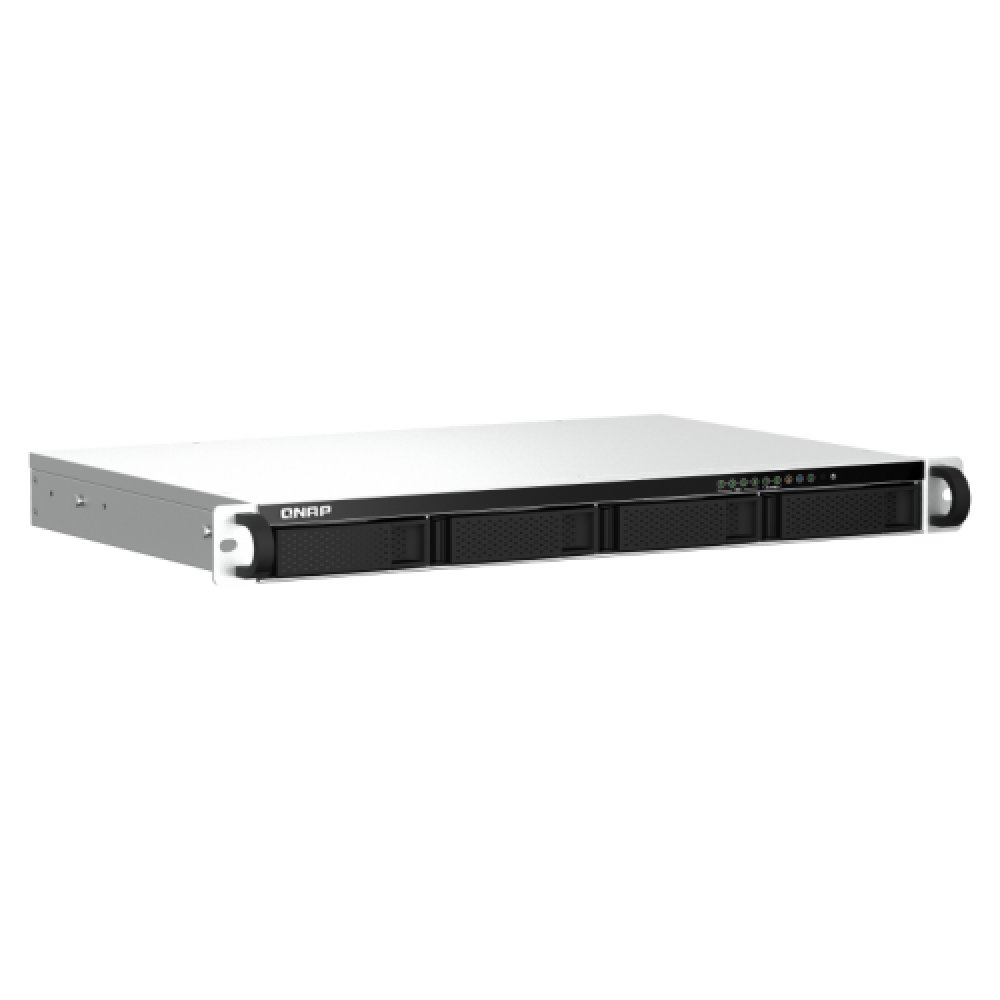

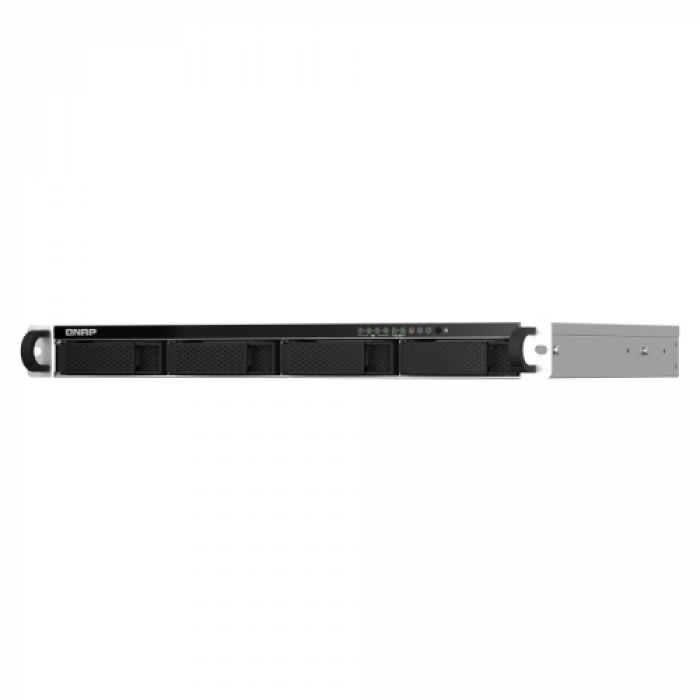

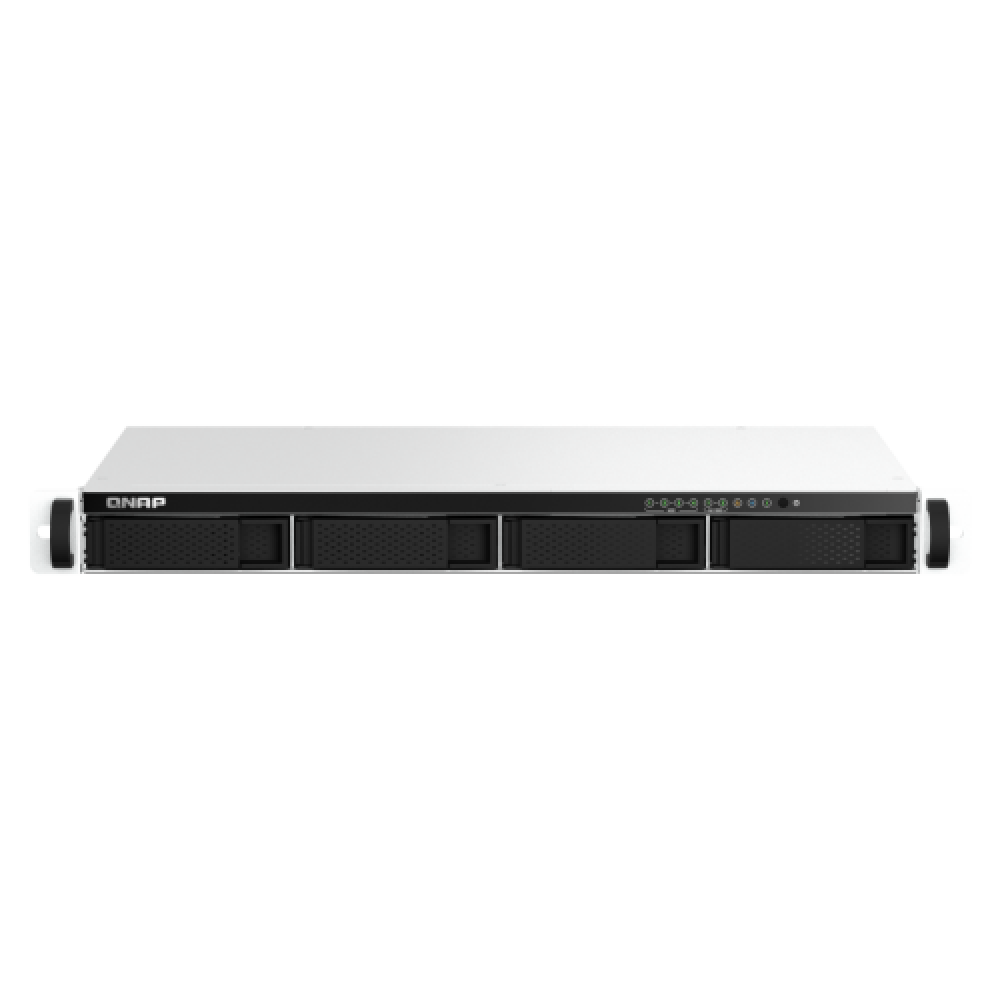

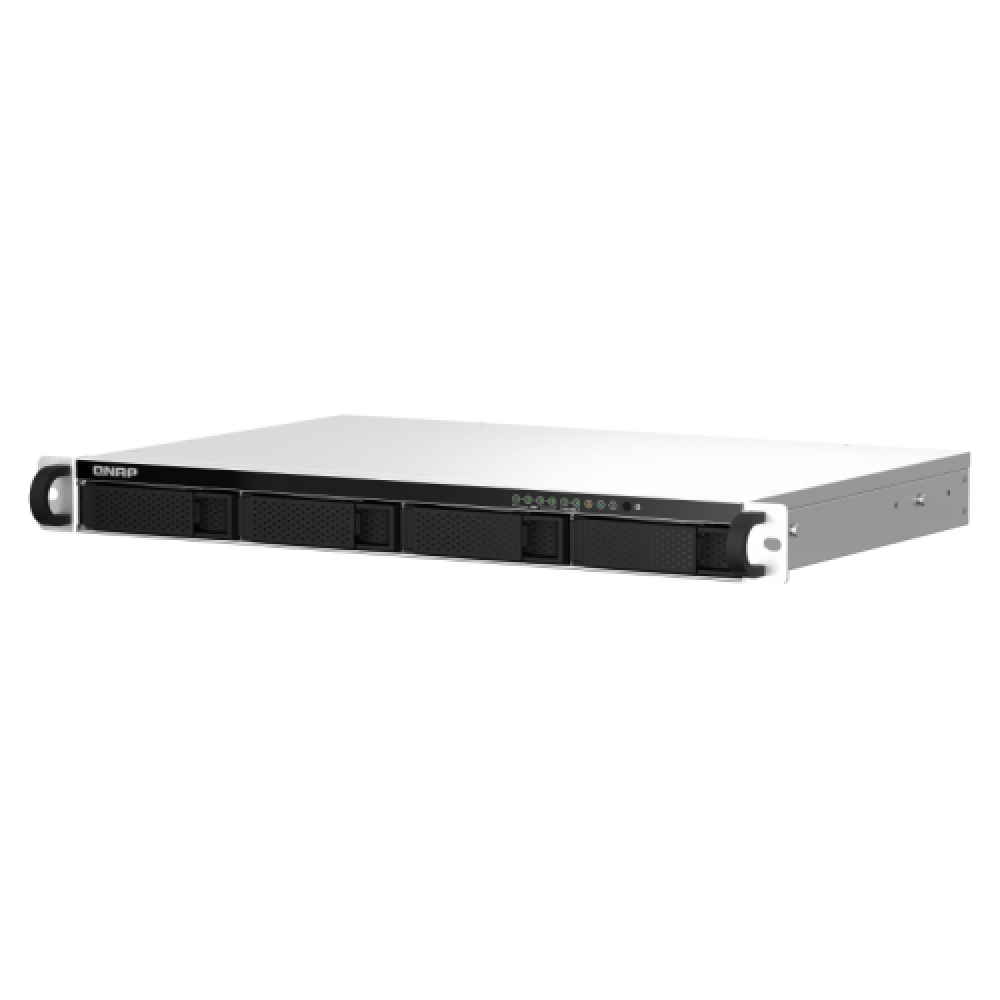

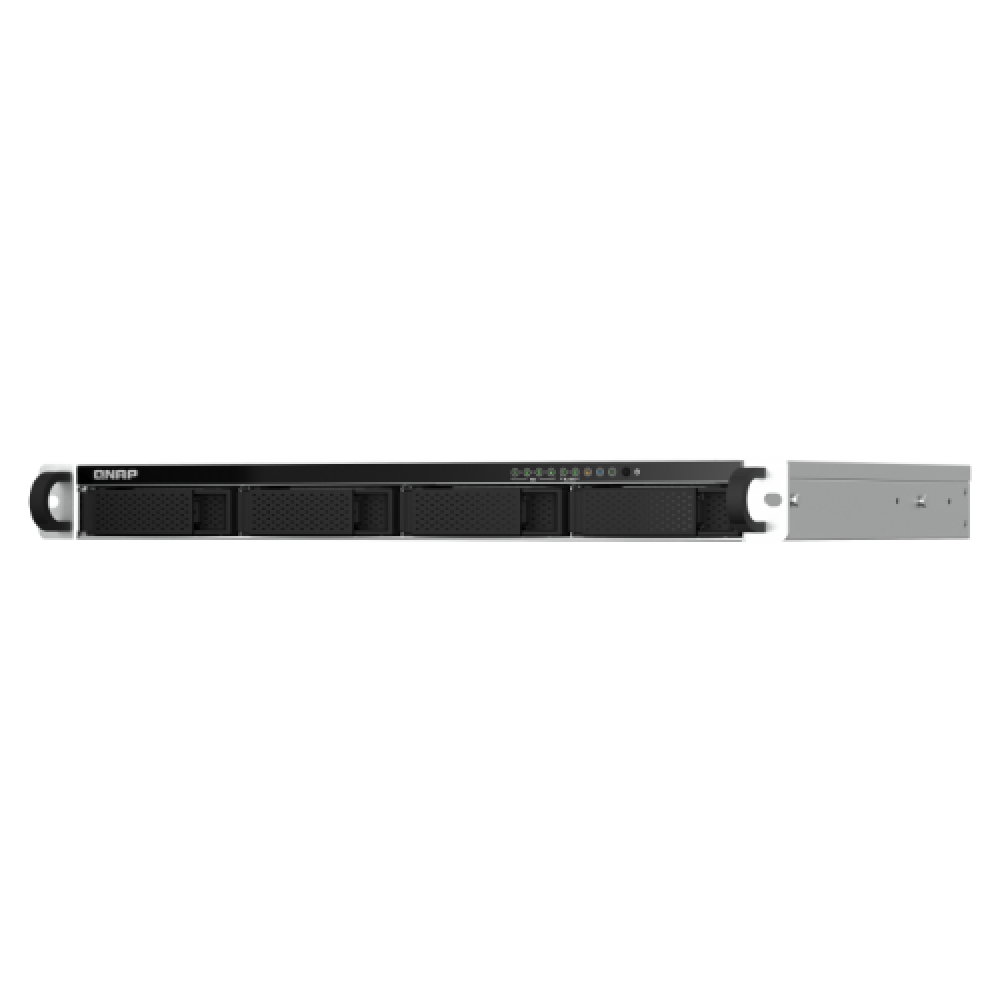

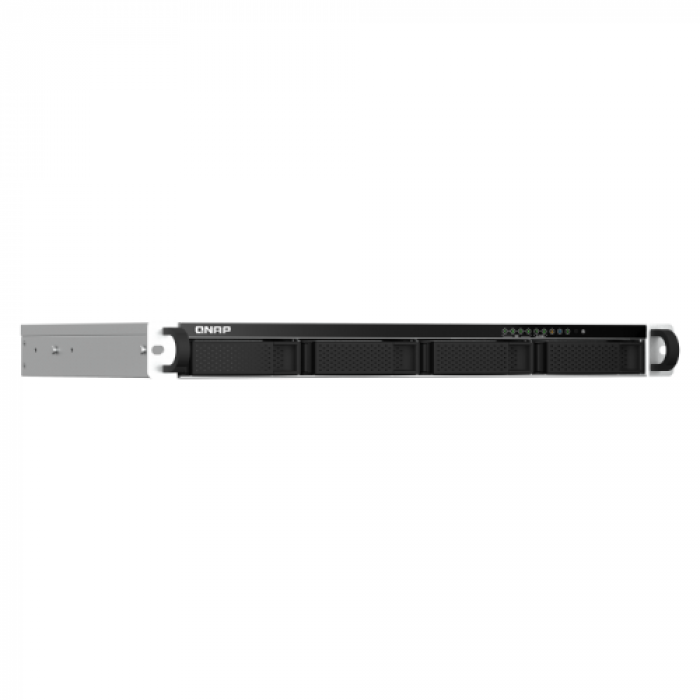

The TS-464eU is powered by Intel Celeron N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.
Caracteristici generale
| Accesorii incluse | Cablu Retea 2x Cablu alimentare 48x suruburi (pentru HDD 3.5) 36x suruburi (pentru HDD 2.5) 2x Hanger Ghid Instalare |
| Dimensiuni | 43.3 x 482.6 x 321.33 mm |
| Greutate | 4.35 kg |
| Putere consumata | 35.297 W |
Hardware
| Display | Nu |
| Form Factor | 1U |
| Frecventa procesor | 2.90 GHz |
| Memorie interna | 4 GB Flash |
| Memorie RAM | 1x 4 GB SODIMM DDR4 2 x Sloturi SODIMM DDR4 Memorie maxima 16 GB |
| Model Placa Video | Intel UHD Graphics |
| Model Procesor | Intel Celeron N5105/N5095 |
| Nuclee procesor | 4 |
| Securitate | AES-NI |
| Sursa | 100 W |
| Ventilator | 3 x 40 mm |

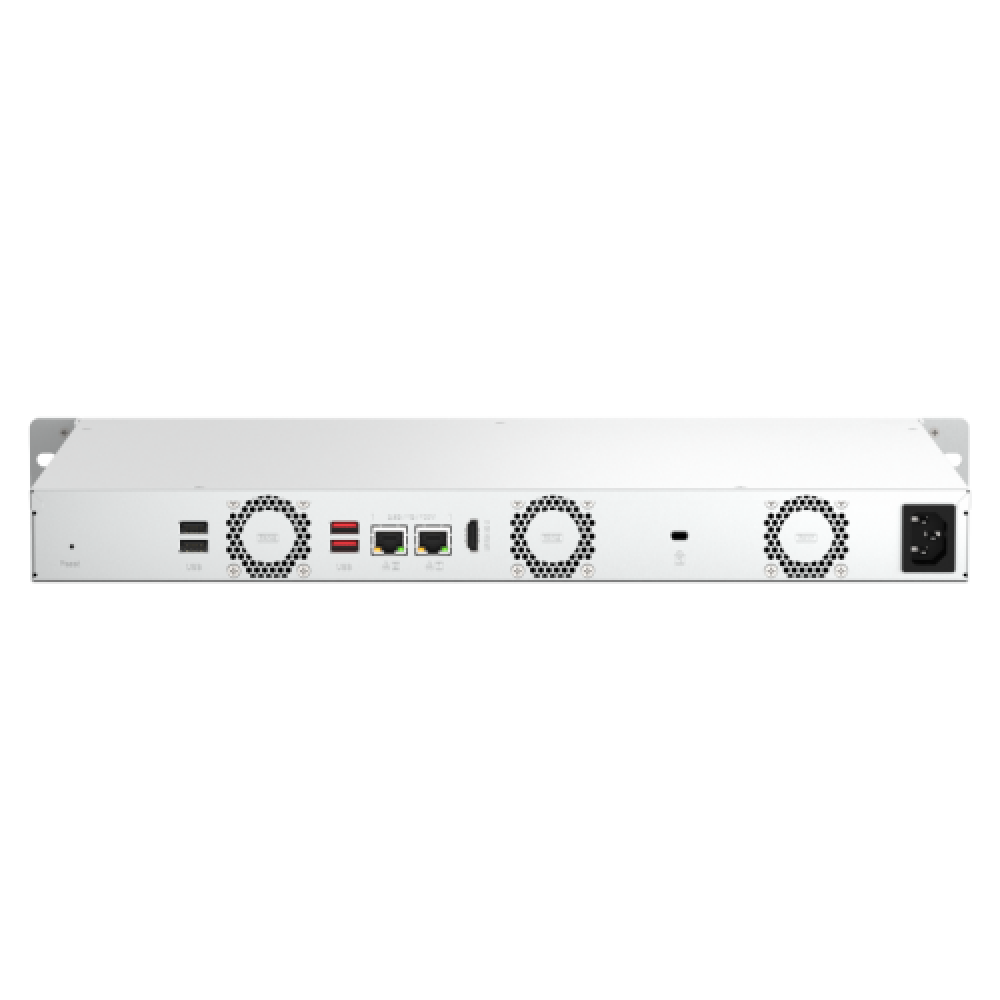

Porturi
| HDMI | 1 |
| USB 2.0 | 2 |
| USB 3.1 | 2 |
RAID
| JBOD | Da |
| RAID 0 | Da |
| RAID 1 | Da |
| RAID 10 | Da |
| RAID 5 | Da |
| RAID 50 | Da |
| RAID 6 | Da |
| RAID 60 | Da |
Retea
| Altele | Network File System v3 (NFS v3), Network File System v4 (NFS v4), DHCP, DDNS, Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Interfata LAN | 2 |
| Protocoale Retea | IPv4, IPv6, DHCP, SMB, DDNS, iSCSI |
| Viteza transfer LAN | 100/1000/2500 Mbps |
Stocare
| Altele | 2 x M.2 2280 PCIe Gen 3 x1 |
| Bay-uri HDD | 4 |
| Capacitate maxima HDD | 308 TB |
| Compatibilitate HDD bay | Hot-swappable |
| HDD inclus | Nu |
| Numar HDD suportat | 4 |
| Tip HDD suportat | HDD 3.5inch SSD/HDD 2.5 inch |
