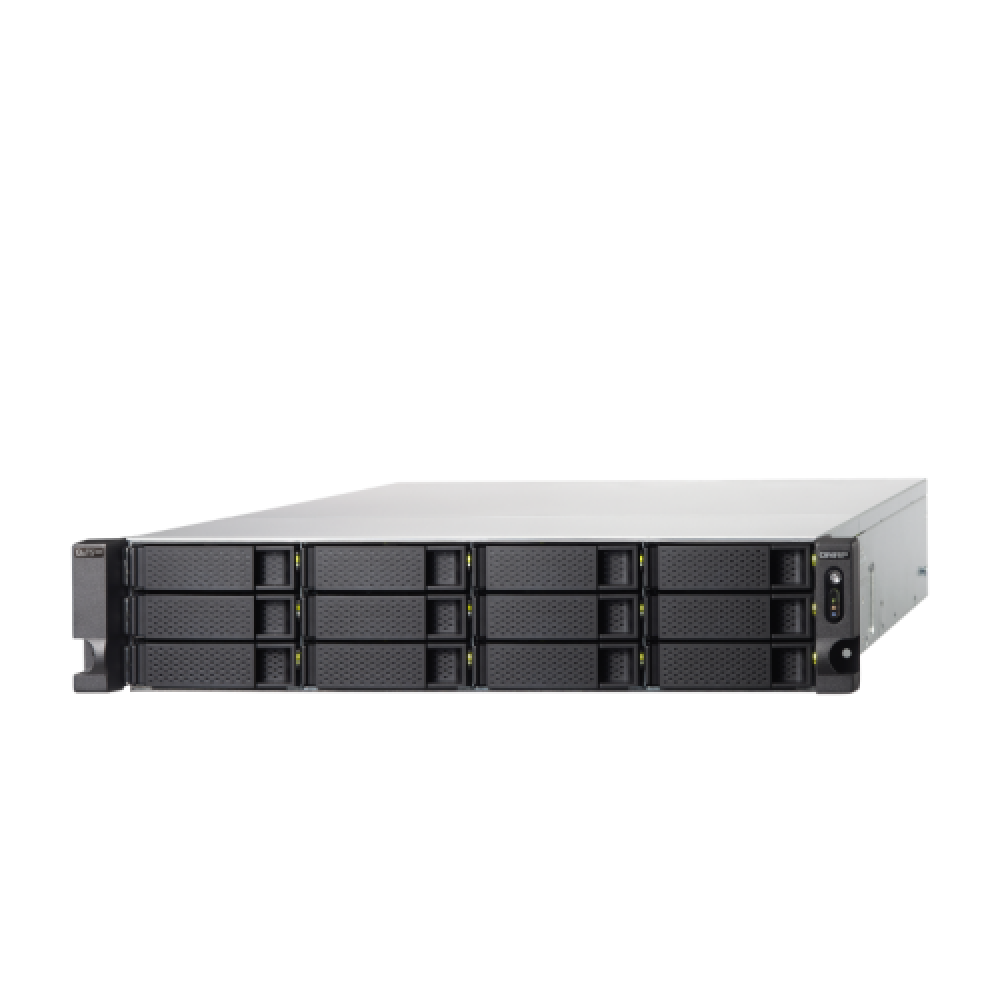

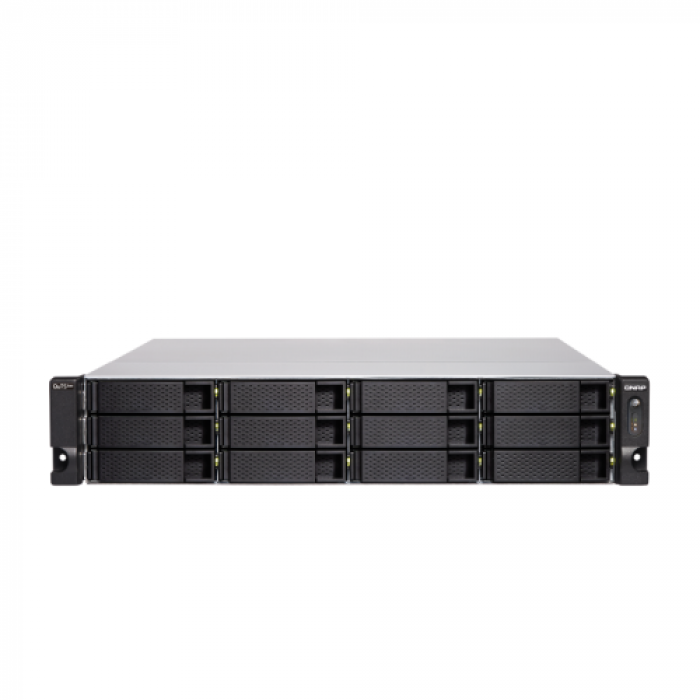

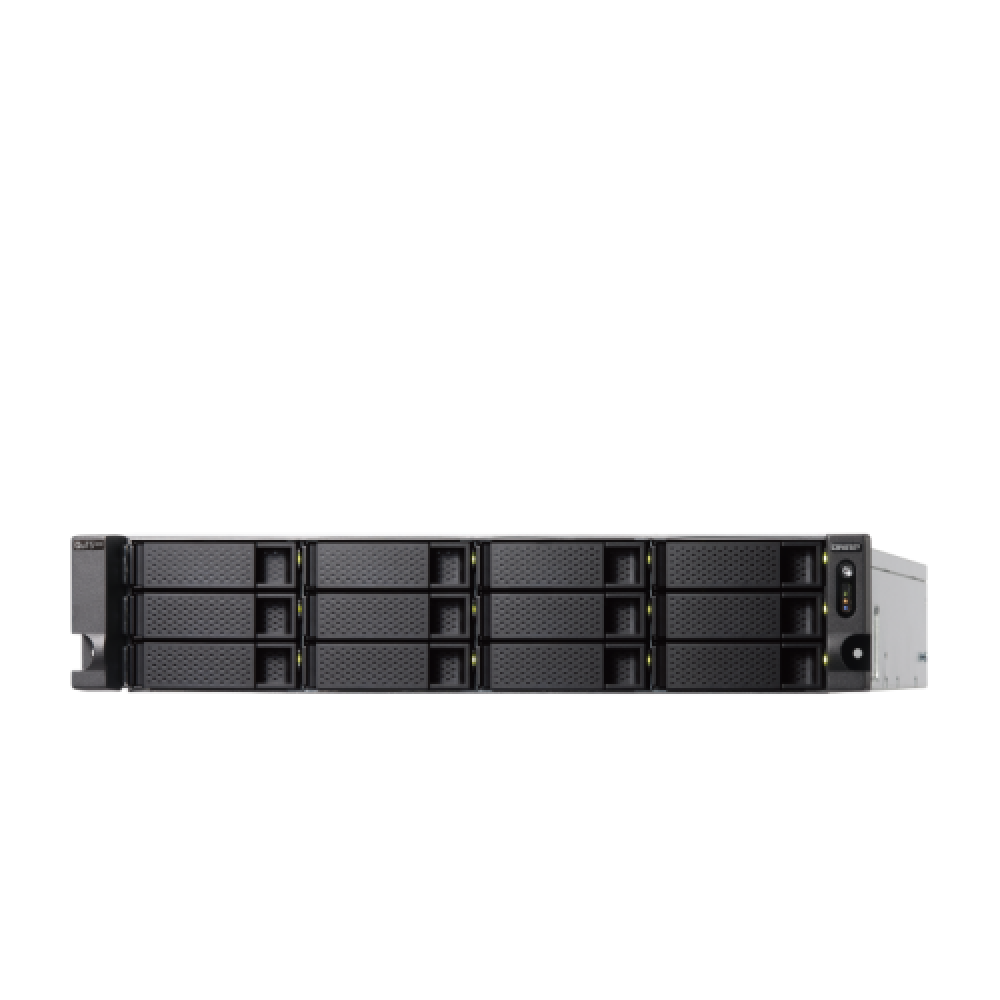

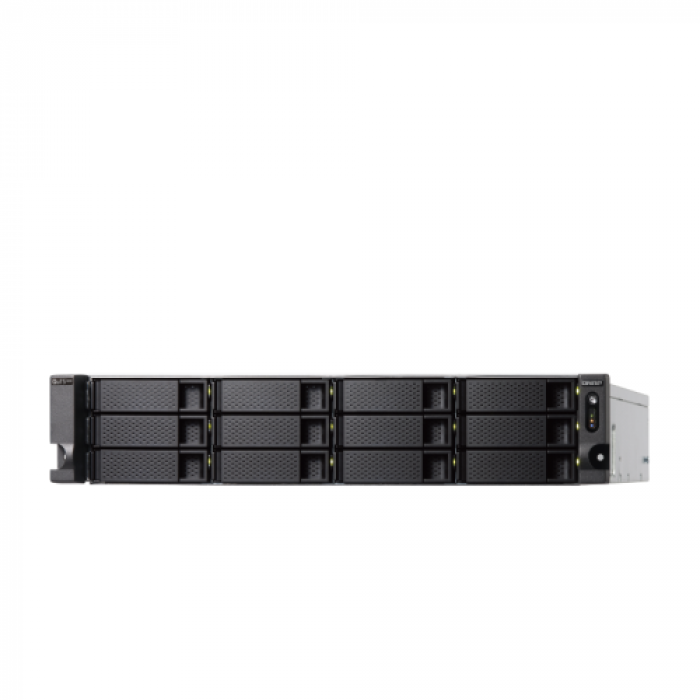

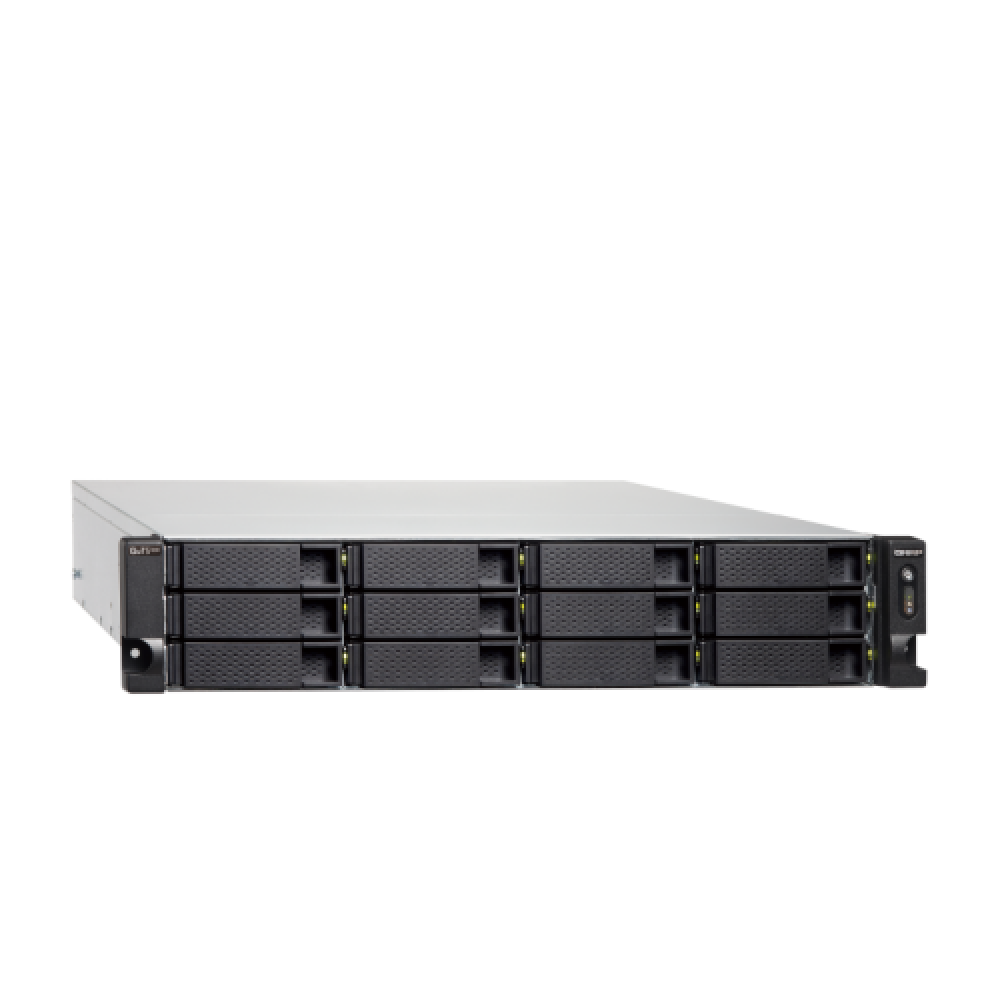

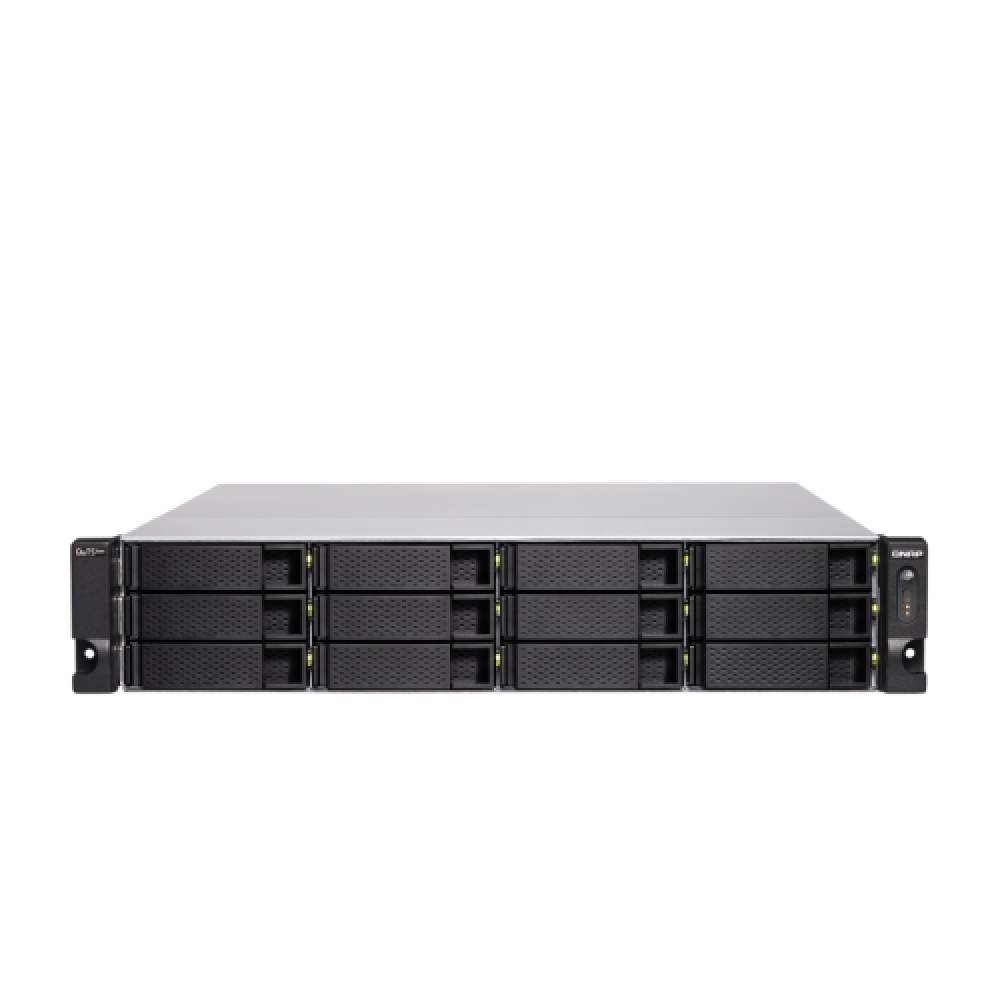

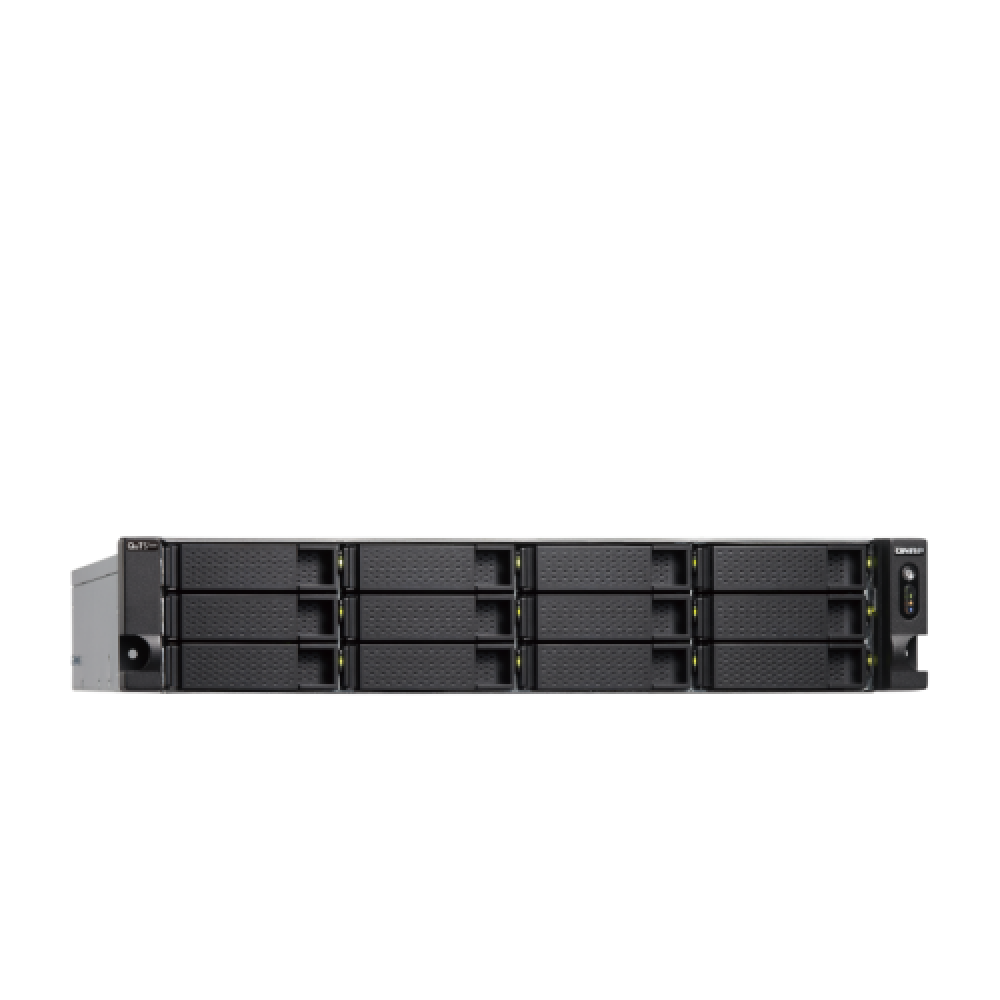

The 2U rackmount TS-h1886XU-RP provides twelve 3.5-inch SATA 6Gb/s drive-bays, six 2.5-inch SATA 6Gb/s SSD slots, and features an Intel Xeon D processor with up to 128 GB DDR4 Error correcting Code (ECC) memory to realize server-grade performance with dependable reliability. The pre-installed dual-port 10GbE SFP+ network card not only empowers bandwidth-demanding applications but also supports RDMA/RoCE to improve performance and lower CPU usage. With the ZFS-based QuTS hero operating system, the TS-h1886XU-RP ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TS-h1886XU-RP delivers a high-performance yet cost-effective NAS solution.
Caracteristici generale
| Accesorii incluse | Cablu Retea 2x Cablu alimentare 48x suruburi (pentru HDD 3.5) 64x suruburi (pentru HDD 2.5) Ghid Instalare |
| Dimensiuni | 88.3 x 482 x 549.7 mm |
| Greutate | 12.73 kg |
| Putere consumata | 117.92 W |
Hardware
| Display | Nu |
| Form Factor | 2U |
| Frecventa procesor | 3.20 GHz |
| Memorie interna | 5 GB Flash |
| Memorie RAM | 32 GB ECC DDR4 2x 16 GB UDIMM ECC DDR4 4 x Sloturi UDIMM DDR4 Memorie maxima 128 GB |
| Model Procesor | Intel Xeon D-1622 |
| Nuclee procesor | 4 |
| Securitate | AES-NI |
| Sursa | 2x 550 W |
| Ventilator | 3 x 60 mm |
Porturi

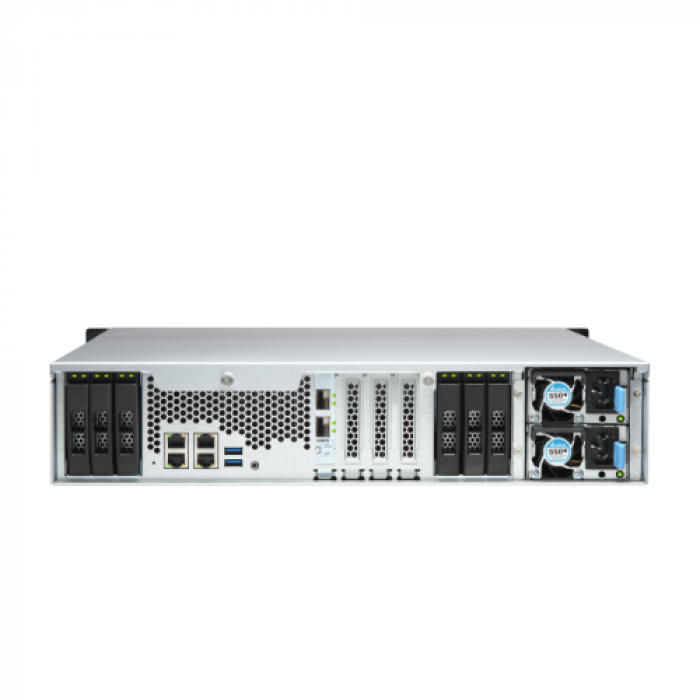

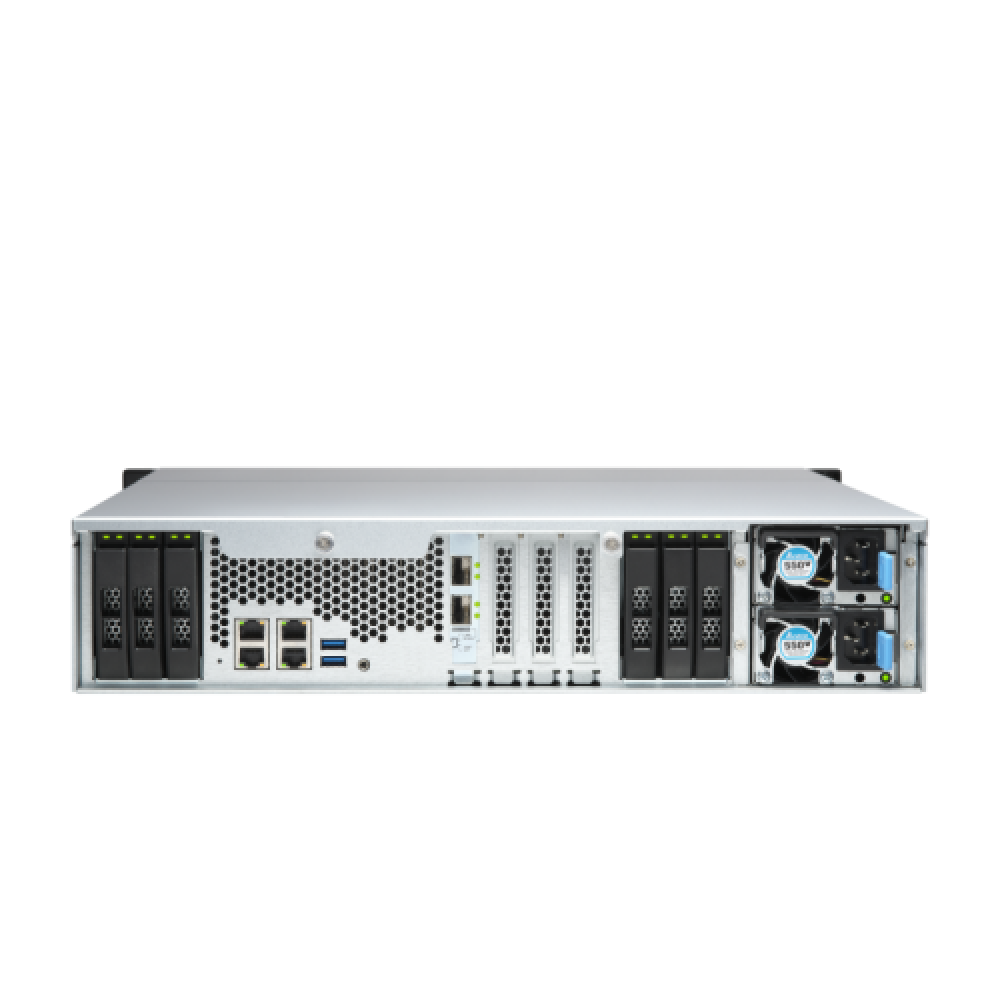

| Altele | 1 x PCIe Gen 3 x4 1 x PCIe Gen 2 x4 1 x PCIe Gen 3 x8 |
| USB 3.0 | 2 |
RAID
| JBOD | Da |
| RAID 0 | Da |
| RAID 1 | Da |
| RAID 10 | Da |
| RAID 5 | Da |
| RAID 50 | Da |
| RAID 6 | Da |
| RAID 60 | Da |
Retea
| Altele | Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV) |
| Interfata LAN | 6x RJ45 |
| Protocoale Retea | IPv4, IPv6, DDNS |
| Viteza transfer LAN | 100/1000/2500 Mbps 100/1000/10000 Mbps |
Stocare

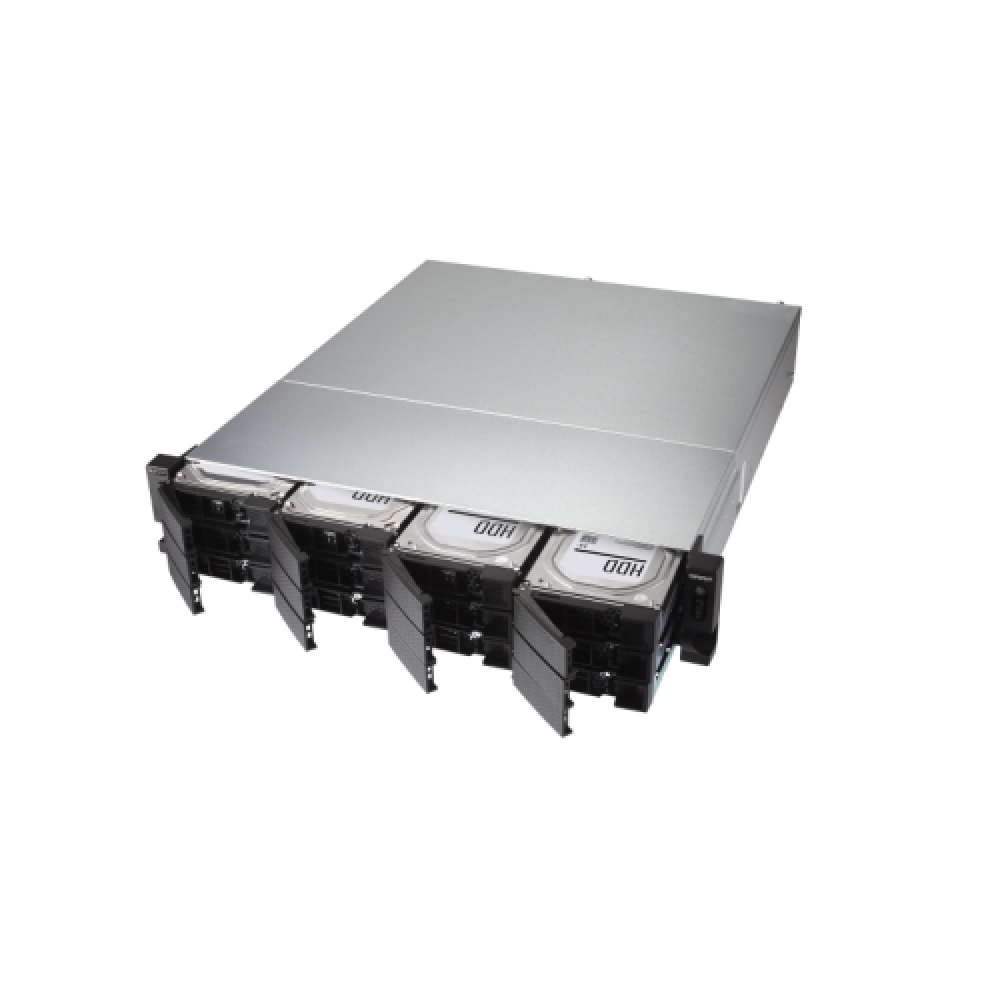

| Bay-uri HDD | 6 x 2.5inch 12x 3.5 inch |
| Capacitate maxima HDD | 1024 TB |
| Compatibilitate HDD bay | Hot-swappable |
| HDD inclus | Nu |
| Numar HDD suportat | 6 x 2.5inch 12x 3.5 inch |
| Tip HDD suportat | HDD 3.5inch SSD/HDD 2.5 inch |
