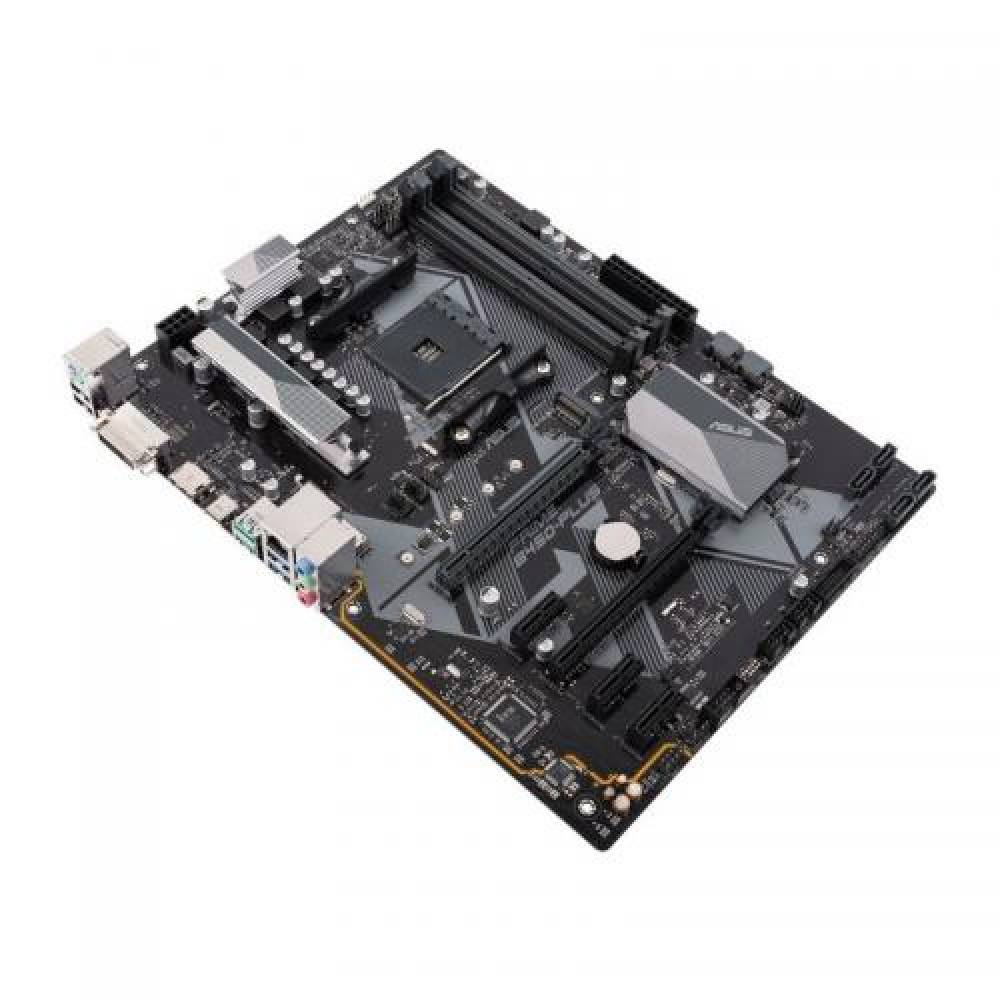

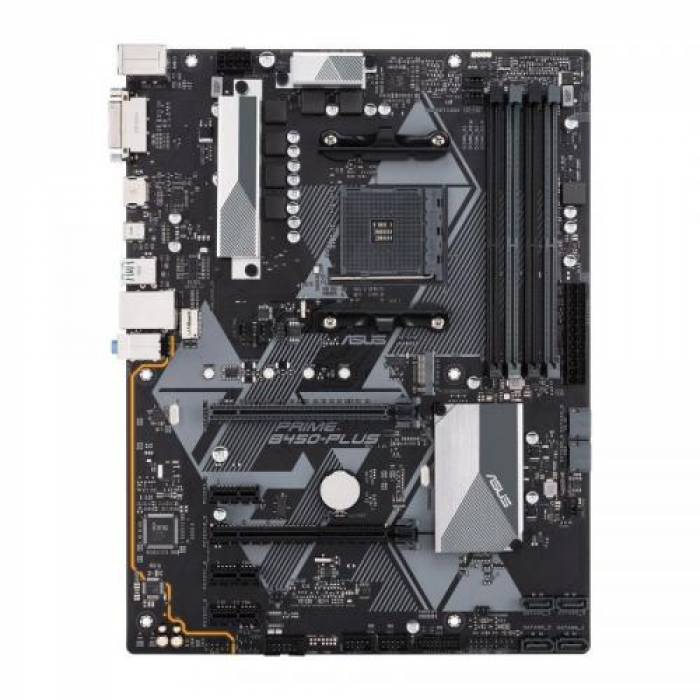

ASUS PRIME B450-PLUS, AM4, B450, USB3.1, M.2, SATA 6GB/S PRIME B450-PLUS

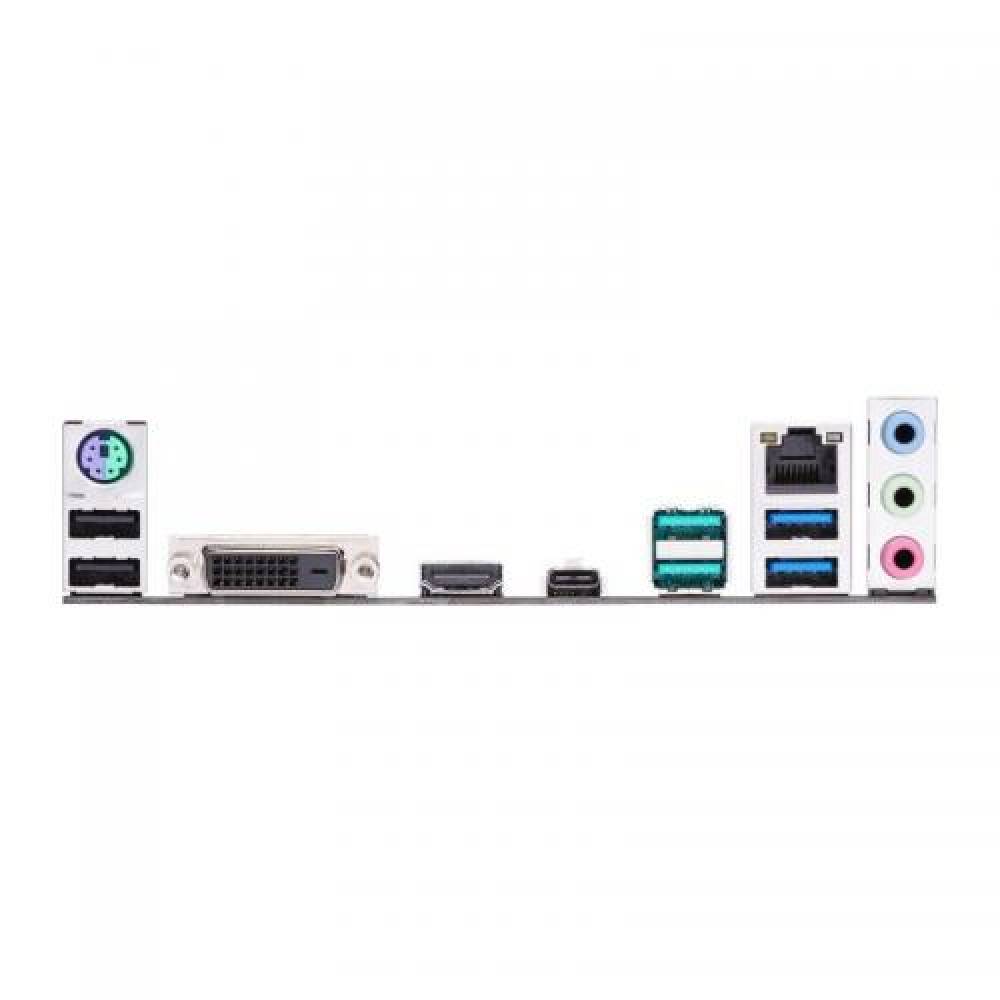

Conectivitate
| DVI | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 5.1 |
| USB 2.0 | 2 |
| USB 3.0 | 2 |
| USB 3.1 tip A | 2 |
| USB 3.1 tip C | 1 |
General
| Chipset audio | Realtek ALC887 |
| Chipset retea | Realtek RTL8111H |
| Interfata grafica | PCI Express x16 3.0 |
| NGFF (M.2) | 1 |
| Placa audio integrata | 7.1 Audio with Realtek ALC887 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD R Series Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Alte specificatii | AMD 7th Generation A-series/Athlon Processors 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| Capacitate maxima memorie RAM | 64 GB |
| Frecvente suportate | 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B450 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket for AMD Ryzen |
| Producator chipset | AMD |
Sloturi
| Header USB 3.0 | 1 (suport 2 USB 3.0) |
| Multi-GPU CrossfireX | Supports AMD CrossFireX Technology |
| PCI Express 2.0 | 1 (x4) |
| PCI Express 3.0 | 1 (x16) |
| PCI Express x1 | 1 (x4) |
Specificatii Fizice
| Format | ATX |
