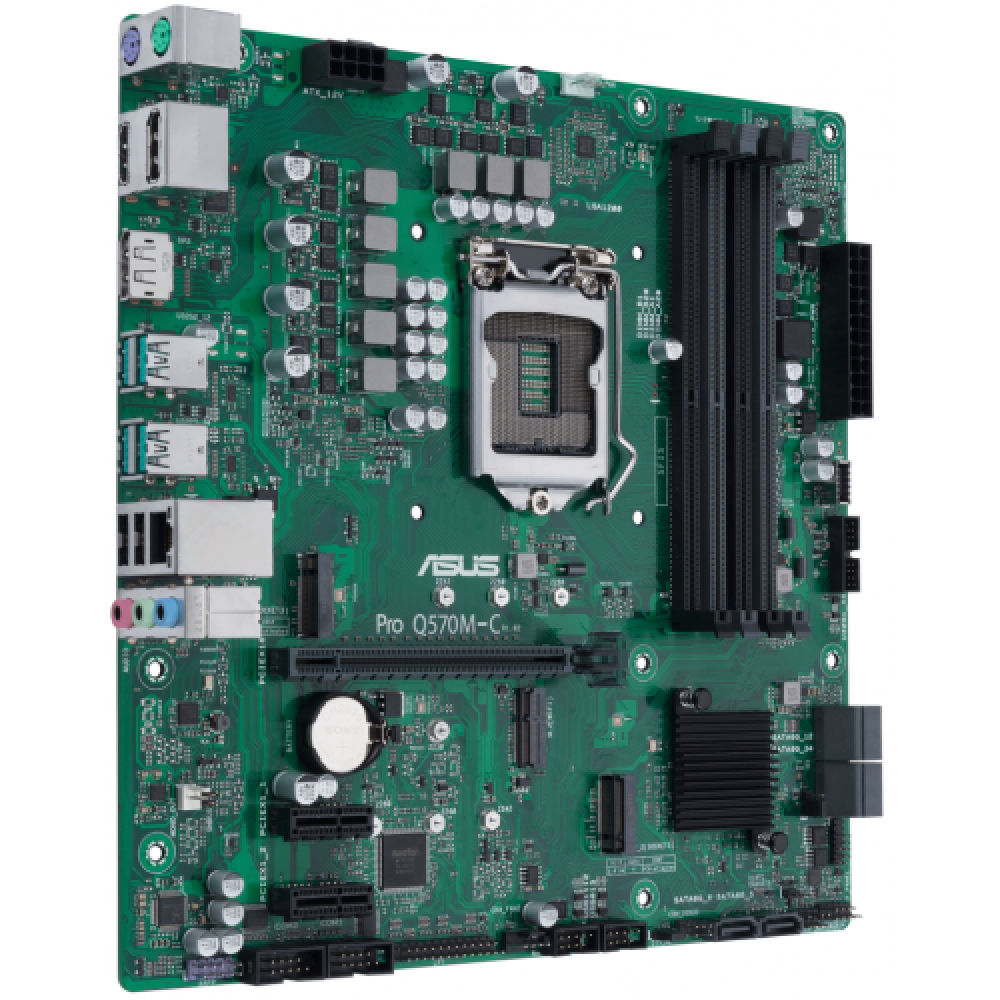

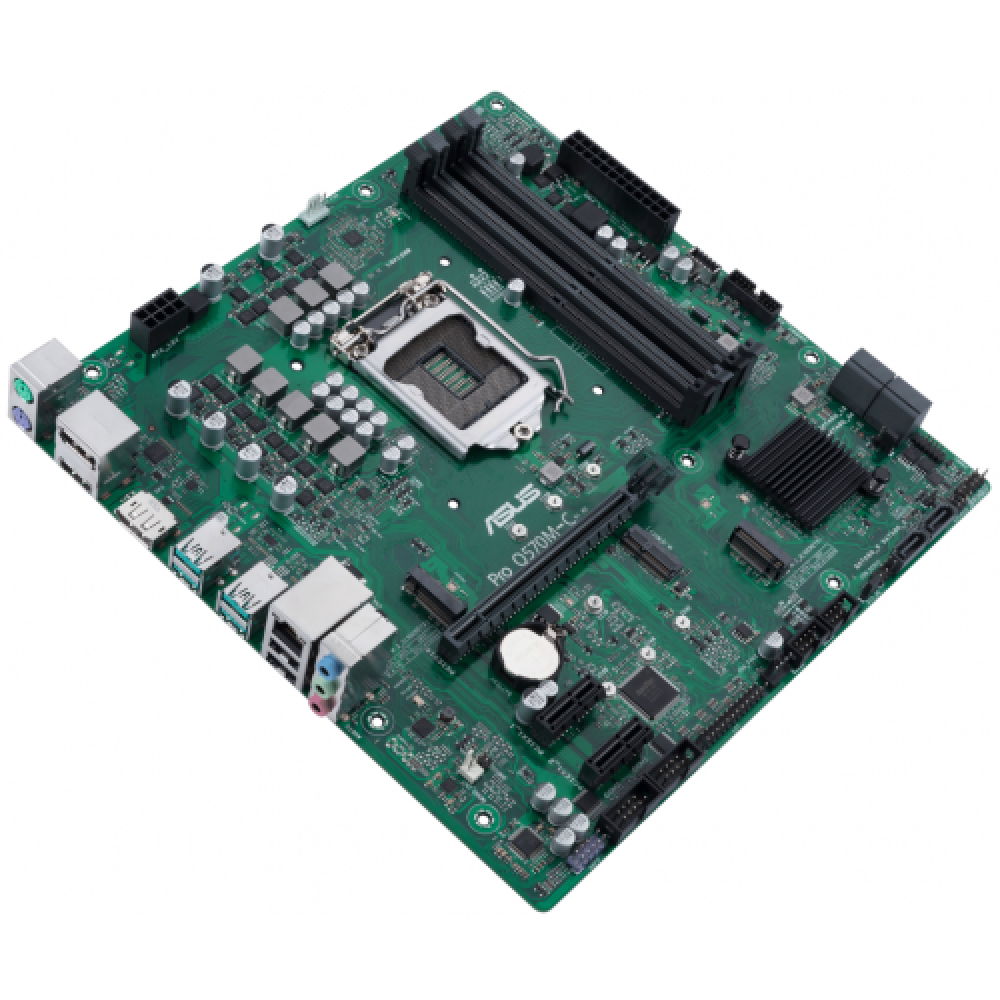

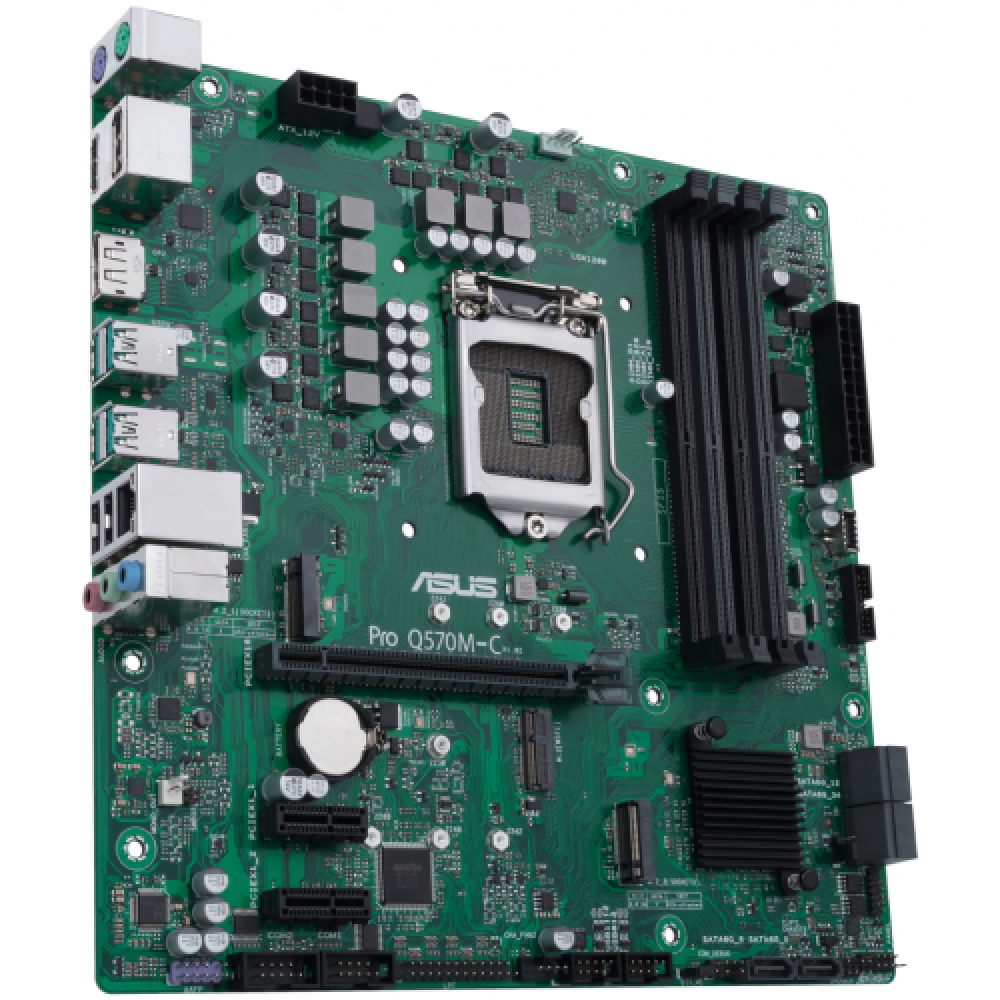

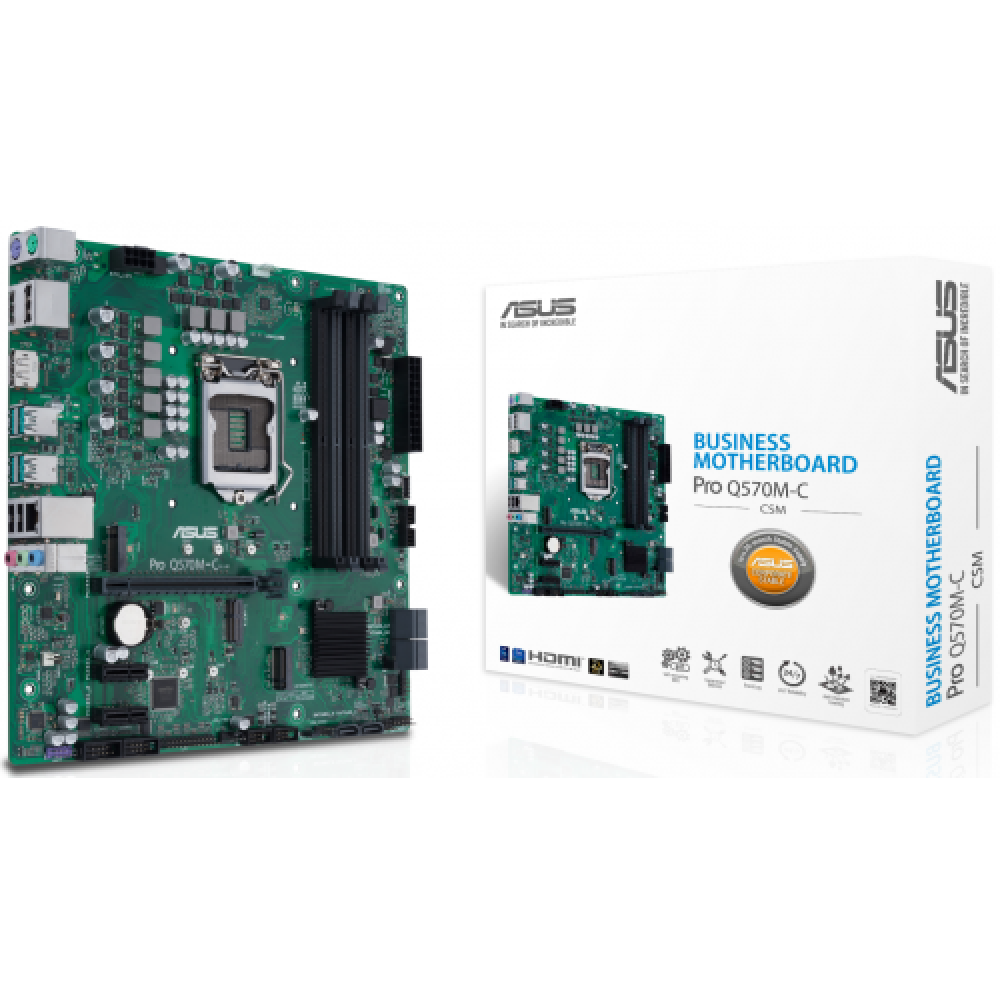

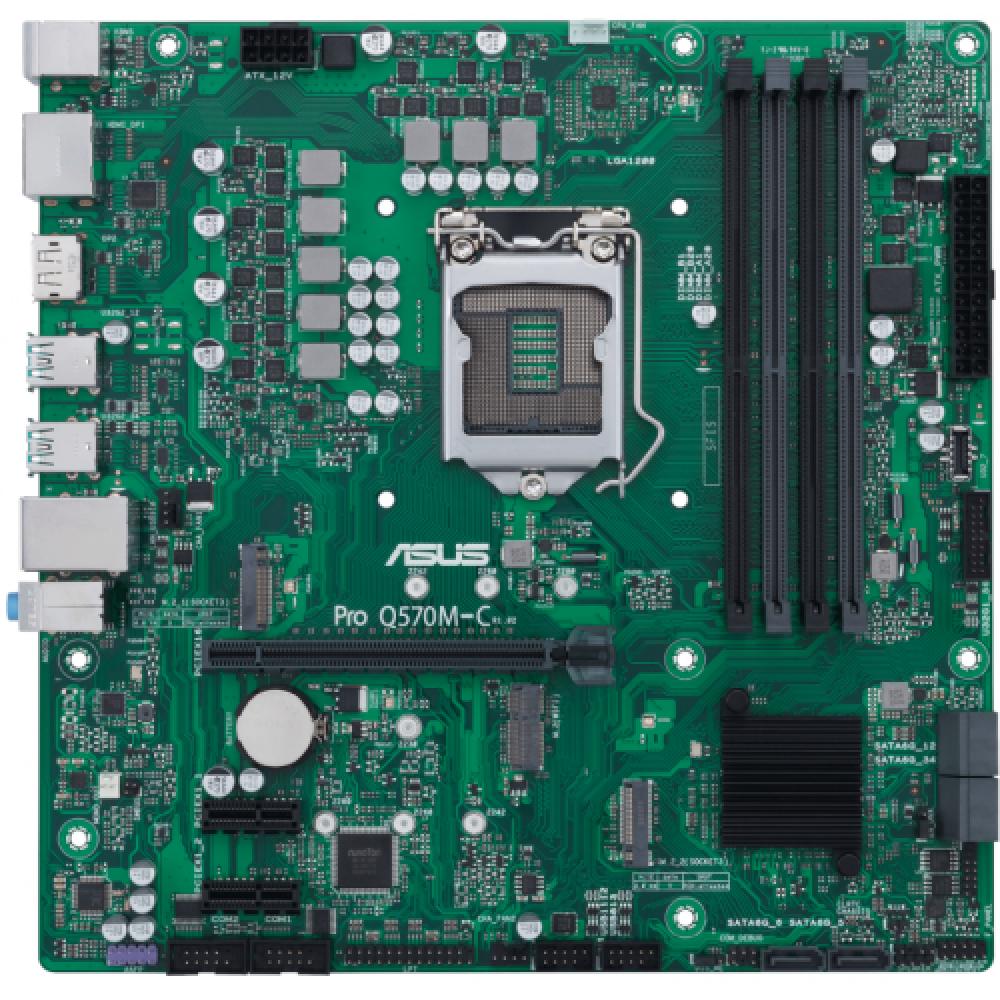

ASUS Pro Q570M-C/CSM - motherboard - micro ATX - LGA1200 Socket - Q570 90MB1700-M0EAYC

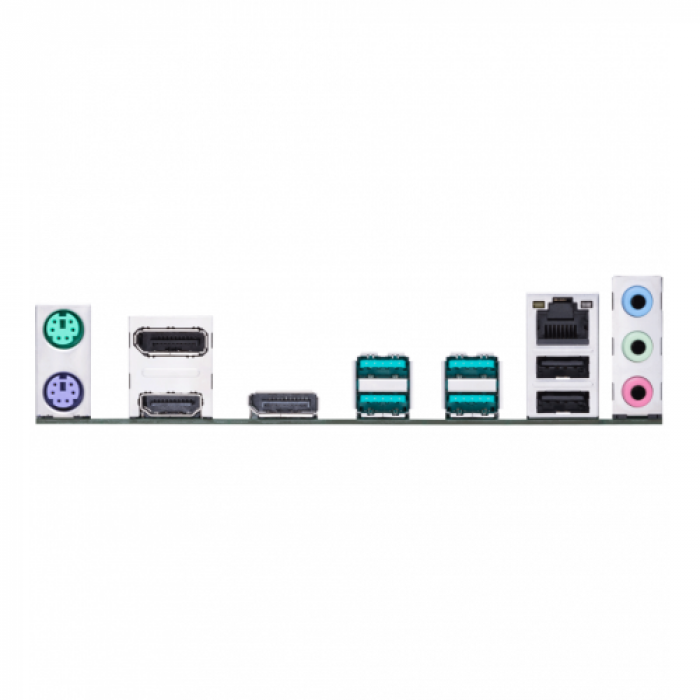

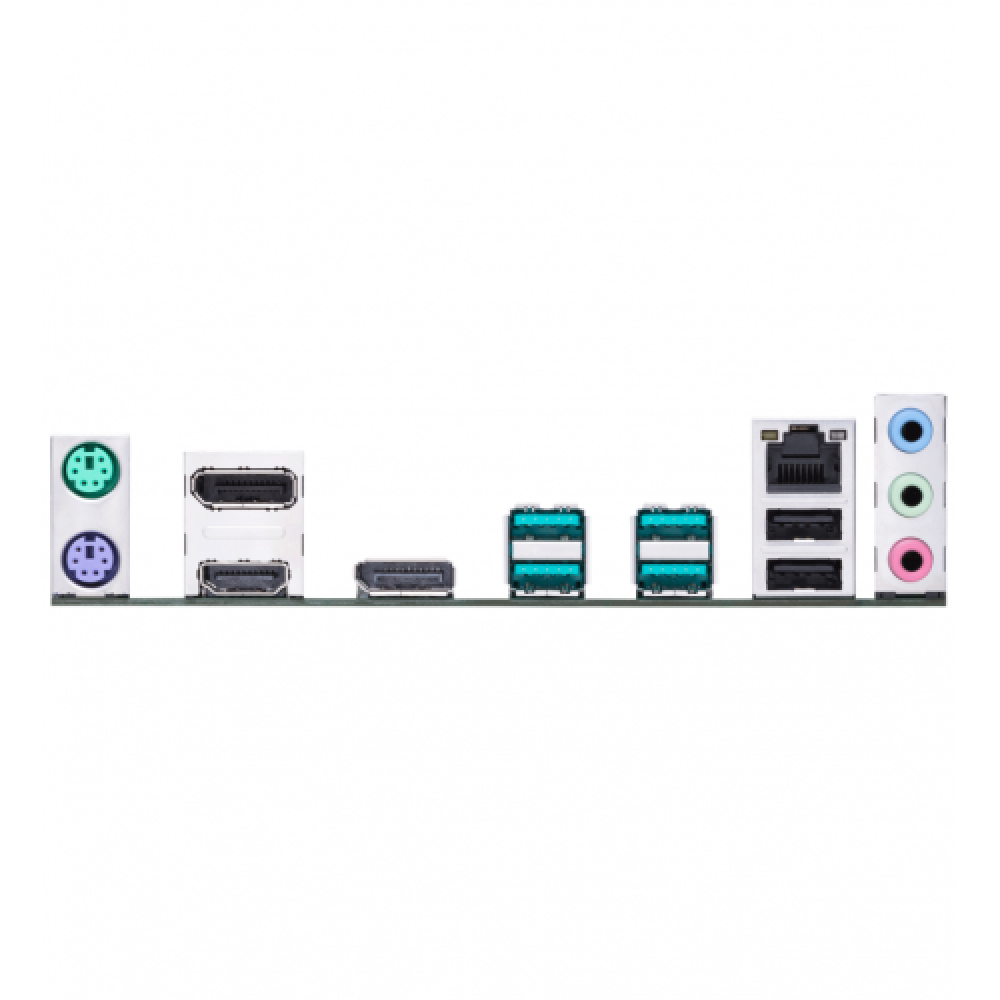

Conectivitate
| Audio jacks | 3 |
| DisplayPort | 2 |
| HDMI | 1 |
| PS/2 Mouse | 1 |
| PS/2 Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 2 |
| USB 3.1 tip A | 4 |
General
| BIOS | 128+64 Mb Flash ROM |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Intel I219-V 1Gb LAN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| Recomandat Gaming | Nu |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 3200(OC)/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Q570 |
| CPU Socket | 1200 |
| Procesoare suportate | Intel 11th Generation Core/Pentium/Celeron Intel 10th Generation Core/Pentium/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 4.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Format | mATX |
