MB ASUS AMD AM4 ROG X570-E GAMING ROG X570-E GAMING

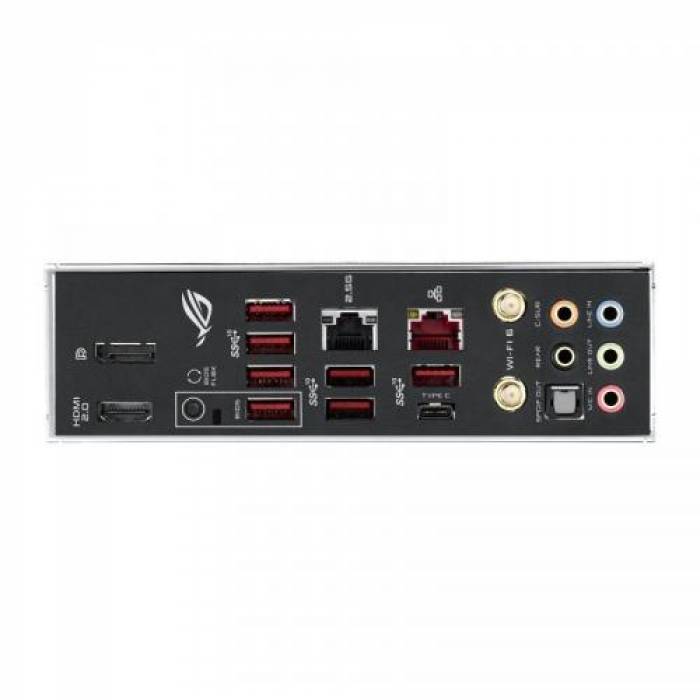

Conectivitate
| Bluetooth | Bluetooth 5.0 |
| Conectori speciali | 1x BIOS Flashback Button |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 2 |
| Suport audio | 7.1 |
| USB 3.1 tip A | 7 |
| USB 3.1 tip C | 1 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
General
| Chipset audio | ROG SupremeFX S1220A |
| Chipset retea | Intel I211AT Realtek RTL8125-CG 2.5G |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with ROG SupremeFX S1220A |
| Placa retea integrata | 10/100/1000 Mbps 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 8 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | X570 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 2000/3000 Series |
| Producator chipset | AMD |
Sloturi
| Header USB 3.0 | 1 (suport 2 USB 3.0) |
| Multi-GPU CrossfireX | Supports AMD 3-Way CrossFireX Technology |
| Multi-GPU SLI | Supports NVIDIA 2-Way SLI Technology |
| PCI Express 4.0 | 3 (x16 / x0/ x4, x8/ x8/ x4) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Format | ATX |
