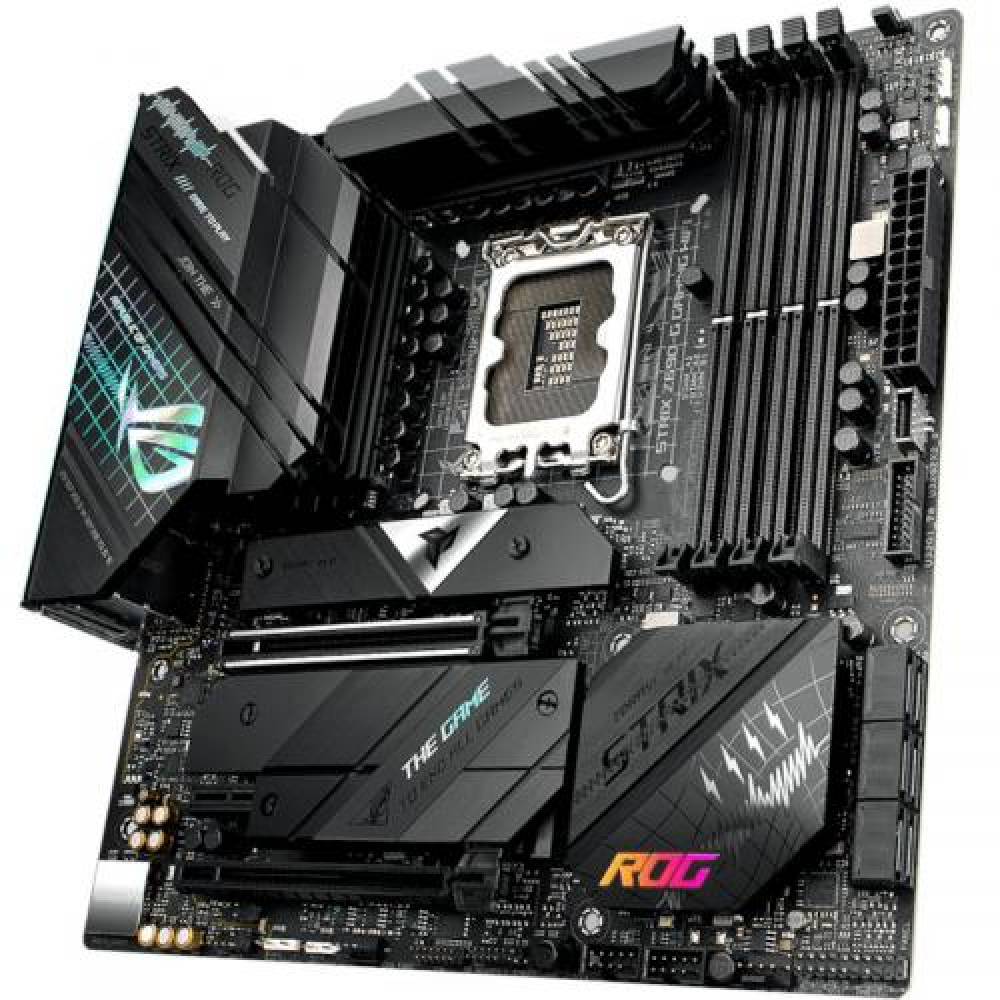

MB ASUS ROG STRIX Z690-G GAM WI LGA 1700 RS Z690-G WIFI
Conectivitate
| Audio jacks | 5 |
| BIOS Flashback | Da |
| Bluetooth | 5.2 |
| Clear CMOS | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 4 |
| USB 3.2 Gen2 tip A | 2 |
| USB tip C | 1 x USB 3.2 Gen 2x2 tip C 1 x USB 3.2 Gen 2 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band |
General
| Chipset audio | Realtek |
| Chipset retea | Realtek |
| Interfata grafica | PCI Express x16 5.0 |
| NGFF (M.2) | 3 |
| Placa audio integrata | 7.1 Audio with Realtek |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 MHz |
| Model memorie | DDR5 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Z690 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| PCI Express 3.0 | 1 (x16) |
| PCI Express 5.0 | 1 |
| PCI Express x1 | 1 |
Specificatii Fizice
| Format | mATX |
