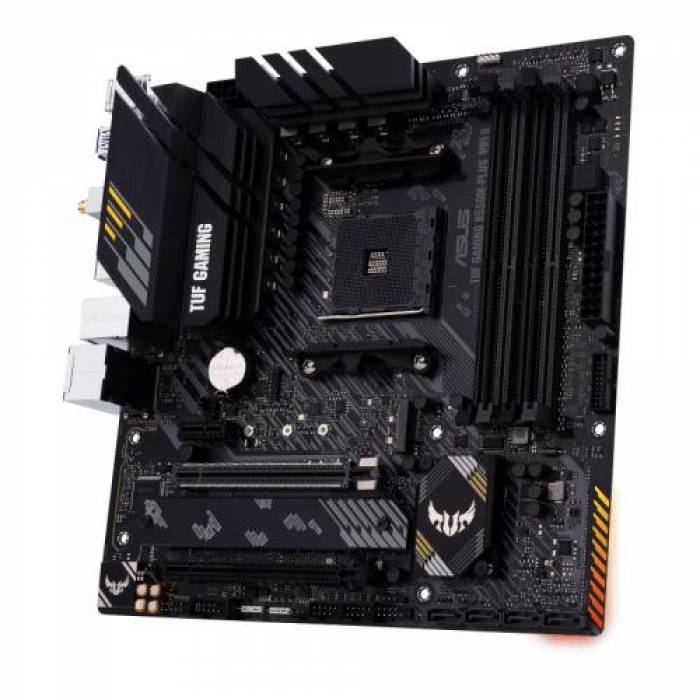

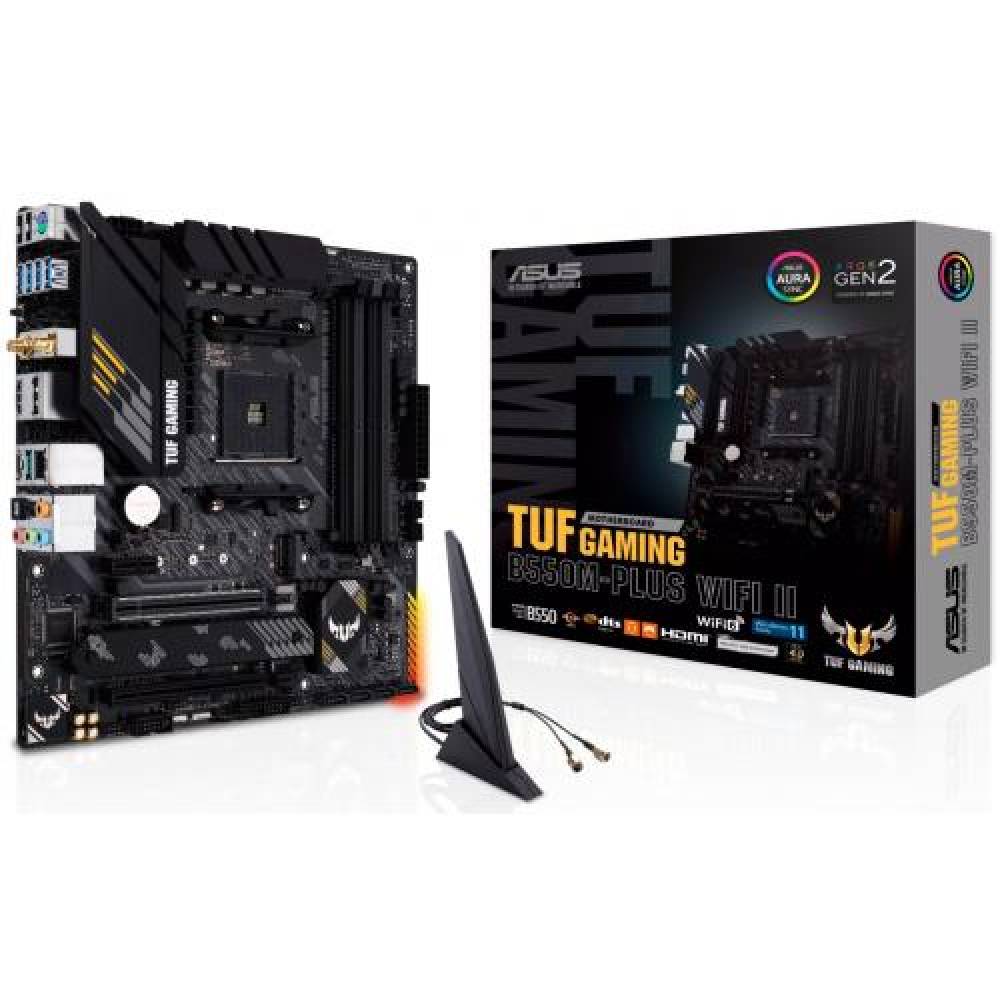

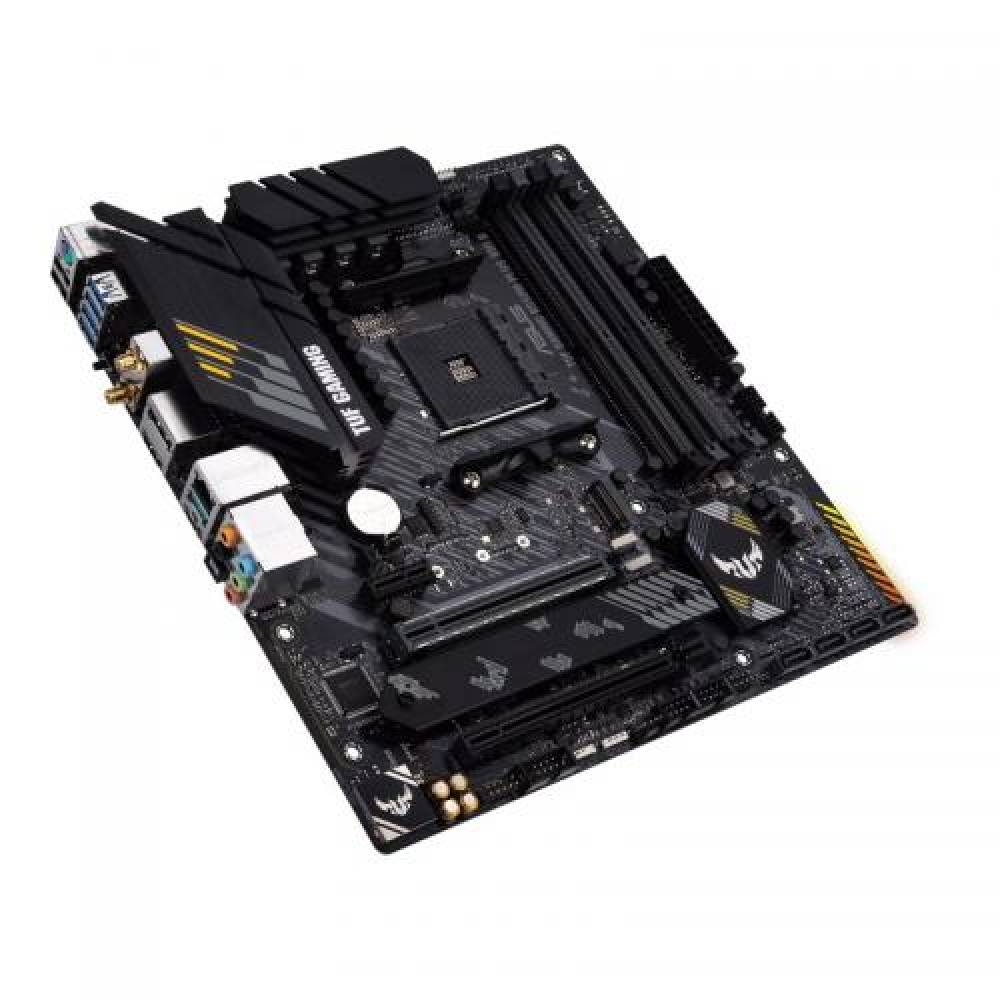

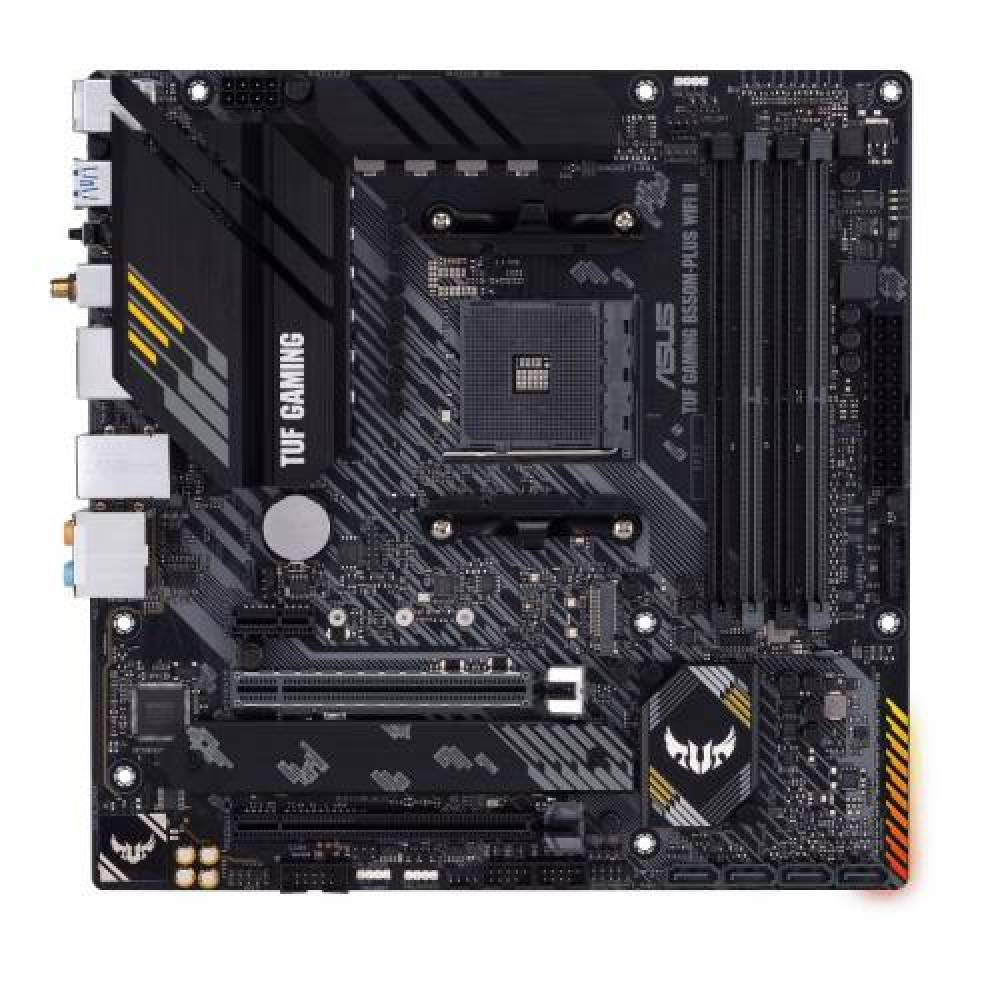

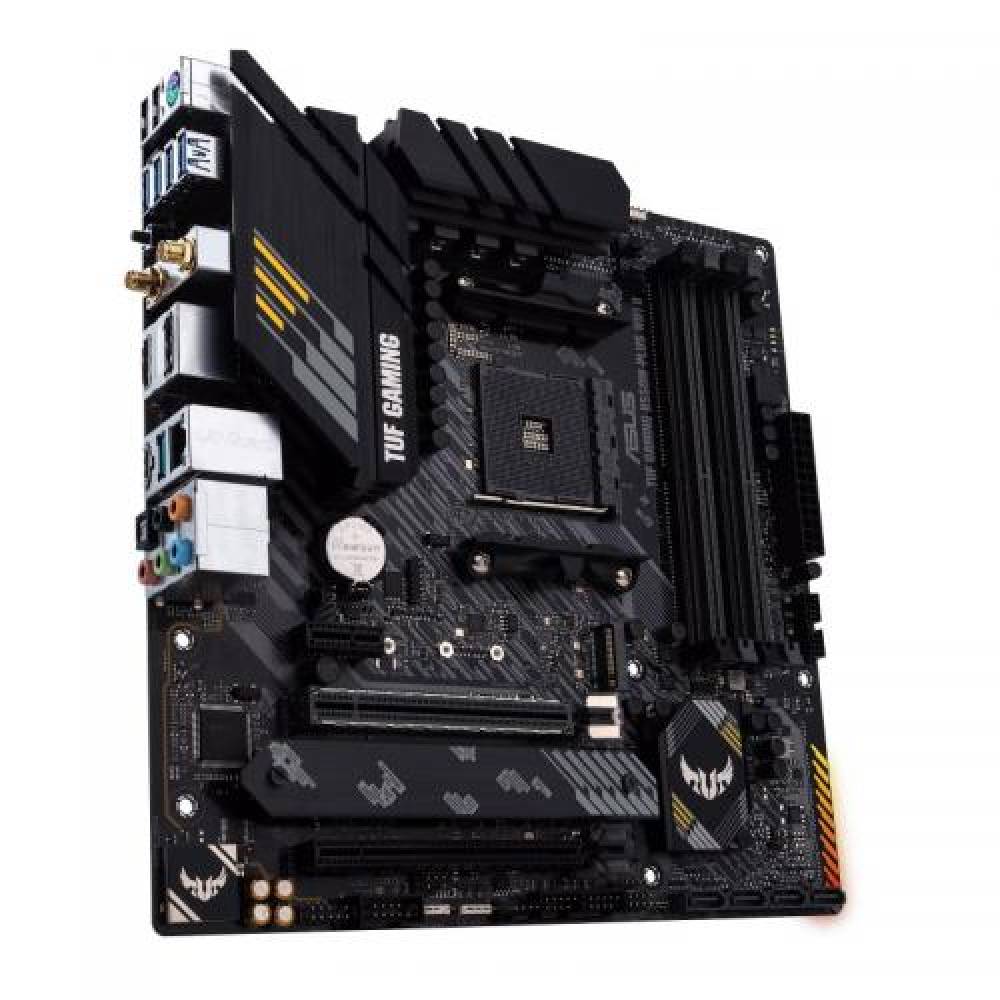

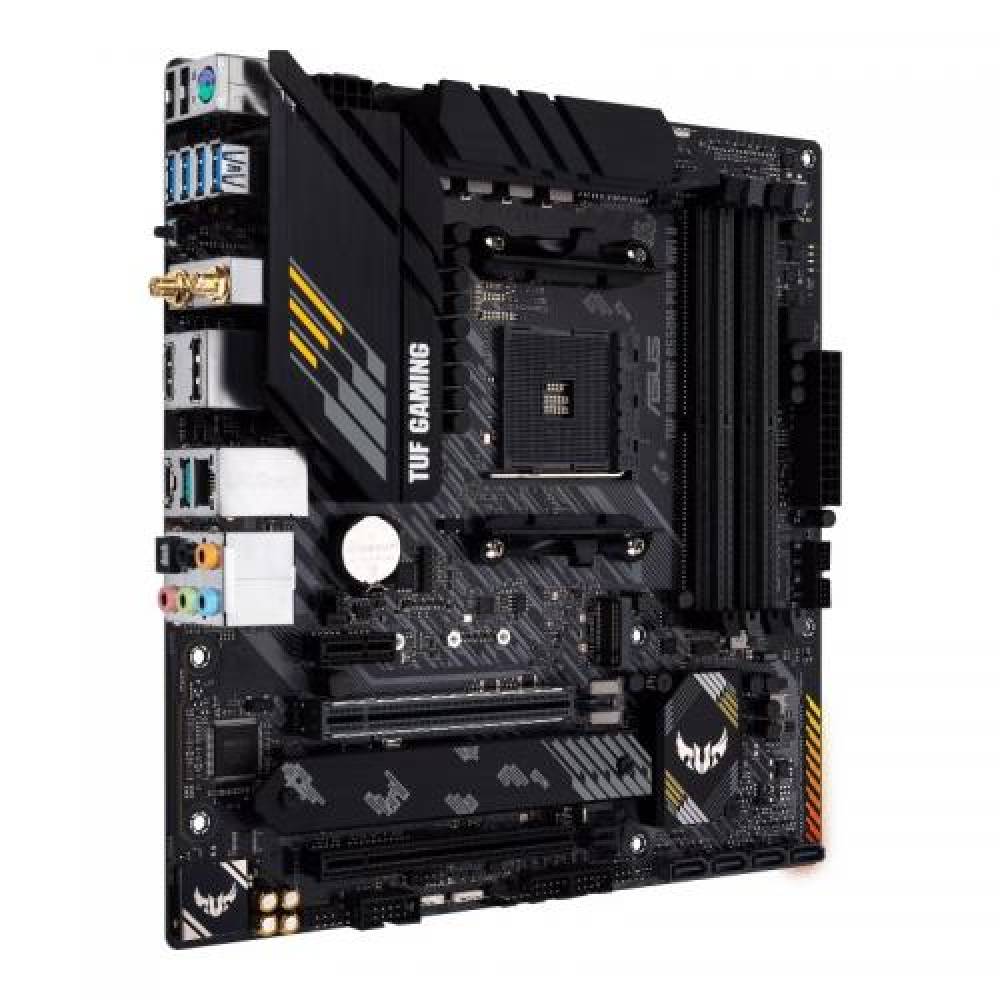

ASUS TUF GAMING B550M-PLUS WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550 90MB19Y0-M0EAY0

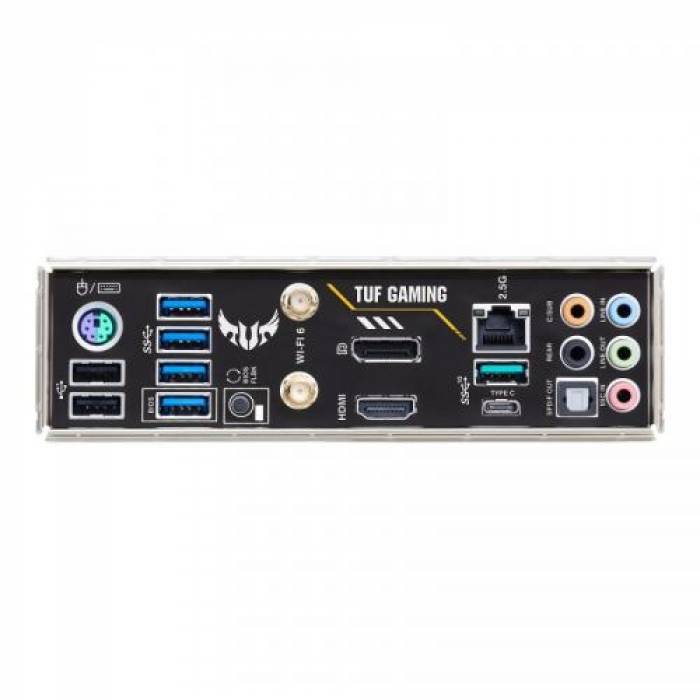

Conectivitate
| Audio jacks | 5 |
| BIOS Flashback | 1 |
| Bluetooth | 5.2 |
| Conectori speciali | 1x Modul WiFi |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 4 |
| USB 3.2 Gen2 tip A | 1 |
| USB tip C | 1 x USB 3.2 Gen 2 tip C |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5 GHz |
General
| BIOS | 2x 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Realtek 2.5GbE LAN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897 |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B550 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ AMD Ryzen 3000 G-Series |
| Producator chipset | AMD |
Sloturi
| PCI Express 3.0 | 1 (x4) |
| PCI Express 4.0 | 1 (x16) |
| PCI Express x1 | 1 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Format | mATX |
