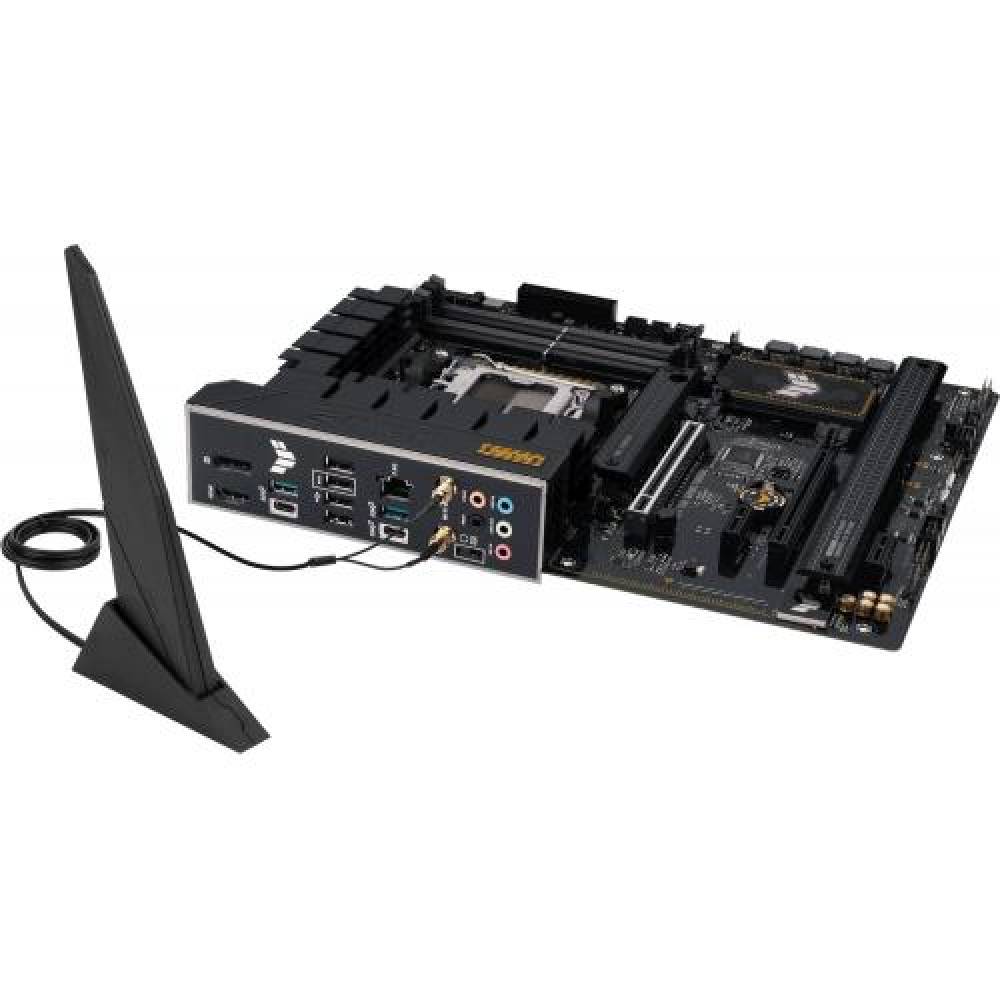

Placa de baza ASUS TUF GAMING B650-PLUS WIFI, AMD B650, socket AM5, ATX
Conectivitate
| Audio jacks | 5 |
| BIOS Flashback | Da |
| Bluetooth | 5.2 |
| Conectori speciali | 1 x Modul WiFi |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 4 |
| USB 3.2 Gen2 tip A | 2 |
| USB tip C | 1 x USB 3.2 Gen 2x2 tip C 1 x USB 3.2 Gen 2 tip C |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5 GHz |
General
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | Realtek ALC1200 |
| Chipset retea | Realtek 2.5GbE LAN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 3 |
| Placa audio integrata | 7.1 Audio with Realtek ALC1200 |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Alte specificatii | Suport pentru AMD EXtended Profiles for Overclocking (AMD EXPO) |
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC |
| Model memorie | DDR5 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B650 |
| CPU Socket | AM5 |
| Procesoare suportate | AMD AM5 Socket Ryzen 7000 Series |
| Producator chipset | AMD |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 4.0 | 4 (x16 / x4 / x1 / x1) |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
