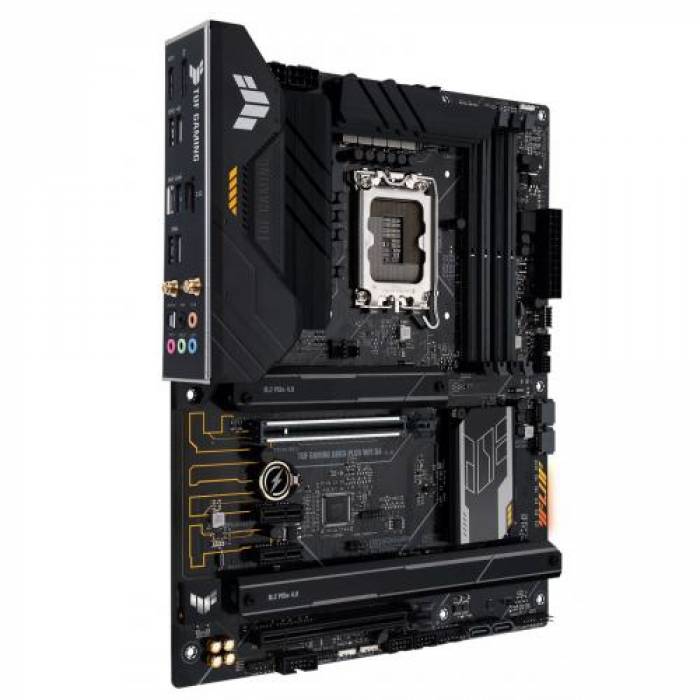

Placa de baza Asus TUF GAMING B660-PLUS WIFI D4 ntel® B660 (LGA 1700) ATX motherboard with PCIe 5.0 slot, three PCIe 4.0 M.2 slots, 10+1 DrMOS, Intel® 2.5Gb Ethernet, DisplayPort, HDMI, front USB 3.2 Gen 2 Type-C®, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ support Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences https://www.asus.com/Motherboards-Components/Motherboards/TUF- Gaming/TUF-Gaming-B660-PLUS-WIFI-D4/
Conectivitate
| Audio jacks | 5 |
| BIOS Flashback | Da |
| Bluetooth | 5.2 |
| Conectori speciali | 1x Modul WiFi |
| DisplayPort | 1 |
| HDMI | 1 |
| Iesire optica S/PDIF | 1 |
| RJ-45 | 1 |
| Suport audio | 7.1 |
| USB 2.0 | 1 |
| USB 3.2 Gen1 tip A | 3 |
| USB 3.2 Gen2 tip A | 1 |
| USB tip C | 1 x USB 3.2 Gen 2x2 tip C |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac/ax (2x2), supporting 2.4/5 GHz Dual-Band |
General
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Intel 2.5GbE LAN |
| Interfata grafica | PCI Express x16 5.0 |
| NGFF (M.2) | 3 |
| Placa audio integrata | 7.1 Audio with Realtek ALC897 |
| Placa retea integrata | 10/100/1000/2500 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B660 |
| CPU Socket | 1700 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | Da |
| PCI Express 3.0 | 1 (x4) |
| PCI Express 5.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Format | ATX |
