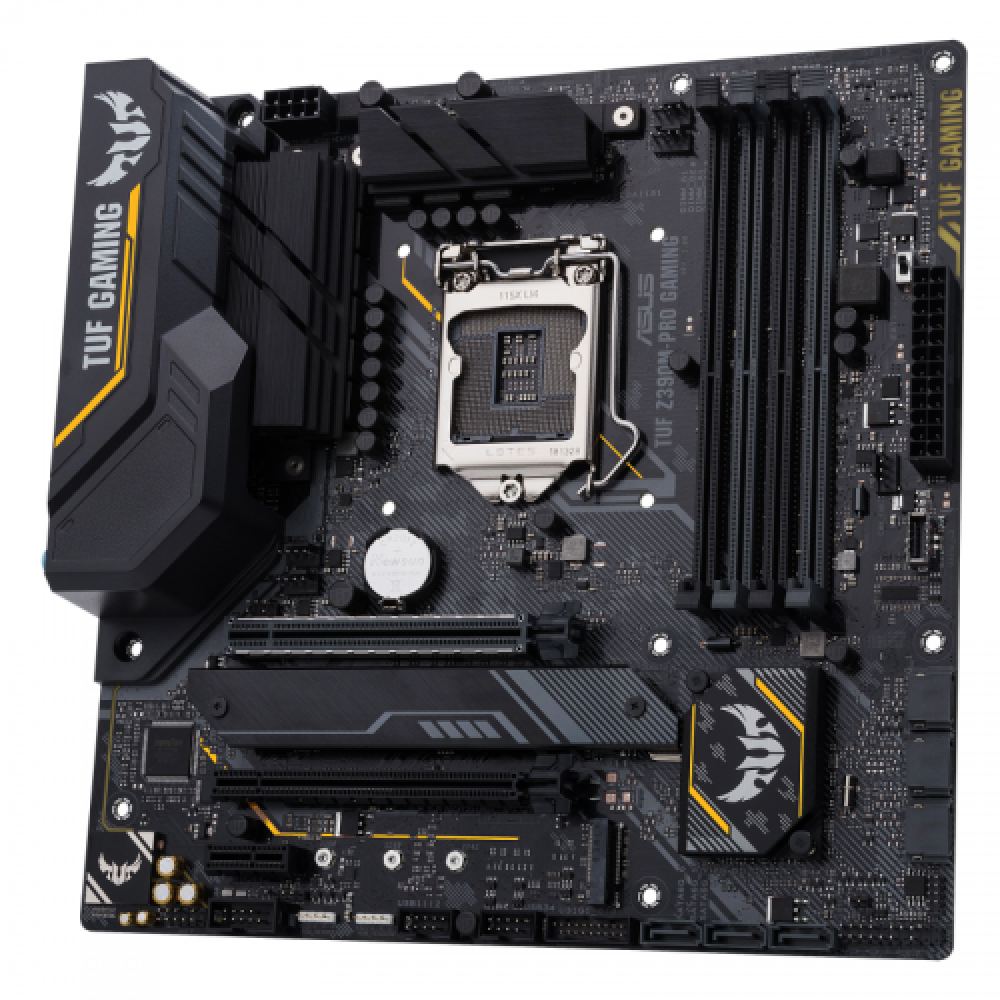

ASUS TUF Z390M-PRO GAMING TUF Z390M-PRO GAMING

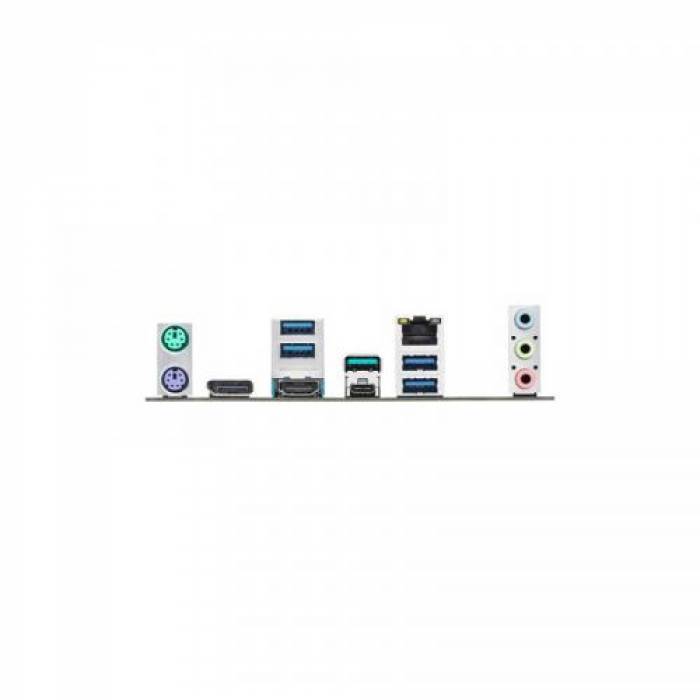

Conectivitate
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 Mouse | 1 |
| PS/2 Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 5.1 |
| USB 3.0 | 4 |
| USB 3.1 tip A | 1 |
| USB 3.1 tip C | 1 |
General
| Chipset audio | Realtek S1200A |
| Chipset retea | Intel I219V |
| Interfata grafica | PCI Express x16 3.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek S1200A |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia Intel HD Graphics |
| RAID | 0, 1, 5, 10 |
| Recomandat Gaming | Da |
| SATA III | 6 |
Memorie
| Capacitate maxima memorie RAM | 64 GB |
| Frecvente suportate | 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | Z390 |
| CPU Socket | 1151 v2 |
| Procesoare suportate | Intel 9th/8th Generation Core i7/i5/i3/Pentium/Celeron |
| Producator chipset | Intel |
Sloturi
| Header USB 3.0 | 1 (suport 2 USB 3.0) |
| Multi-GPU CrossfireX | Supports AMD CrossFireX™ Technology |
| Multi-GPU SLI | Supports NVIDIA® SLI™ Technology |
| PCI Express 3.0 | 2 (x16 / x0 , x8 / x8) |
| PCI Express x1 | 1 |
Specificatii Fizice
| Format | mATX |
