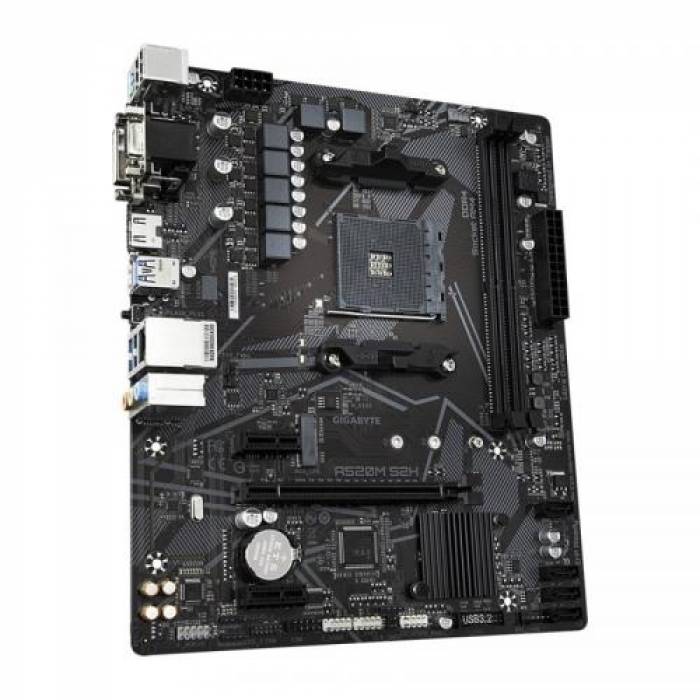

AMD A520M H Chipset | Socket AM4 | 4 x DDR4 DIMM (up to 128GB) | Audio Realtek ALC887 | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) | Intel® Wi-Fi 3168 | 1 x PCI Express x16, 2 x PCI Express x1 | 1 x M.2 Socket 3, 4 x SATA 6Gb/s | RAID 0, RAID 1, RAID 10 | 1 x PS/2, 1 x HDMI, 1 x DVI-D, 1 x Display port, 4 x USB 3.2 Gen 1,2 x USB 2.0, 1 x RJ-45, 3 x audio jacks, 2 x SMA antena connectors (1T1R) | Micro-ATX
Conectivitate
| DisplayPort | 1 |
| DVI | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 5.1 |
| USB 2.0 | 2 |
| USB 3.0 | 4 |
General
| Chipset audio | Realtek ALC887 |
| Chipset retea | Realtek GbE |
| Interfata grafica | PCI Express x16 3.0 |
| NGFF (M.2) | 1 |
| Placa audio integrata | 7.1 Audio with Realtek ALC887 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Model memorie | DDR4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | A520 |
| CPU Socket | AM4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 3000 Series |
| Producator chipset | AMD |
Sloturi
| PCI Express 3.0 | 1 (x16) |
| PCI Express x1 | 2 |
Specificatii Fizice
| Format | mATX |
