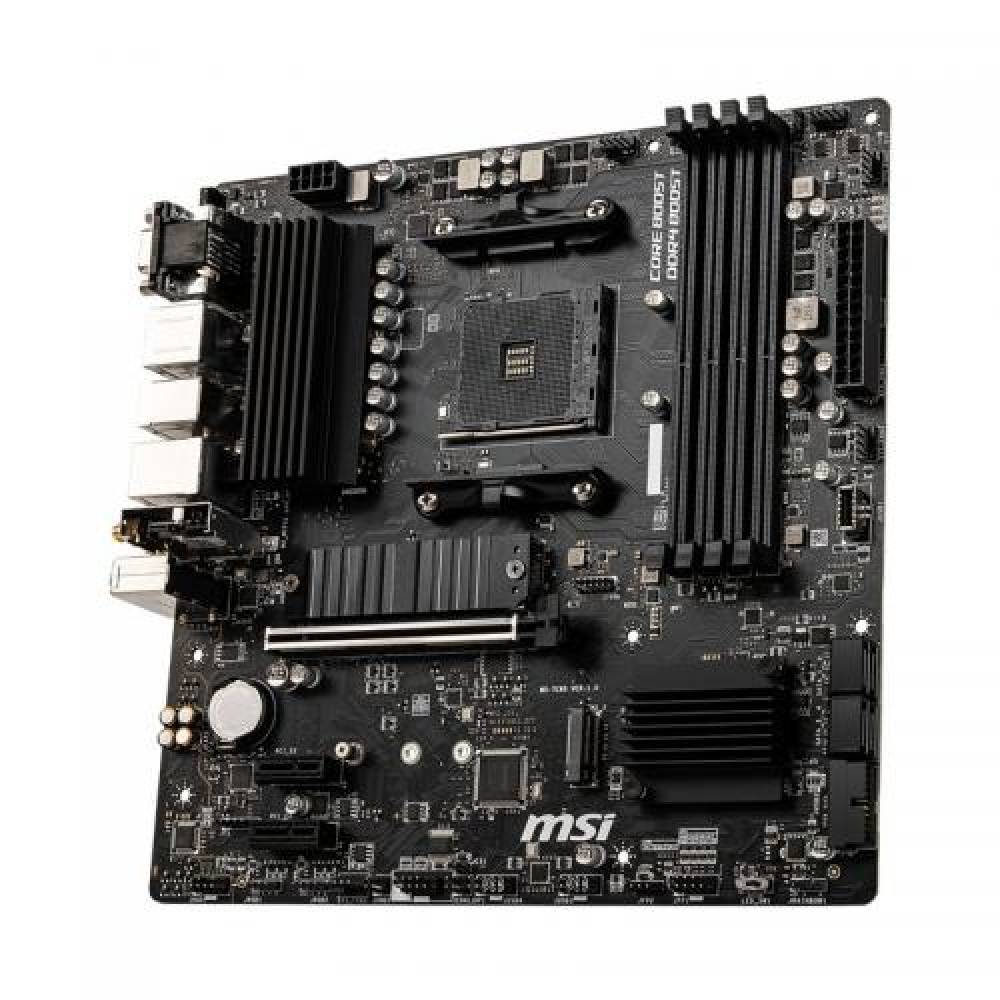

MSI B550M PRO-VDH WIFI - Motherboard - micro ATX - Socket AM4 - AMD B550 - USB-C Gen1, USB 3.2 Gen 1 - Bluetooth, Gigabit LAN, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Conectivitate
| Bluetooth | 4.2 |
| Conectori speciali | 1x BIOS Flashback Button |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 Combo Mouse/Tastatura | 1 |
| RJ-45 | 1 |
| Suport audio | 5.1 |
| USB 2.0 | 2 |
| USB 3.2 Gen1 tip A | 4 |
| VGA | 1 |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band |
General
| Chipset audio | Realtek ALC892 |
| Chipset retea | Realtek 8111HN |
| Interfata grafica | PCI Express x16 4.0 |
| NGFF (M.2) | 2 |
| Placa audio integrata | 7.1 Audio with Realtek ALC892 |
| Placa retea integrata | 10/100/1000 Mbps |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| RAID | 0, 1, 10 |
| Recomandat Gaming | Da |
| SATA III | 4 |
Memorie
| Capacitate maxima memorie RAM | 128 GB |
| Frecvente suportate | 4400(OC)/4266(OC)/4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ (OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Model memorie | DDR 4 |
| Sloturi memorie | 4 |
| Tehnologie | Dual channel |
Procesor
| Chipset | B550 |
| CPU Socket | AM 4 |
| Procesoare suportate | AMD AM4 Socket Ryzen 3000 Series |
| Producator chipset | AMD |
Sloturi
| PCI Express 4.0 | 1 |
| PCI Express x1 | 2 |
Specificatii Fizice
| Format | mATX |
