Alte caracteristici
| Alimentare separata | 2x 8-pin PCI-E |
| Backplate | Da |
| Dimensiuni | 322 x 141 x 56.5 mm |
| HDCP Ready | Da |
| Iluminare | Da |
| Numar de sloturi ocupate | 3 |
| Suport FreeSync | Da |
| Suport Vulkan | Da |
| Tehnologii | AMD RDNA 2 Architecture DirectX 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI Express 4.0 Support AMD FreeSync Technology DisplayPort 1.4 with DSC HDMI 2.1 VRR Video Streaming up to 8K Radeon VR Ready Premium AMD FidelityFX Radeon Image Sharpening Radeon Anti-Lag Radeon Software Game Driver Optimizations |
| Versiune DirectX | 12 Ultimate |
| Versiune OpenCL | 2.1 |
| Versiune OpenGL | 4.6 |
| VR Ready | Da |
Conectori
| Display Port | 3 |
| HDMI | 1 |
General

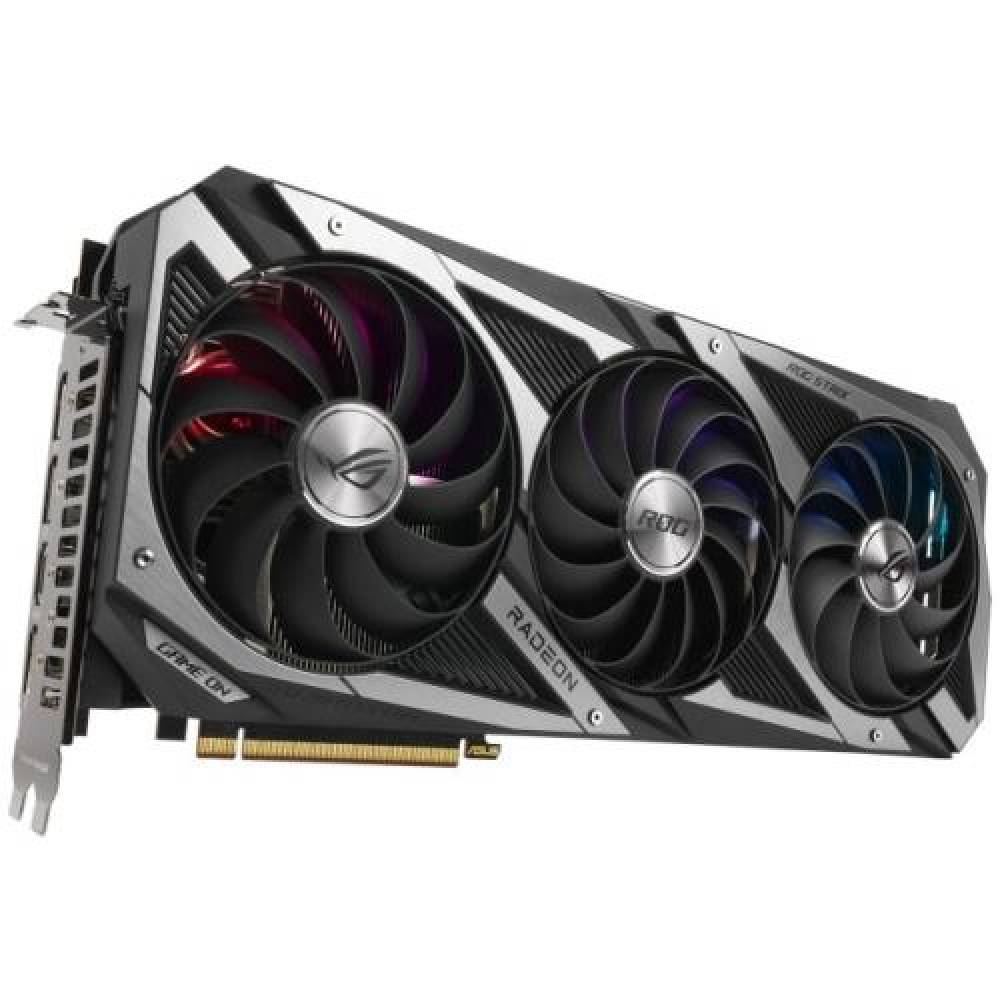

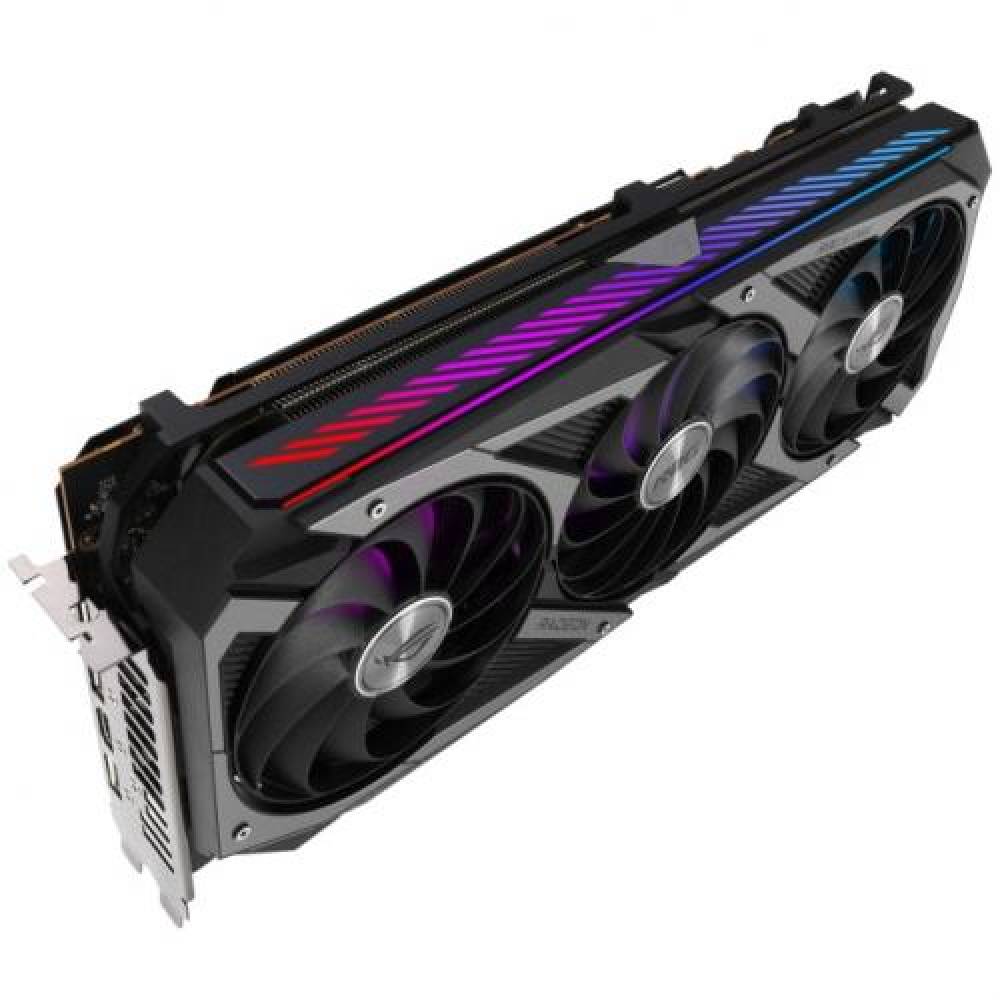

| Editie/Racire | ROG STRIX GAMING OC |
| Interfata grafica | PCI Express x16 4.0 |
| Model | Radeon RX 6700 XT |
| Producator chipset grafic | AMD |
| Recomandat Gaming | Da |
| Rezolutie maxima suportata | 7680 x 4320 pixeli |
| Serie | Radeon RX 6000 |
Memorie
| Bus memorie | 192 bit |
| Capacitate memorie | 12 GB |
| Frecventa memorie | 16000 MHz |
| Latime de banda memorie | 384.0 GB/sec |
| Tip memorie | GDDR6 |
Procesor
| Data lansarii chipset | 03.03.2021 |
| Frecventa procesor grafic | 2457 MHz |
| GPU Boost clock | 2629 MHz |
| Numar tranzistoare | 17200 milioane |
| Pixel Fill Rate | 168300 MPixels/sec |
| Procesoare Stream | 2560 |
| Raster Operators | 64 |
| Serie Procesor grafic | Navi 22 |
| Tehnologie | 7 nm |
| Texture Fill Rate | 420600 MTexels/sec |
| Texture Units | 160 |
| Versiune Pixel Shader | 6.5 |
| Versiune Vertex Shader | 6.5 |
Profiluri OC
| Frecventa GPU mod gaming | 2548 MHz |
Sistem racire
| Dimensiune racire | Tri slot |
| Sistem de racire | Activ |
| Tip racire | Aer |
