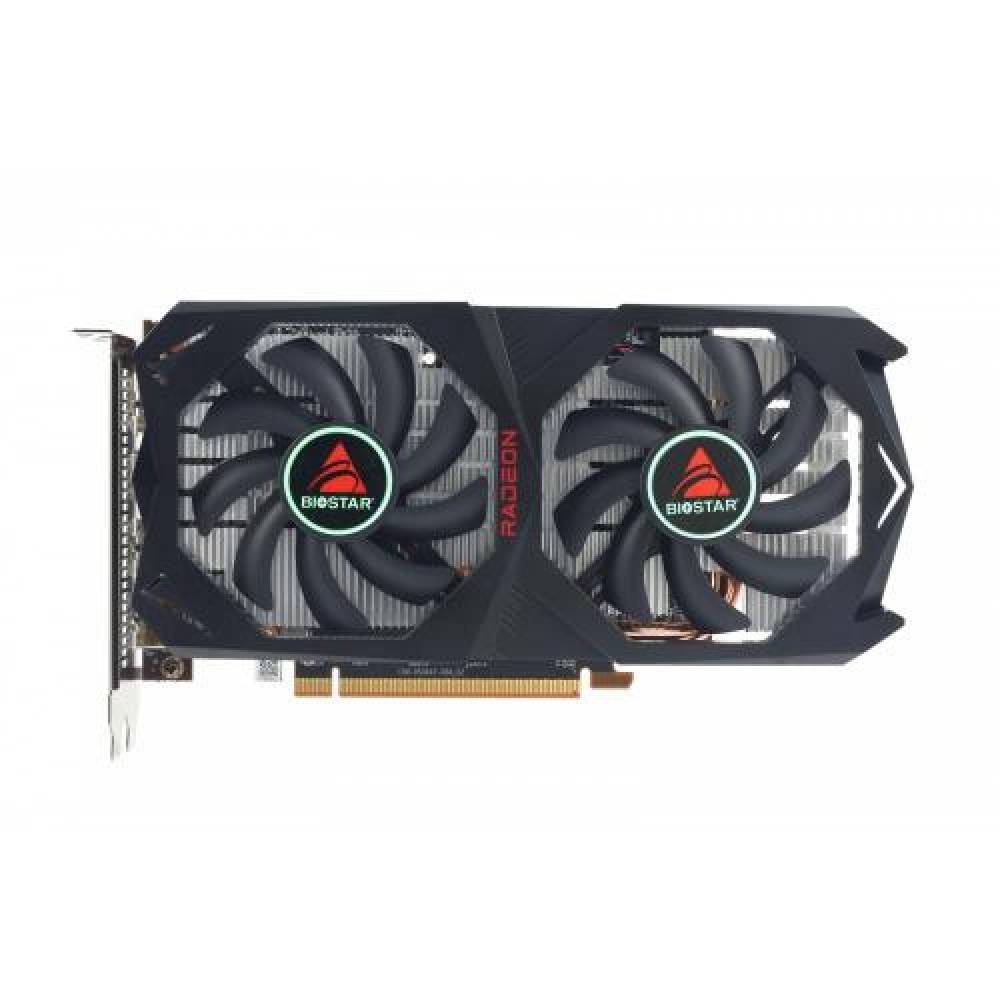

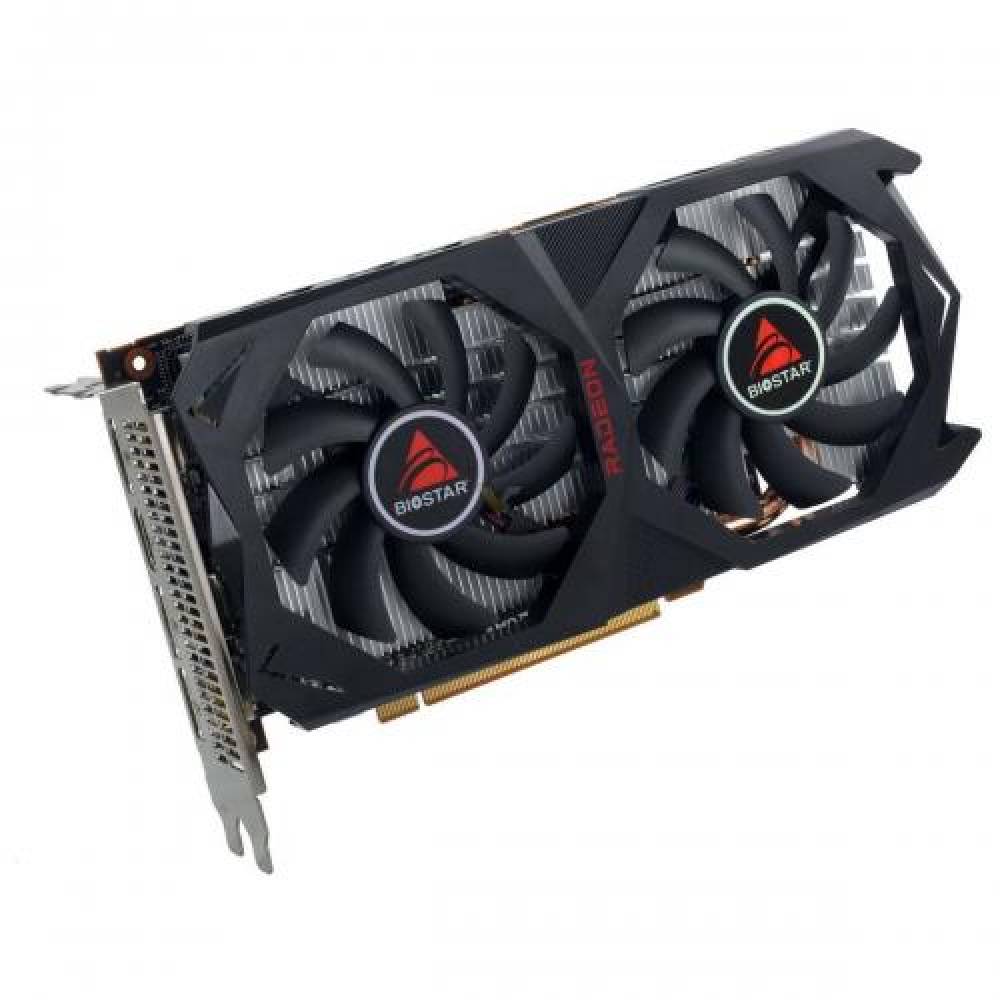

Placa video Biostar AMD Radeon RX6600XT 8GB 128bit, memorie: 8GB GDDR6, frecventa memorie: 16Gbps, procesor grafic: Radeon RX6600XT, frecventa procesor grafic: 1968/2359/2589MHz, 128bit, interfata: PCI Express 4.0 (compatibila cu PCI Express 4.0 x16), AMD RDNA2 Architecture, AMD FreeSync Technology, AMD FidelityFX, Radeon™ VR Ready Premium, Radeon Image Sharpenling, Radeon Anti-Lag, DirectX® 12 and Vulkan support, alimentare: 1x 6+2pin si 1x 6pin, conectori iesire: 3x DP / 1x HDMI
Alte caracteristici
| Alimentare separata | 1x 6-pin PCI-E, 1x 8-pin PCI-E |
| Backplate | Da |
| HDCP Ready | Da |
| Suport FreeSync | Da |
| Suport Vulkan | Da |
| Tehnologii | AMD RDNA™ 2 Architecture DirectX® 12 Ultimate Hardware Raytracing 7nm GPU GDDR6 Memory PCI® Express 4.0 Support AMD FreeSync™ Technology DisplayPort™ 1.4 with DSC HDMI™ 2.1 VRR Video Streaming up to 8K Radeon™ VR Ready Premium AMD FidelityFX Radeon™ Image Sharpening Radeon™ Anti-Lag Radeon™ Software Game Driver Optimizations |
| Versiune DirectX | 12 Ultimate |
| Versiune OpenCL | 2.1 |
| Versiune OpenGL | 4.6 |
| VR Ready | Da |
Conectori
| Display Port | 3 |
| HDMI | 1 |
General
| Interfata grafica | PCI Express x8 4.0 |
| Model | Radeon RX 6600 XT |
| Producator chipset grafic | AMD |
| Recomandat Gaming | Da |
| Rezolutie maxima suportata | 7680 x 4320 pixeli |
| Serie | Radeon RX 6000 |
Memorie
| Bus memorie | 128 bit |
| Capacitate memorie | 8 GB |
| Frecventa memorie | 16000 MHz |
| Latime de banda memorie | 256 GB/sec |
| Tip memorie | GDDR6 |
Procesor
| Data lansarii chipset | 30.07.2021 |
| Frecventa procesor grafic | 1968 MHz |
| GPU Boost clock | 2589 MHz |
| Numar tranzistoare | 11060 milioane |
| Pixel Fill Rate | 165700 GPixel/s |
| Procesoare Stream | 2048 |
| Raster Operators | 64 |
| Serie Procesor grafic | Navi 23 |
| Tehnologie | 7 nm |
| Texture Fill Rate | 331400 MTexels/sec |
| Texture Units | 128 |
| Versiune Pixel Shader | 6.5 |
| Versiune Vertex Shader | 6.5 |
Sistem racire
| Dimensiune racire | Tri slot |
| Sistem de racire | Activ |
| Tip racire | Aer |
