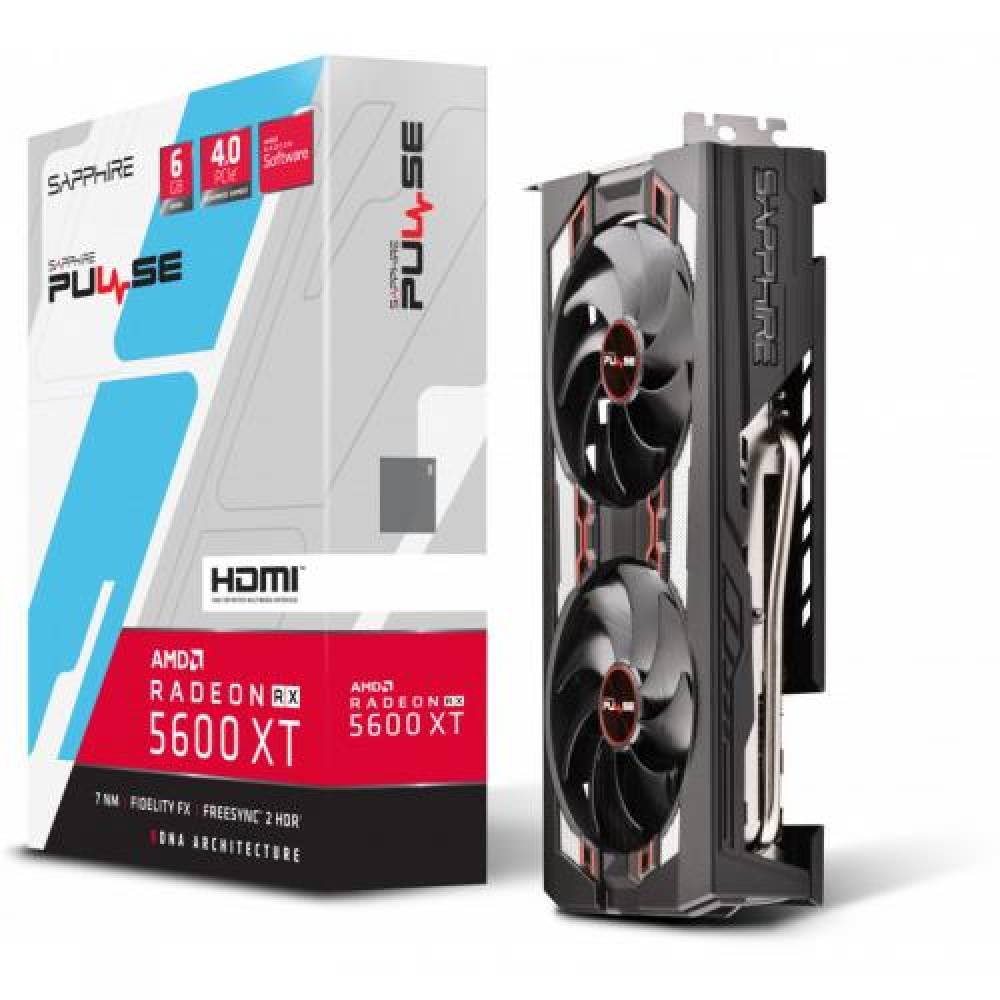

VGA SAPPHIRE RADEON PULSE RX 5600 XT 6G 11296-01-20G
Alte caracteristici
| Alimentare separata | 1x 8-pin PCI-E |
| Backplate | Da |
| Dimensiuni | 254 x 135 x 46.5 mm |
| HDCP Ready | Da |
| RAMDAC | 400 MHz |
| Suport FreeSync | Da |
| Suport Vulkan | Da |
| Tehnologii | RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium |
| Versiune DirectX | 12.1 |
| Versiune OpenCL | 2.0 |
| Versiune OpenGL | 4.5 |
| VR Ready | Da |
Conectori
| Display Port | 3 |
| HDMI | 1 |
General
| Editie/Racire | PULSE |
| Interfata grafica | PCI Express x16 4.0 |
| Model | Radeon RX 5600 XT |
| Producator chipset grafic | AMD |
| Recomandat Gaming | Da |
| Rezolutie maxima suportata | 5120x2880 pixeli |
| Serie | Radeon RX 5600 |
Memorie
| Bus memorie | 192 bit |
| Capacitate memorie | 6 GB |
| Frecventa memorie | 12000 MHz |
| Tip memorie | GDDR6 |
Procesor
| Data lansarii chipset | 21.01.2020 |
| GPU Boost clock | 1560 MHz |
| Pixel Fill Rate | 112000 MPixels/sec |
| Procesoare Stream | 2304 |
| Raster Operators | 64 |
| Serie Procesor grafic | Navi 10 |
| Tehnologie | 7 nm |
| Texture Fill Rate | 252000 MTexels/sec |
| Texture Units | 144 |
| Versiune Pixel Shader | 5.0 |
| Versiune Vertex Shader | 5.0 |
Sistem racire
| Dimensiune racire | Dual slot |
| Sistem de racire | Activ |
| Tip racire | Aer |
