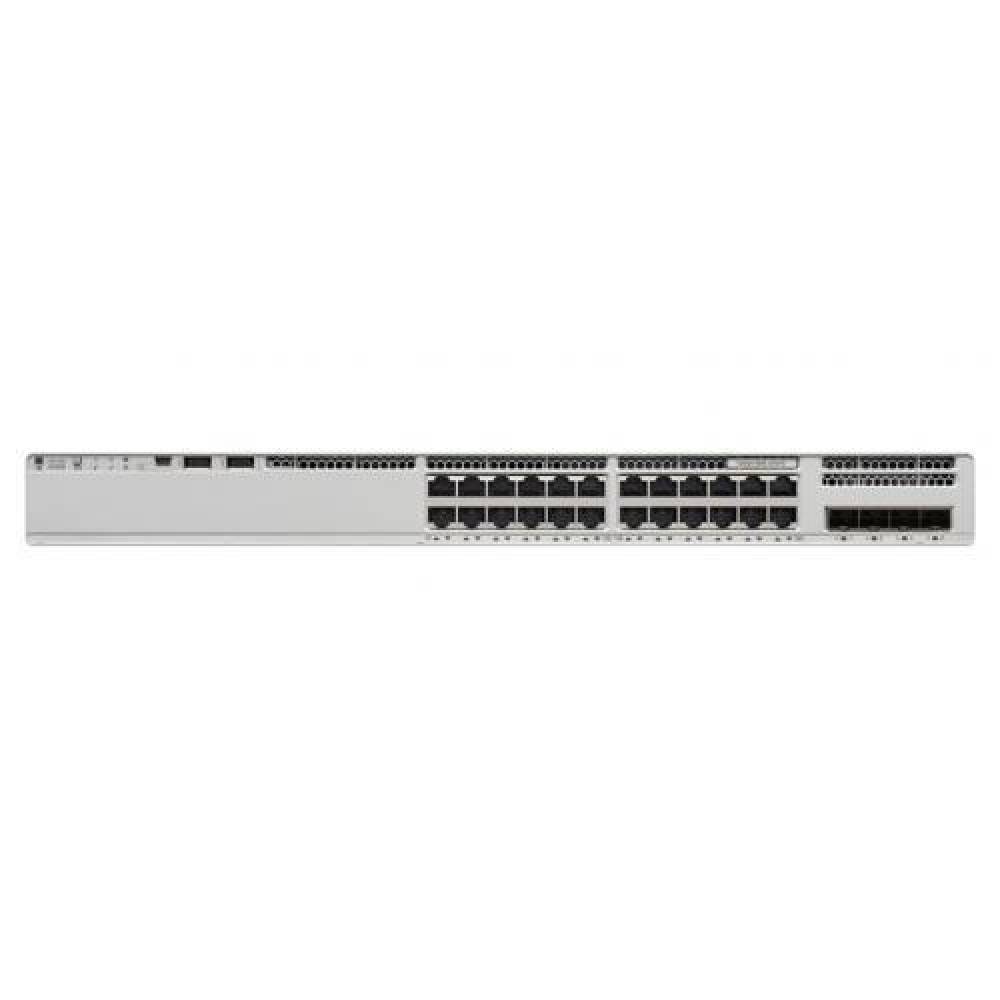

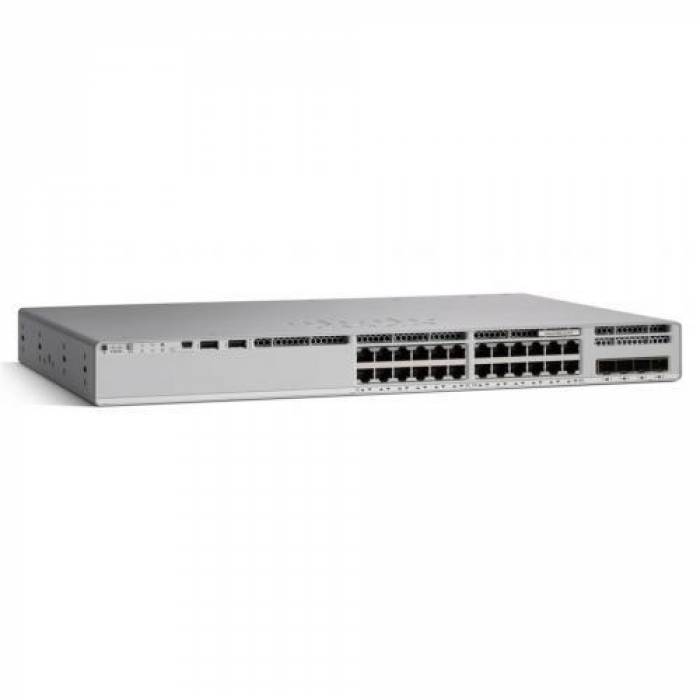

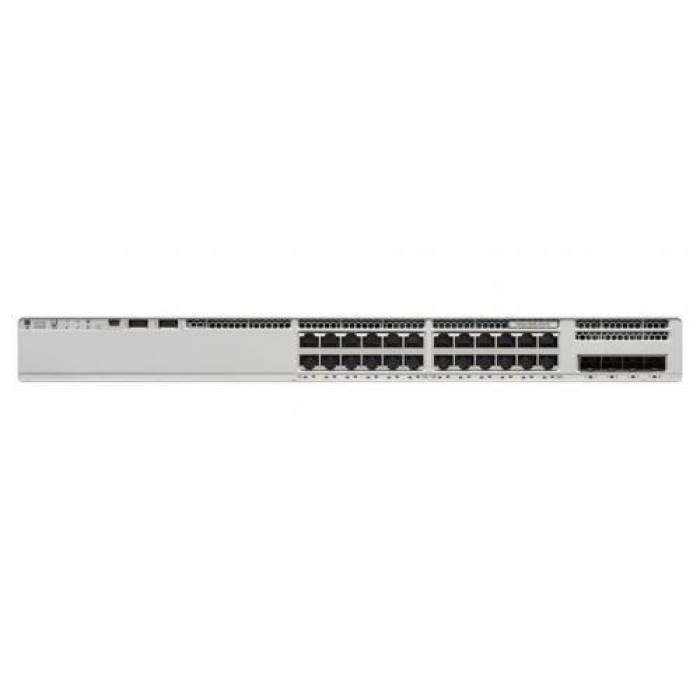

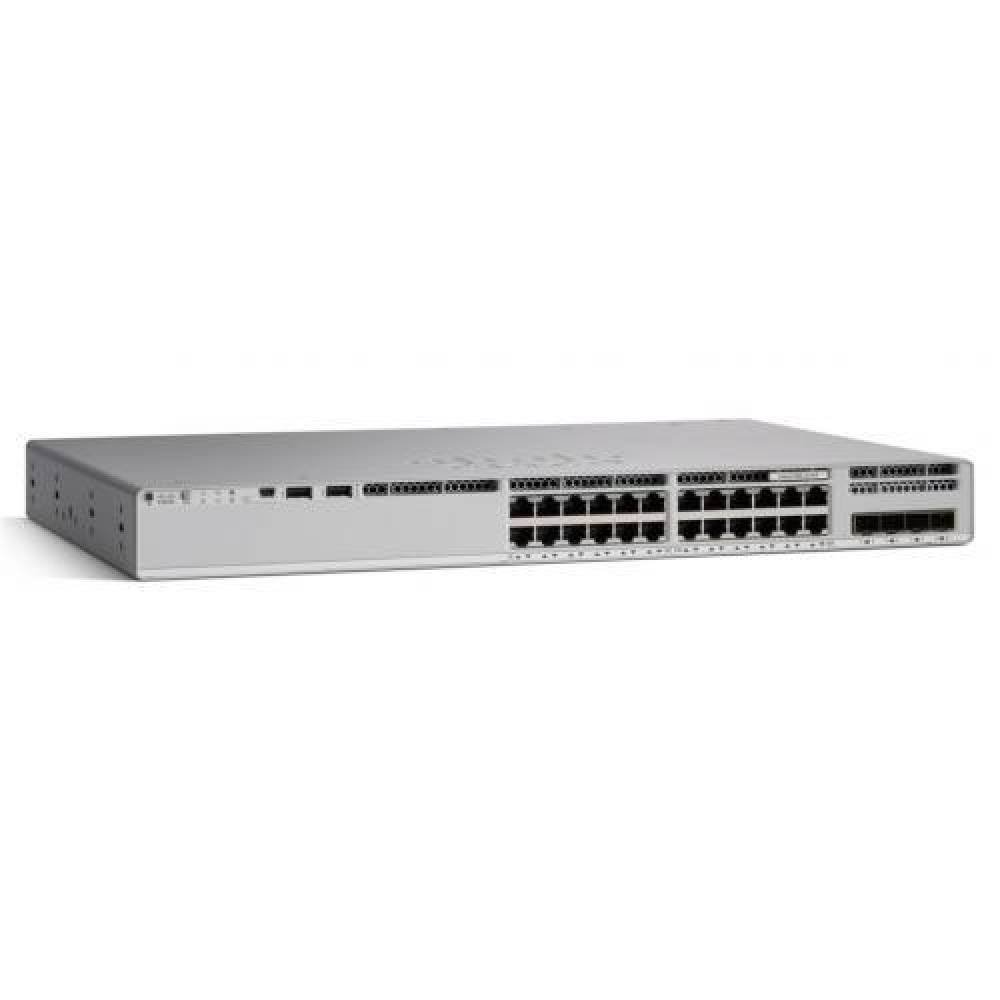

CATALYST 9200 24-PORT DATA/ONLY NETWORK ADVANTAGE IN
Caracteristici generale
| Alimentare | Interna 125W, 100 - 240 VAC, 50/60 Hz |
| Dimensiuni | 445 x 44 x 350 mm |
| Greutate | 5 kg |
| Layer | Layer 3 |
| LED Indicators | Status |
| Management | Da |
| Memorie | 4 GB |
| Memorie Flash | 4 GB |
| Metoda forwarding | 190.4 Mpps |
| Montare in rack | Da, 1U |
| Numar Porturi | 24x RJ45 |
| Protocoale de rutare | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Rutare IP | IPv4: 14000 IPv6: 2000 |
| Securitate | 128-bit AES |
| Stackable | Da |
| Standarde | IEEE 802.3 IEEE 802.3u IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.1ab (LLDP) |
| Switch capacity | 128 Gbps |
| Tabela de adrese MAC | 32K |
| Tehnologie de cablare | 1000BASE-T |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 10/100/1000Mbps |
| VLANs | 4096 |
