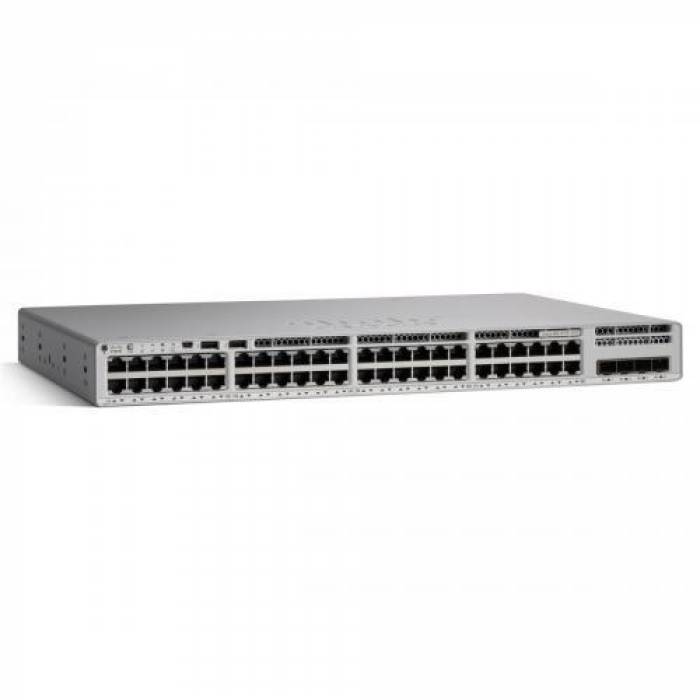

CATALYST 9200L 48-PORT PARTIAL/POE+ 4 X 10G NW ADVANTAGE IN
Caracteristici generale
| Alimentare | Interna, 100 - 230 VAC, 50/60 Hz |
| Altele | Pentru functionare necesita Licenta DNA Advantage |
| Dimensiuni | 445 x 44 x 329 mm |
| Greutate | 6.8 kg |
| Layer | Layer 3 |
| LED Indicators | Status |
| Management | Nu |
| Memorie | 2 GB |
| Memorie Flash | 4 GB |
| Metoda forwarding | 130.95 Mpps 190 Mpps cu Stacking |
| Montare in rack | Da, 1U |
| Numar Porturi | 48x RJ45 4x 10G SFP (uplink) |
| PoE | PoE+ |
| PoE Budget | 370 W |
| Protocoale de rutare | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Putere consumata (W) | 600 W |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Rutare IP | IPv4: 11000 IPv6: 1500 |
| Securitate | 128-bit AES |
| Stackable | Da |
| Standarde | IEEE 802.3 IEEE 802.3u IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s |
| Switch capacity | 176 Gbps 256 Gbps cu Stacking |
| Tabela de adrese MAC | 16K |
| Tehnologie de cablare | 1000BASE-T 10GBASE-X SFP |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 10/100/1000Mbps |
| VLANs | 1024 |
