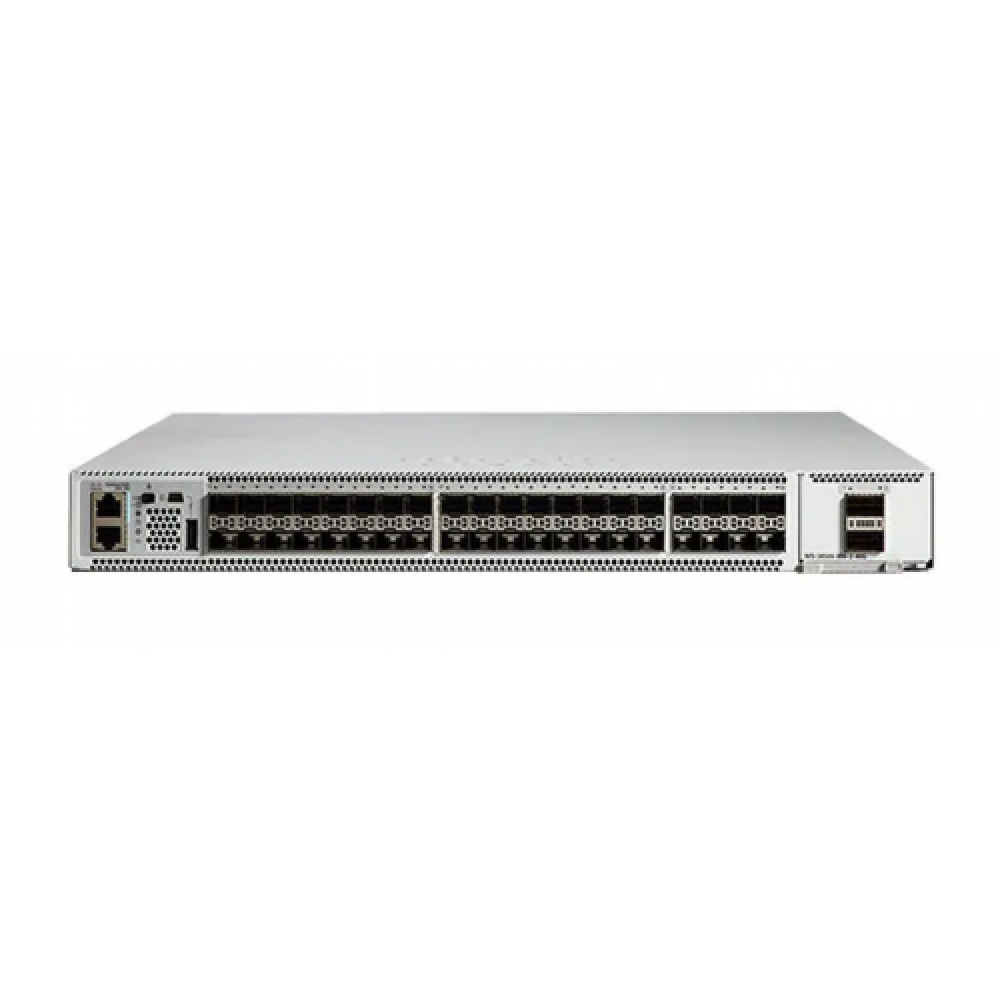

CATALYST 9500 40 X 10G, 2 X 40G/BUNDLE NETWORK ADVANTAGE IN
Caracteristici generale
| Alimentare | Interna 950W, 120 - 230 VAC, 50/60 Hz |
| Conectivitate | 2x USB 3.0 |
| Continut pachet | Include Network Advantage License |
| Dimensiuni | 445 x 547 x 43.9 mm |
| Greutate | 11.68 kg |
| Layer | Layer 3 |
| Management | Da |
| Memorie | 16 GB |
| Memorie Flash | 16 GB |
| Metoda forwarding | 720 Mpps |
| Module slot | Modul C9500-NM-2Q pentru porturi uplink |
| Montare in rack | Da, 1U |
| Numar Porturi | 40x SFP+ 2x QSFP |
| Procesor | Quad-Core 2.4-GHz x86 CPU |
| Protocoale de rutare | OSPF, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, PIM-SSM, RIPng, MPLS |
| Putere consumata (W) | 850 W |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Routing/Switch capacity | 960 Gbps |
| Rutare IP | IPv4: 64000 IPv6: 32000 |
| Securitate | 256-bit AES |
| Sistem de operare | Cisco IOS XE 16.8.1 |
| Stackable | Nu |
| Standarde | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.3ae IEEE 802.1s IEEE 802.1ae |
| Tabela de adrese MAC | 64k |
| Tehnologie de cablare | 10GBASE-X SFP+ 40G QSFP |
| Tip Switch | Retea Fibra Optica |
| Viteza Transfer LAN | 1000/10000 Mbps |
| VLANs | 4000 |
