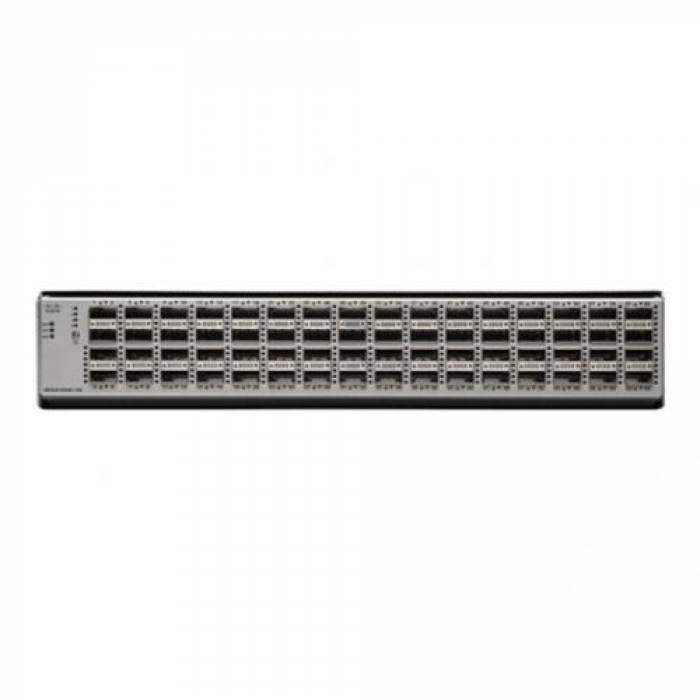

NEXUS 9K ACI NX-OS LEAF/SPINE/64P 40/100G QSFP28
Caracteristici generale
| Alimentare | 100 - 277 VAC, 50/60 Hz |
| Caracteristici speciale | Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, RDMA support, Data Center Bridging (DCB), MACsec support, breakout capability, VXLAN tunnel endpoints (VTEP) support, Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), Power On Auto Provisioning (POAP), Switched Port Analyzer (SPAN), 80MB system buffer |
| Conectivitate | 1x USB 2.0 1x RS-232 1x RJ45 1x SFP |
| Dimensiuni | 8.61x 44.23 x 57.4 cm |
| Management | Da |
| Memorie | 32 GB |
| Memorie Buffer | 80 MB |
| Memorie Flash | 128 GB SSD |
| Montare in rack | Da |
| Nivel zgomot | 77.3 dBA @ 50% viteza ventilator 95.8 dBA @ 100% viteza ventilator |
| Numar Porturi | 64x QSFP28 |
| PoE | Nu |
| Procesor | Quad-Core |
| Protocoale de rutare | OSPF, RIP-2, BGP, EIGRP, PIM-SM, MSDP, ECMP, RSVP |
| Putere consumata (W) | 811 (tipic) 1622 W (maximum) |
| Remote Management Protocol | HTTP, HTTPS, CLI, NETCONF, RESTCONF, IPv6 |
| Rutare IP | IPv4: 896000 |
| Tabela de adrese MAC | 256K |
| Tehnologie de cablare | 40/100G QSFP28 |
| Tip Switch | Retea Fibra Optica |
| Viteza Transfer LAN | 100/40Gbps |
| VLANs | 3967 |
