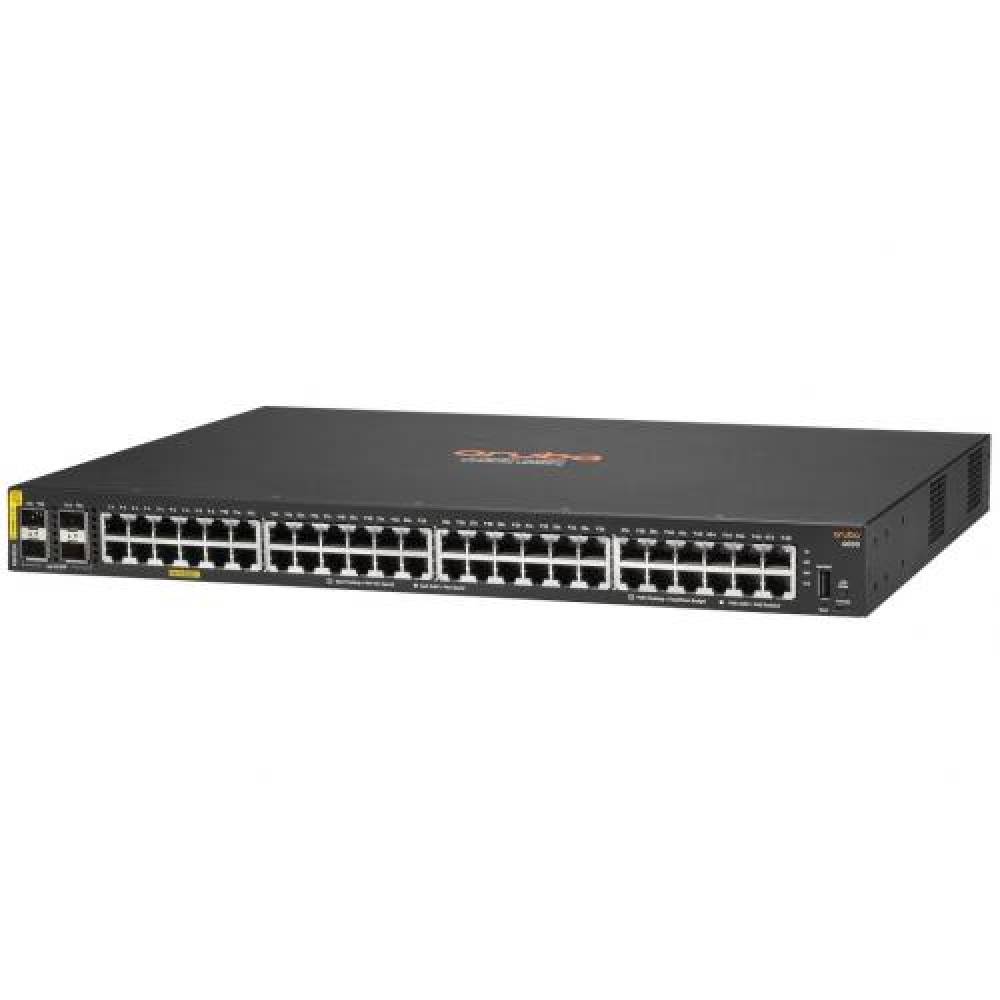

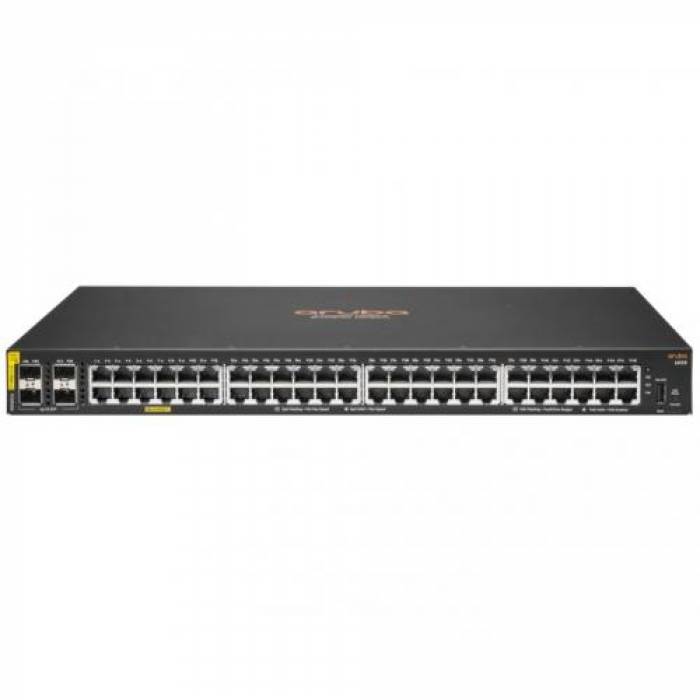

ARUBA 6000 48G CL4 4SFP SWCH R8N85A
Caracteristici generale
| Buffer | 12.38MB |
| Conectivitate | 1x USB-C Console Port 1x USB Type-A Host port |
| Conectori | 1x USB Tip C (console) 1x USB Tip A (host) |
| Dimensiuni | 44 x 442 x 304.8 mm |
| Greutate | 5.02 kg |
| Layer | Layer 3 |
| Management | Da |
| Memorie | 4 GB DDR3 |
| Memorie Flash | 16 GB eMMC |
| Metoda forwarding | 77.3 Mpps |
| Montare in rack | Da, 1U |
| Nivel zgomot | 29.8 dBA |
| Numar Porturi | 48x RJ45 4x SFP+ (uplink) |
| PoE | Da |
| PoE Budget | 370W |
| Procesor | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Putere consumata (W) | Max cu PoE: 480W Max Fara PoE: 45W Idle: 30.6W |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Rutare IP | IPv4: 1024 IPv6: 512 |
| Securitate | SSL, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Standarde | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Switch capacity | 104 Gbps |
| Tabela de adrese MAC | 8K |
| Tehnologie de cablare | Base-T RJ45 Base-X SFP |
| Tensiune de intrare | 100-127 VAC / 200-240 VAC |
| Tip Switch | Retea RJ45 |
| Viteza Transfer LAN | 10/100/1000 Mbps 1000/10000 Mbps (uplink) |
